In the field of electronic engineering, Zener diodes play a critical role as key components in circuits, directly impacting the stability and reliability of entire systems. Today, we delve into a highly regarded Zener diode, the BZT52B15BS, known for its precise voltage regulation, excellent accuracy, efficient power handling capabilities, and extremely low reverse current, all of which have endeared it to numerous engineers.

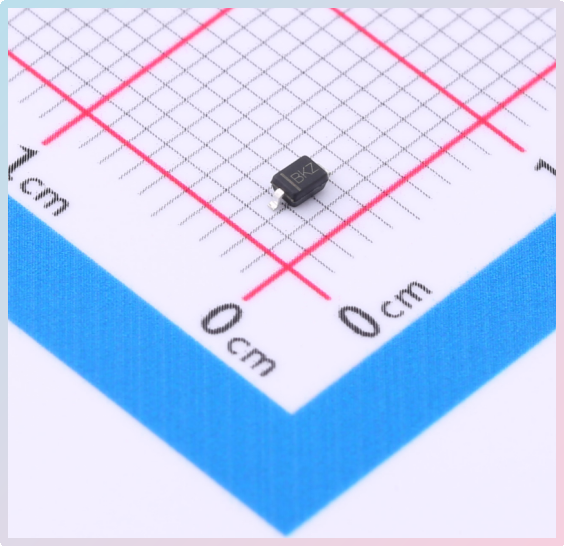

Slkor Voltage Regulator Diode BZT52B15BS product photo

Voltage Regulation: Precision Stability for Diverse Needs

The BZT52B15BS Zener diode features a nominal voltage regulation of 15V, a value commonly used in circuit design scenarios requiring stable voltage outputs. Its regulation range is finely tuned between 14.7V to 15.3V, ensuring high-precision voltage control that stabilizes circuit performance across various operating conditions, thereby enhancing overall system stability.

Accuracy: Strict Control with ±5%, Pursuing Exceptional Quality

In precision electronic devices, the accuracy of every component is crucial. The BZT52B15BS Zener diode adheres to a strict ±5% accuracy standard, reflecting a commitment to superior quality. This level of precision guarantees stable and reliable voltage output even amidst significant voltage fluctuations, effectively reducing the risk of circuit failures due to unstable voltages.

Slkor Voltage Regulator Diode BZT52B15BS specification

Power Handling: Efficient Capability up to 400mW, Suitable for Diverse Loads

Power handling is a critical performance metric for Zener diodes. The BZT52B15BS boasts a power handling capability of 400mW, effortlessly accommodating various load demands. Whether for low-power portable devices or high-load industrial equipment, this Zener diode ensures stable voltage output, enabling normal circuit operation across different applications.

Reverse Current: Ultra-Low at 0.1μA, Enhancing Energy Efficiency

Reverse current is another key parameter that gauges Zener diode performance. The BZT52B15BS exhibits an impressively low reverse current of just 0.1μA under reverse bias conditions. This ultra-low level effectively minimizes wasted power in circuits, thereby improving overall energy utilization efficiency. This feature is particularly attractive for electronic devices striving for high efficiency and energy savings.

Parameters of Slkor Voltage Regulator Diode BZT52B15BS

Performance Comparison with Other Similar Products

In the market for Zener diodes, the BZT52B15BS has garnered attention for its outstanding performance. To comprehensively understand its advantages, we conducted a performance comparison with several other similar Zener diodes available in the market. The comparison focused on key metrics such as voltage regulation, accuracy, power handling, and reverse current.

Voltage Regulation Comparison:

The BZT52B15BS maintains a nominal voltage of 15V, with a regulation range from 14.7V to 15.3V. In contrast, some other brands' 15V Zener diodes may have a wider regulation range, for instance, from 11.5V to 12.5V. The narrower regulation range of the BZT52B15BS indicates higher precision, better suited for precise circuit requirements.

Accuracy Comparison:

The BZT52B15BS achieves ±5% accuracy, while some other similar products may only reach ±10% or larger ranges. This high level of accuracy gives the BZT52B15BS a significant advantage in demanding circuit designs.

Power Handling Comparison:

With a power handling capacity of 400mW, the BZT52B15BS stands out among its peers. Compared to some models with lower power ratings, such as 200mW products, the BZT52B15BS can handle higher load demands and provide more stable voltage output.

Reverse Current Comparison:

The BZT52B15BS demonstrates superior performance with a reverse current of only 0.1μA. In comparison, other similar products may exhibit higher reverse currents. The low reverse current of the BZT52B15BS helps reduce unnecessary power consumption, thereby enhancing overall energy efficiency.

In conclusion, the BZT52B15BS Zener diode excels in precision, reliability, and efficiency, making it an ideal choice for applications requiring stable voltage regulation and high performance across various electronic devices and systems.
