In electronic circuit design, overload protection is a crucial link. When the current or voltage in the circuit exceeds its rated value, without proper protection measures, it may lead to serious consequences such as equipment damage, performance degradation, or even fire hazards. The voltage regulator diode MMSZ5258B, as a commonly used electronic component, plays an important role in overload protection. This article will explore the application and importance of the voltage regulator diode MMSZ5258B in overload protection.

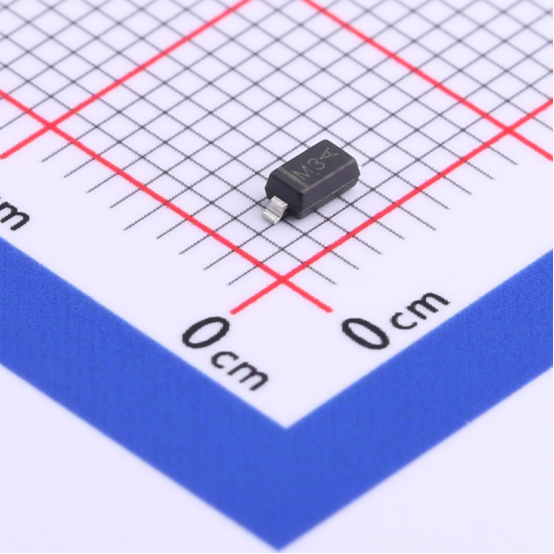

Slkor Voltage Regulator Diode MMSZ5258B product photo

I. Basic Parameters of Voltage Regulator Diode MMSZ5258B

The voltage regulator diode MMSZ5258B has a series of excellent performance parameters. Firstly, its nominal regulated value is 36V, which means that under normal working conditions, the diode can provide a stable output voltage of 36V. Secondly, it has an accuracy of up to ±5%, meaning that the deviation of the output voltage will not exceed ±1.8V, ensuring high precision and stability of the power supply output. In addition, the diode also has a power rating of 500mW and ultra-low reverse current (0.1nA@27V), demonstrating its outstanding performance.

Slkor Zener diode MMSZ5258B specification

II. Performance Analysis

High-precision regulation: The high precision of ±5% ensures that the output voltage remains relatively stable even in the presence of significant fluctuations in the power supply input. For circuits requiring high-precision voltage, MMSZ5258B is an ideal choice.

Low power consumption: With a reverse current of only 0.1nA at a reverse voltage of 27V, the diode consumes minimal current in standby or off states, helping to reduce the overall system's power consumption.

High reliability: Utilizing advanced semiconductor manufacturing technology, the MMSZ5258B exhibits high reliability and stability, maintaining excellent performance even during prolonged operation and in harsh environments.

Parameters of Slkor Zener diode MMSZ5258B

III. Basic Principle of Voltage Regulator Diode

A voltage regulator diode is a special type of diode that has a stable reverse breakdown voltage. When the reverse voltage reaches a specific value, the voltage regulator diode suddenly conducts, thereby limiting the voltage and current in the circuit. This characteristic enables the voltage regulator diode to stabilize the voltage and provide protection in the circuit.

IV. Application of Voltage Regulator Diode in Overload Protection

Voltage stabilization: In a circuit, when the power supply voltage fluctuates significantly, the voltage regulator diode can stabilize the output voltage within a certain range using its reverse breakdown voltage characteristic. This helps protect other components in the circuit from the effects of voltage fluctuations, ensuring stable operation of the circuit.

Current limitation: When the current in the circuit exceeds the rated value, the voltage regulator diode quickly conducts, diverting the excess current, effectively limiting the current in the circuit. This current-limiting function can prevent damage to circuit components due to overcurrent.

Overheat protection: When the voltage regulator diode conducts, it generates a certain amount of heat. If the current in the circuit is too high or the voltage is too high, the diode will quickly heat up and reach its thermal protection point, causing its resistance to sharply increase, thus limiting the current and providing overheat protection.

V. Importance of Voltage Regulator Diode in Overload Protection

Protection of circuit components: Through its voltage stabilization and current limitation functions, the voltage regulator diode effectively protects other components in the circuit from the influence of voltage and current fluctuations. This helps extend the service life of circuit components and improve the overall reliability of the circuit.

Enhancement of system stability: The voltage regulator diode can stabilize the voltage and current in the circuit, ensuring stable performance under various operating conditions. This contributes to improving the stability and reliability of the entire electronic system.

Prevention of fire and other safety incidents: Overload protection is one of the important measures to prevent safety incidents such as fires in electronic devices. As a key component of overload protection, the voltage regulator diode can effectively limit the current and voltage in the circuit, preventing safety incidents caused by overcurrent or overvoltage.
