【Daily Highlight】Application of the Zener Diode MM1Z5V1 in the Medical Field

release time:2024-12-07Author source:SlkorBrowse:1384

In the medical field, the stability and accuracy of equipment are crucial. In a busy hospital operating room, various sophisticated medical devices are running intensively, providing doctors with precise diagnostic data and treatment support. However, the voltage environment in the operating room can fluctuate due to various factors, which poses a potential threat to the normal operation of medical devices.



This is where the Zener diode MM1Z5V1 plays a key role. As a high-precision and stable voltage regulator, the MM1Z5V1 is cleverly integrated into the power regulation circuits of medical devices. Its precise voltage regulation capability ensures that medical equipment receives a stable voltage supply even in the face of voltage fluctuations.



1. Core Parameters Explained



Nominal Voltage (Regulation Value): 5.1V

The MM1Z5V1 is precisely set to a regulation value of 5.1V, providing a stable and reliable voltage reference for the circuit. This design allows the MM1Z5V1 to excel in circuits that require precise voltage control, ensuring stable circuit operation.

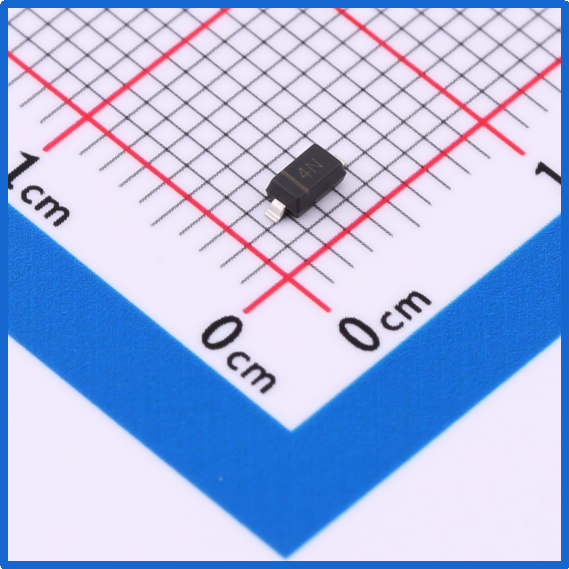

Slkor Voltage Regulator Diode MMBZ5243B product photo

Voltage Regulation Range: 4.8V - 5.4V

Within this fine voltage range, the MM1Z5V1 demonstrates its outstanding voltage regulation capabilities. No matter how the external voltage fluctuates, it quickly responds to stabilize the voltage between 4.8V and 5.4V, ensuring the safe operation of the circuit.

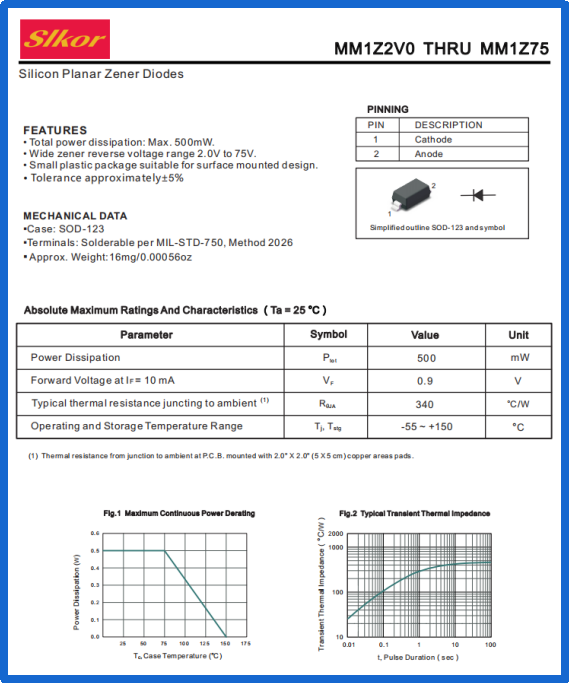

Slkor Voltage Regulator Diode MMBZ5243B specification

Power: 500mW

The MM1Z5V1 also impresses with its power rating of 500mW. This power level allows it to meet the needs of the circuit while maintaining a perfect balance between high efficiency and low power consumption. This design helps reduce the overall energy consumption of devices and extends their lifespan, offering a new perspective for the design of energy-efficient electronic products.

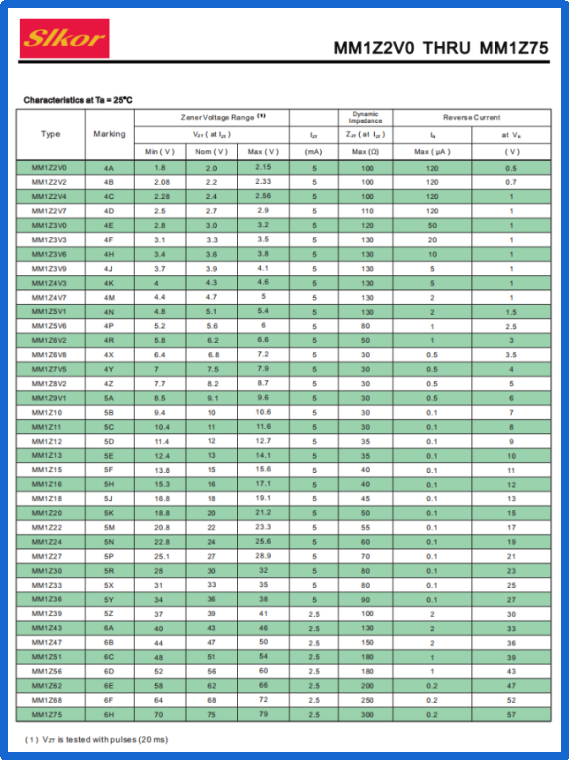

Parameters of Slkor Voltage Regulator Diode MMBZ5243B



Reverse Current (Ir): 2µA

In reverse breakdown conditions, the reverse current of the MM1Z5V1 is extremely low, only 2µA. This means it consumes almost no power, avoiding unnecessary energy loss and heat generation. This low reverse current characteristic makes the MM1Z5V1 excellent at protecting circuits from reverse voltage damage, adding another layer of protection for the safe operation of the circuit.



2. Performance Advantages



Precise Voltage Regulation, Protecting Circuit Stability

The MM1Z5V1’s precise and stable voltage regulation ensures effective stabilization of the circuit's voltage, preventing the impact of voltage fluctuations on circuit performance.



High Efficiency, Supporting Energy Conservation

It not only provides enough current to drive the equipment but also avoids unnecessary energy consumption, improving the overall efficiency of the circuit.



Low Reverse Current, Enhancing Circuit Reliability

During extended operation, the MM1Z5V1 maintains stable performance, prolonging its lifespan and ensuring the long-term reliability of the equipment.



In the operating room, for example, the MM1Z5V1 serves as a silent guardian in a sophisticated monitoring device. When the power supply voltage fluctuates, it responds quickly, stabilizing the voltage within a safe range, ensuring the proper functioning of the monitor. As a result, the data on the monitor remains accurate and stable, providing reliable diagnostic information for the doctor.



Moreover, the MM1Z5V1's low reverse current characteristic also demonstrates its advantage in this application. During long-term operation, the MM1Z5V1 consumes almost no energy, preventing unnecessary energy loss and heat buildup. This allows medical devices to maintain low temperatures and high efficiency, even after prolonged use, thereby extending their lifespan.



In the medical field, every moment counts. With its excellent parameters and features, the MM1Z5V1 provides stable and reliable voltage regulation for medical equipment, ensuring that devices perform optimally in complex medical environments. Its presence not only enhances the reliability and accuracy of medical equipment but also offers strong support for doctors' diagnostics and treatments. In the future, the MM1Z5V1 will continue to play a significant role in the medical field, contributing to the advancement of human health.
