release time:2024-10-14Author source:SlkorBrowse:3568
In today's electronic devices, Zener diodes play a crucial role as key protection components. Among them, the BZX584B18 Zener diode stands out in various applications due to its excellent performance and stability. This article will detail the main parameters and characteristics of the BZX584B18 Zener diode, as well as its advantages in electronic devices.
The BZX584B18 is a high-performance Zener diode designed to provide stable voltage output while withstanding high reverse voltage and current. Its advanced manufacturing process and compact packaging make it ideal for circuits requiring precise voltage control and protection.
Zener Voltage (Nominal): 18V
The BZX584B18 has a nominal Zener voltage of 18V, meaning it can maintain a stable output voltage of 18V under normal operating conditions. This characteristic makes it an ideal choice for circuits that require specific voltage outputs.
Zener Voltage (Range): 17.64V - 18.36V
In addition to the nominal value, the BZX584B18 has a tolerance range of 17.64V to 18.36V. This range ensures the diode's stability and reliability across different operating environments.

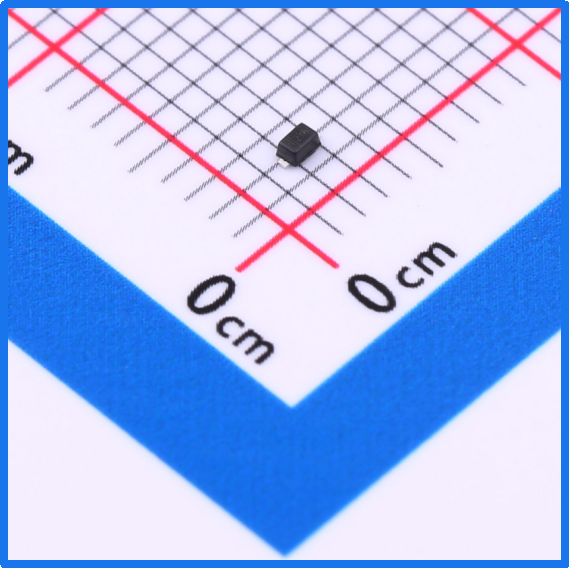

Slkor Voltage Regulator Diode MMBZ5243B product photo
Power Rating: 150mW
With a power rating of up to 150mW, the BZX584B18 can handle significant current and voltage without sustaining damage. This feature allows the diode to excel in circuits that require high power output.
Slkor Voltage Regulator Diode MMBZ5243B specification
Reverse Current (Ir): 0.1µA
The reverse current refers to the current flowing through the diode under reverse voltage. The BZX584B18 has a low reverse current of only 0.1µA, ensuring low power consumption and stability under reverse voltage conditions.
Parameters of Slkor Voltage Regulator Diode MMBZ5243B
High Stability:
The BZX584B18 offers excellent voltage stability, providing consistent output voltage under varying operating conditions. This feature makes it an ideal choice for circuits that require precise voltage control.
High Reliability:
This diode can withstand high reverse voltage and current while maintaining low power consumption and a long lifespan. As a result, the BZX584B18 performs exceptionally well in circuits that require long-term stable operation and reliable protection.
Wide Applicability:
The compact packaging of the BZX584B18 makes it easy to integrate into various electronic devices. Its high performance and stability also make it suitable for a multitude of applications, including communication devices, power management circuits, and computer motherboards.
As a voltage reference source, Zener diodes play an essential role in circuits. Their unique operating principles and stable voltage output characteristics make them indispensable components in analog circuits.
First, Zener diodes can output stable voltage values by precisely controlling the reverse breakdown characteristics of the PN junction under specific operating conditions. This stability allows Zener diodes to serve as voltage reference sources in circuits, providing accurate voltage references for other circuit components.
In analog circuits, voltage reference sources are among the key factors for ensuring precise operation. By combining with Zener diodes, it is possible to construct accurate voltage comparators or voltage regulators, enabling precise control of voltages within circuits. For example, in amplifier circuits, a Zener diode can act as a reference voltage source, ensuring the accuracy of the amplifier's output; in analog-to-digital converters (ADCs) or digital-to-analog converters (DACs), Zener diodes can serve as precise reference voltages to enhance conversion accuracy.
Additionally, Zener diodes possess advantages such as low noise and low temperature coefficient, meaning their output voltage is less affected by external interference and temperature changes, further enhancing their reliability in analog circuits.
In conclusion, Zener diodes, with their stable voltage output characteristics and precise control capabilities, play a vital role as voltage reference sources in analog circuits, ensuring accurate operation and stable performance.
