In modern electronic design, Zener diodes are crucial components for ensuring circuit stability due to their excellent voltage regulation capabilities. Today, we will delve into a highly regarded Zener diode—the MMBZ5243B—examining its key parameters and exploring how to leverage its performance advantages in real-world applications.

1. Zener Voltage: The Core of Precise Control

The MMBZ5243B Zener diode has a nominal Zener voltage set at 13V, meaning it can reliably maintain the voltage around 13V under normal operating conditions. Notably, its Zener voltage range is tightly controlled between 12.35V and 13.65V, demonstrating exceptional voltage regulation precision. This level of accuracy is crucial for electronic devices requiring stringent voltage stability, such as precision measurement instruments and communication equipment.

Slkor Voltage Regulator Diode MMBZ5243B product photo

2. Power and Efficiency: Compact Size, Powerful Performance

Despite its small size, the MMBZ5243B boasts a power rating of up to 350mW, showcasing impressive performance. High power capability means this Zener diode can operate reliably across a broad range of circuit environments, maintaining excellent voltage regulation even under high loads or transient voltage fluctuations. Additionally, its high efficiency helps reduce energy consumption and improve overall circuit performance.

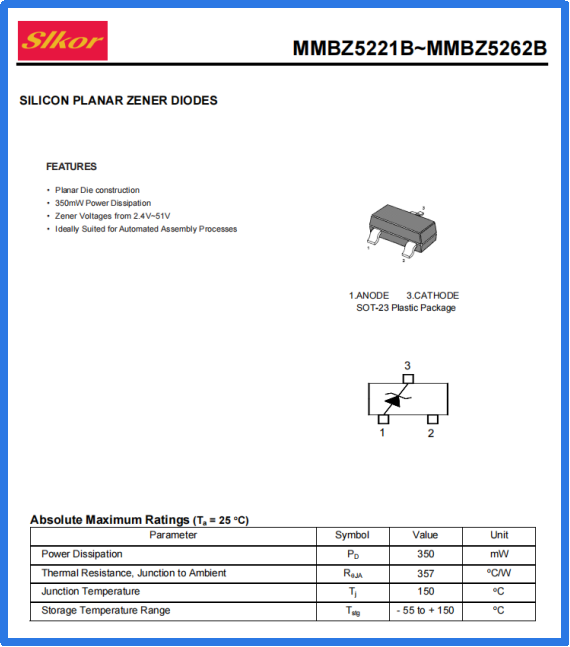

Slkor Voltage Regulator Diode MMBZ5243B specification

3. Reverse Current: Low Leakage, High Reliability

Reverse current (Ir) is an important indicator of a Zener diode’s performance. The MMBZ5243B features a reverse current of just 0.5µA, ensuring low power consumption and high stability in the circuit. Furthermore, its low reverse current contributes to the diode's extended lifespan, enhancing the reliability of the entire electronic system.

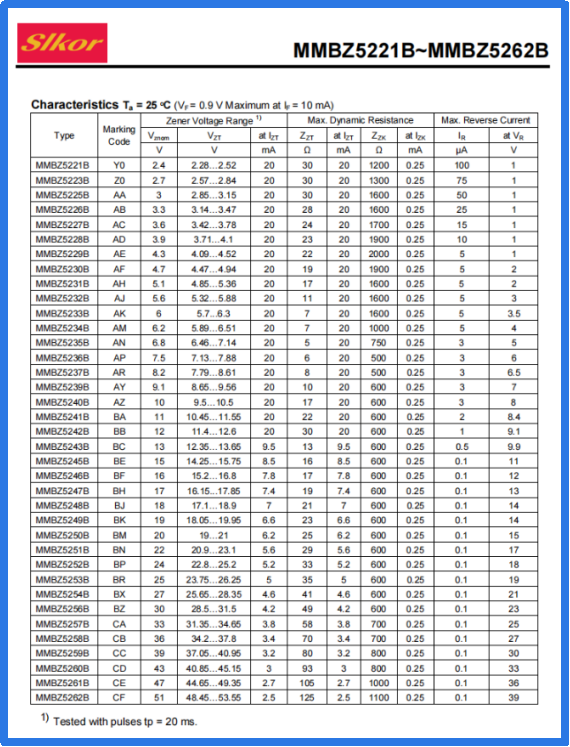

Parameters of Slkor Voltage Regulator Diode MMBZ5243B

4. Applications and Selection: Versatile Solutions for Diverse Needs

The MMBZ5243B Zener diode, with its outstanding performance, finds broad applications across various electronic devices. When selecting this diode, designers should consider the specific application scenario and circuit requirements, taking into account parameters like Zener voltage, power, and reverse current. For applications demanding high precision voltage regulation, the MMBZ5243B is an ideal choice; its high efficiency also shines in applications with strict power consumption requirements.

5. Examples of MMBZ5243B Zener Diode Applications in the Communications Industry

In the communications industry, Zener diodes play a critical role, especially in ensuring equipment stability and data transmission quality. The MMBZ5243B Zener diode, with its exceptional performance, is widely used in this field.

- Voltage Regulation in Wireless Communication Devices

In wireless communication devices such as smartphones, tablets, and wireless routers, stable voltage supply is crucial for maintaining signal transmission quality. The MMBZ5243B is commonly used in the power management sections of these devices to ensure that they maintain stable operating voltage even when battery levels fluctuate or when external power sources experience interference. This not only extends the device's lifespan but also significantly enhances wireless communication stability and reliability.

- Voltage Regulation in Fiber Optic Communication Equipment

In fiber optic communication systems, where data transmission speeds are extremely high, the demand for power stability is also very high. The MMBZ5243B, with its precise voltage regulation characteristics, is widely used in fiber optic transceivers and optical line terminals. It effectively suppresses power noise and interference, ensuring the stable operation of fiber optic communication equipment and thereby supporting high-speed data transmission quality and efficiency.

- Voltage Regulation in Networking Equipment

In networking equipment such as switches, routers, and servers, stable voltage supply is crucial for maintaining network connection stability and data transmission efficiency. The MMBZ5243B Zener diode plays an important role in the power sections of these devices, ensuring that they continue to operate normally even amidst power fluctuations or grid interference, thereby preserving the overall stability and reliability of the network.
