In today’s rapidly evolving electronics industry, Zener diodes play a crucial role in circuit protection. Their performance and stability directly impact the overall effectiveness of electronic devices. In this article, we will take a closer look at the MM1Z12B Zener diode, which has garnered attention for its exceptional voltage regulation, moderate power handling capacity, and extremely low reverse current characteristics, providing reliable protection for a wide range of electronic applications.

1. Product Overview

The MM1Z12B is a Zener diode designed specifically for high-voltage applications. With a nominal voltage of 12V, its regulation range is tightly controlled between 11.74V and 12.24V, ensuring precise and stable voltage output. This diode not only offers excellent voltage regulation but also maintains stable performance in complex and dynamic circuit environments, making it an ideal choice for high-voltage circuit protection.

2. Key Features

● Precise Voltage Regulation: The MM1Z12B features a narrow voltage regulation range of just 11.74V to 12.24V, making it ideal for circuits that require exact voltage control. This characteristic helps prevent voltage fluctuations that could negatively impact circuit performance.

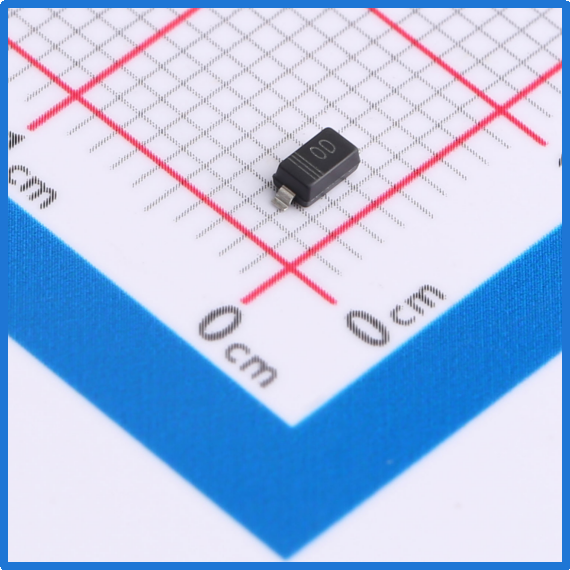

Slkor Voltage Regulator Diode MMBZ5243B product photo

● Moderate Power Handling: With a power handling capacity of 500mW, the MM1Z12B is suitable for medium-power applications. It provides sufficient current carrying capability while avoiding excessive power consumption and the associated heat management issues.

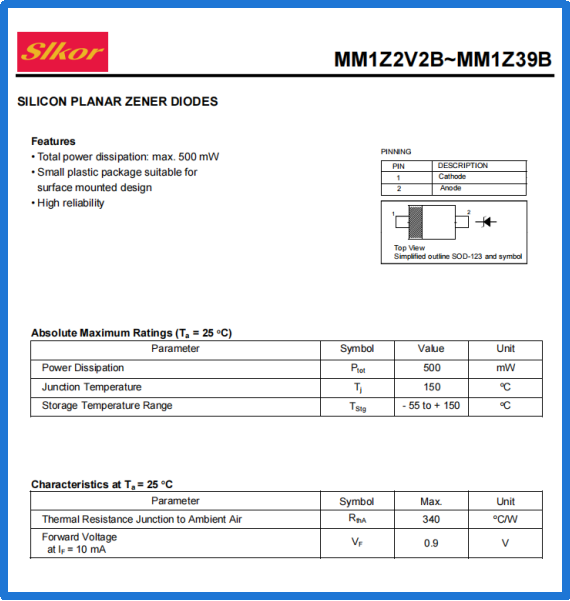

Slkor Voltage Regulator Diode MMBZ5243B specification

● Extremely Low Reverse Current: The reverse current is only 0.1µA, which is particularly important during circuit shutdown or reverse protection. This significantly reduces power loss and improves the overall efficiency of the circuit.

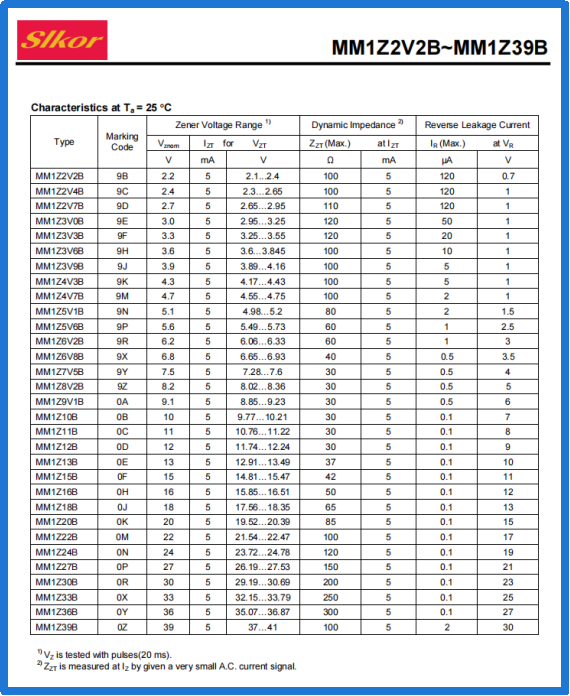

Parameters of Slkor Voltage Regulator Diode MMBZ5243B

3. Specific Requirements for Zener Diodes in Automotive Electronics

With the rapid advancement of automotive electronics, the demand for voltage stability in automotive systems is increasingly critical. Zener diodes, as indispensable components in electronic circuits, are now widely used in the automotive electronics sector. This section explores the specific performance, specifications, and reliability requirements for Zener diodes in automotive applications.

Performance Requirements

● Stable Voltage Output: Automotive electronic systems require consistent voltage output across various operational conditions to ensure proper functioning of the devices. Therefore, Zener diodes must demonstrate excellent voltage regulation, adjusting the output voltage quickly in response to fluctuations in the power supply, thus maintaining a stable voltage.

● Ability to Handle Large Current and Voltage Fluctuations: Automotive systems, including motors and batteries, generate significant current and voltage fluctuations during operation. Zener diodes must possess sufficient power handling capacity to withstand these fluctuations, ensuring the reliability and stability of the circuit system.

● Low Power Consumption: Reducing energy consumption is crucial for improving vehicle range and minimizing environmental impact. Zener diodes must exhibit extremely low reverse current characteristics to minimize unnecessary energy loss, thereby improving the overall system efficiency.

Specification Requirements

● Voltage Range: Automotive electronic systems have clear requirements for the voltage range of Zener diodes. Depending on the application, the Zener diode's voltage regulation should cover a wide range from several volts to tens of volts to meet the varying voltage demands of different electronic devices.

● Power Rating: The power rating of the Zener diode must match the power requirements of the automotive system. Zener diodes should be capable of handling power ratings from a few hundred milliwatts to several watts to accommodate diverse circuit protection needs.

● Package Type: The package type of Zener diodes also has specific requirements in the automotive electronics industry. To meet the needs of space efficiency, heat dissipation, and ease of installation, Zener diodes should adopt compact, high-heat-dissipation package types, such as SMD (Surface-Mounted Device) packages.

Reliability Requirements

● High Reliability: Automotive electronic systems demand extremely high reliability from components. Zener diodes must undergo rigorous quality control and reliability testing to ensure they can maintain stable and dependable performance even under harsh conditions.

● Long Lifespan: Automotive electronics are designed for long-term use, meaning Zener diodes must have a long lifespan to reduce maintenance and replacement costs over time.

● Temperature Resistance: Automotive systems generate significant heat during operation, raising the environmental temperature. Zener diodes need to exhibit good thermal adaptability, ensuring stable performance even in high-temperature environments.
