In the field of electronics, Zener diodes play a crucial role by providing stable voltage references for circuits, ensuring electronic devices operate reliably across various conditions. Today, we focus on the BZT52B6V2 Zener diode, favored by electronic engineers for its excellent voltage regulation performance and precise parameter control.

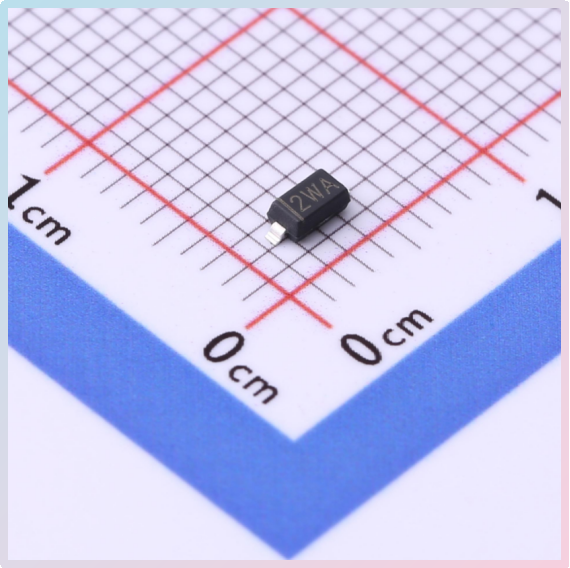

Slkor Voltage Regulator Diode BZT52B6V2 product photo

Advantages of the BZT52B6V2 Zener Diode

The BZT52B6V2 Zener diode has a nominal voltage regulation of 6.2V, a critical reference point in electronic design. Its voltage regulation range, tightly controlled between 6.08V to 6.32V, demonstrates exceptional precision. This high accuracy is crucial for circuits requiring precise voltage control, effectively preventing performance instability or damage due to voltage fluctuations.

Moreover, the BZT52B6V2 boasts an accuracy of ±5%, allowing engineers to predict and control circuit behavior with greater precision, thereby enhancing overall system reliability and performance. This high-precision Zener diode finds extensive application prospects in industrial automation, automotive electronics, aerospace, and other fields.

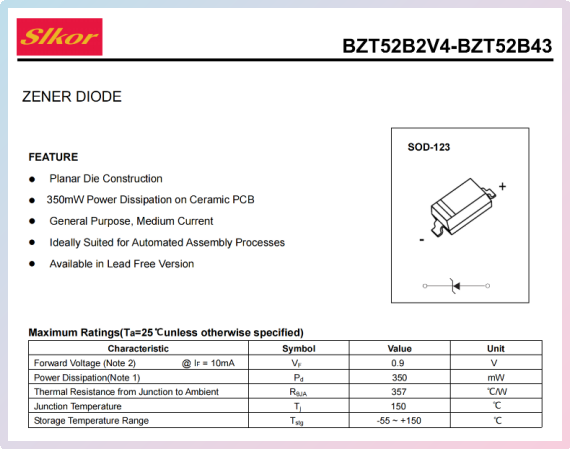

Slkor Voltage Regulator Diode BZT52B6V2 specification

In terms of power handling, the BZT52B6V2 provides a stable output power of 350mW, making it well-suited for circuits requiring moderate power output across various applications.

Notably, the BZT52B6V2 exhibits a reverse leakage current of only 3μA, contributing to lower energy consumption and improved circuit efficiency. This feature enhances the diode's competitiveness in today's environmentally conscious market, emphasizing energy efficiency.

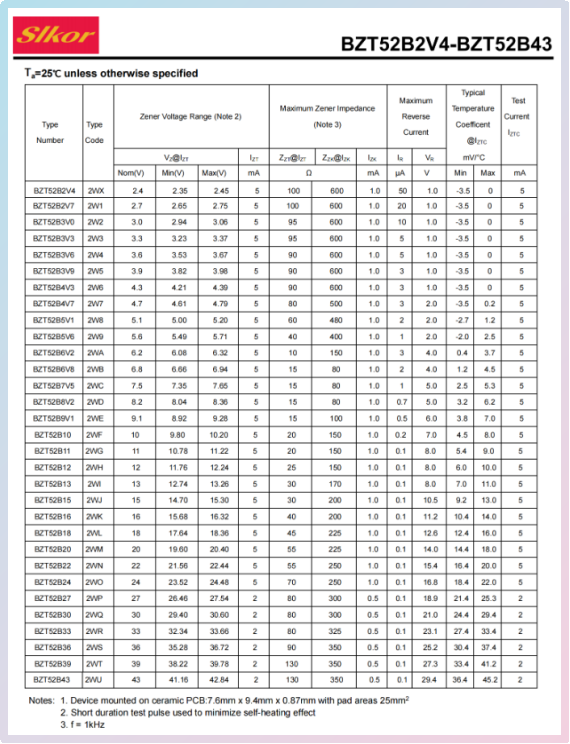

Parameters of Slkor Voltage Regulator Diode BZT52B6V2

Suggestions for Enhancing Circuit Efficiency with the BZT52B6V2 Zener Diode

When utilizing the BZT52B6V2 Zener diode to optimize circuit efficiency, consider the following recommendations:

Optimize Circuit Design:

Simplify circuit layout, reduce unnecessary components and connections to lower circuit complexity and power consumption.

Select Components Wisely:

Choose low-resistance, low-loss electronic components to minimize power loss during current transmission.

Match Components Appropriately:

Select passive components like capacitors and inductors based on actual requirements to optimize circuit response and stability. Ensure active components (e.g., transistors, ICs) are well-matched with the BZT52B6V2 to avoid performance bottlenecks.

Heat Management:

Provide adequate heat dissipation for the Zener diode with heat sinks or fans, ensuring effective cooling during high-load operation. Consider using thermal conductive materials to enhance heat dissipation efficiency and prevent performance degradation or damage from overheating.

Adjust Operating Points:

Fine-tune bias resistors and other parameters to operate the BZT52B6V2 at its optimal efficiency point. Monitor and optimize the circuit's operating conditions to ensure the Zener diode operates within its efficient range.

Utilize Low-Power Modes:

Design circuits to support low-power modes where feasible, reducing energy consumption during idle or light-load conditions. Implement intelligent control strategies to automatically switch to low-power states when full power operation is unnecessary.

Minimize Switching Losses:

Optimize switching frequency and duty cycle to reduce energy losses during switching processes. Choose components with fast switching characteristics to minimize energy consumption during switching times.

Perform Regular Maintenance and Inspection:

Regularly inspect circuit components for aging or damage, promptly replacing them to maintain circuit efficiency. Keep heat dissipation devices clean to ensure optimal heat dissipation performance.

By implementing these strategies, engineers can effectively enhance circuit efficiency when using the BZT52B6V2 Zener diode, ensuring reliable operation and maximizing performance across diverse applications.
