In the realm of semiconductor discrete devices, voltage regulator diodes provide stable and reliable operating voltages for various electronic equipment due to their unique voltage regulation characteristics. Today, we delve into the remarkable MMBZ5236B, which showcases broad application potential in consumer electronics with its excellent voltage regulation, power, and reverse current parameters.

1. Introduction to MMBZ5236B Voltage Regulator Diode

The MMBZ5236B is a voltage regulator diode with a nominal voltage of 7.5V, precisely controlled within a range of 7.13V to 7.88V. With a rated power of 350mW, this diode maintains stable performance across diverse working environments. Additionally, its reverse current (Ir) is just 3µA, effectively reducing power consumption and enhancing overall efficiency.

2. Feature Analysis

- Precise Voltage Regulation: The MMBZ5236B's voltage regulation range is meticulously designed to ensure stable voltage output under various operating conditions, crucial for electronic devices requiring precise voltage control.

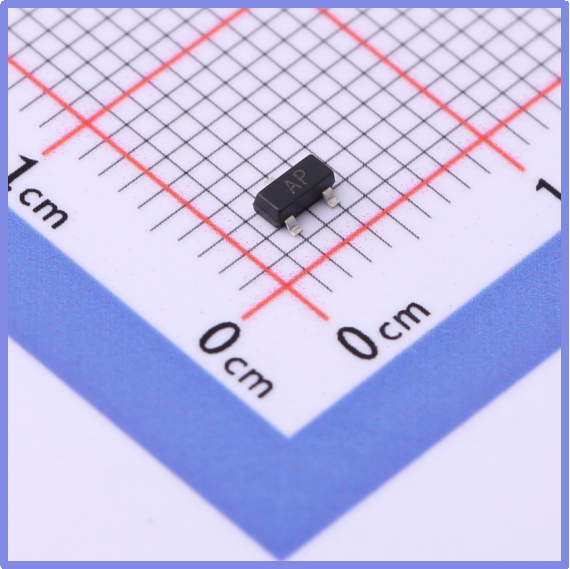

Slkor Voltage Regulator Diode MMBZ5236B product photo

- High Power Handling Capacity: With a rated power of 350mW, the MMBZ5236B can easily meet high power demands, ensuring stable device operation.

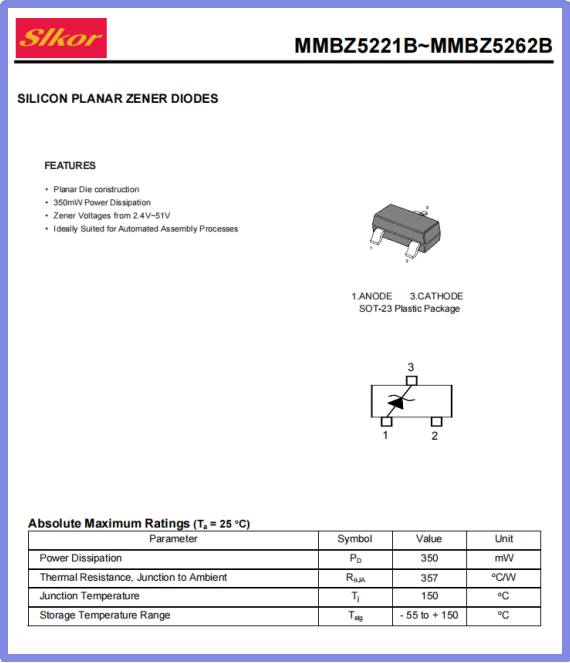

Slkor Voltage Regulator Diode MMBZ5236B specification

- Low Reverse Current: Its reverse current of 3µA demonstrates excellent power-saving performance, contributing to enhanced device endurance and overall performance.

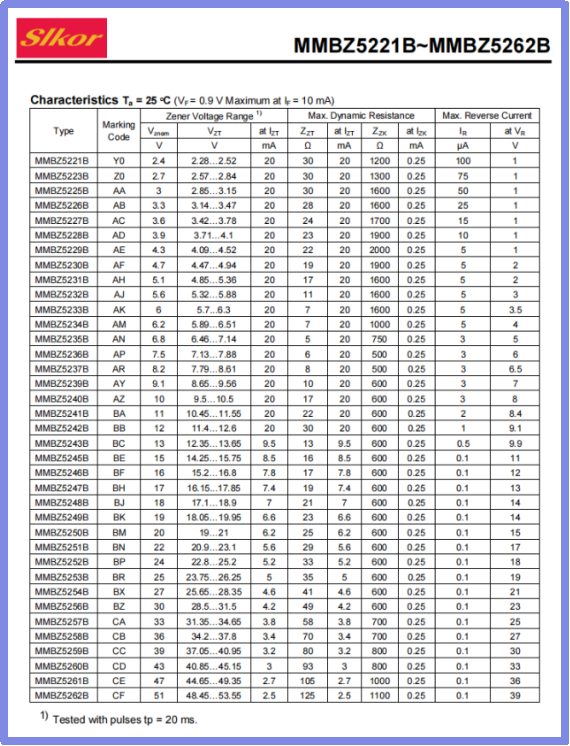

Parameters of Slkor Voltage Regulator Diode MMBZ5236B

3. Application Scenarios in Consumer Electronics

The MMBZ5236B has broad application prospects in consumer electronics. For instance, in portable devices like smartphones and tablets, stable voltage output is vital for normal operation. Its precise voltage regulation and high power handling make it an essential component in these devices. Moreover, it plays a significant role in various power management circuits, chargers, and LED lighting products.

4. Market Outlook

As the consumer electronics market continues to grow, the demand for voltage regulator diodes is also on the rise. The MMBZ5236B, with its outstanding performance, is set to occupy a key position in the future market. Its wide range of applications and excellent performance will attract attention and recognition from industry professionals.

5. Case Study: MMBZ5236B in Smartphones

With the proliferation of smartphones and their expanding functionalities, the demand for voltage regulation components within internal circuits is increasing. The MMBZ5236B plays a critical role in the power management circuits of smartphones. These circuits ensure stable power supply to various functional modules, and the MMBZ5236B is essential for maintaining consistent voltage, especially during battery fluctuations or unstable external power inputs.

Specifically, the MMBZ5236B is widely used in key areas such as charging circuits, processor power supply circuits, and screen backlight driver circuits. In charging circuits, it ensures voltage stability during charging, preventing inefficiencies or battery damage due to voltage fluctuations. In processor power circuits, stable voltage output is fundamental for high-performance operation, with the MMBZ5236B providing reliable power. In screen backlight driver circuits, it guarantees uniform brightness, enhancing user experience.

Additionally, the low reverse current characteristic of the MMBZ5236B provides significant advantages in smartphone applications, reducing power consumption in standby mode, extending battery life, and minimizing heat generation to improve overall performance and comfort.

In summary, the MMBZ5236B voltage regulator diode exemplifies exceptional performance in voltage regulation, power handling capacity, and low reverse current in smartphone applications. With ongoing advancements in smartphone technology and sustained market demand, the MMBZ5236B is poised to play an even greater role in this field.
