【Daily Highlight】1SMB5937B: High-Power Voltage Regulation Solution

release time:2024-06-04Author source:SlkorBrowse:5684

In the design of electronic devices, voltage regulator diodes play a crucial role. They provide stable voltage output in circuits, ensuring the normal operation of devices under various working conditions. Among numerous voltage regulator diodes, the 1SMB5937B stands out as an ideal choice for high-power voltage regulation solutions due to its unique performance parameters such as a 33V nominal voltage regulation value, 3W power handling capacity, and extremely low reverse current.

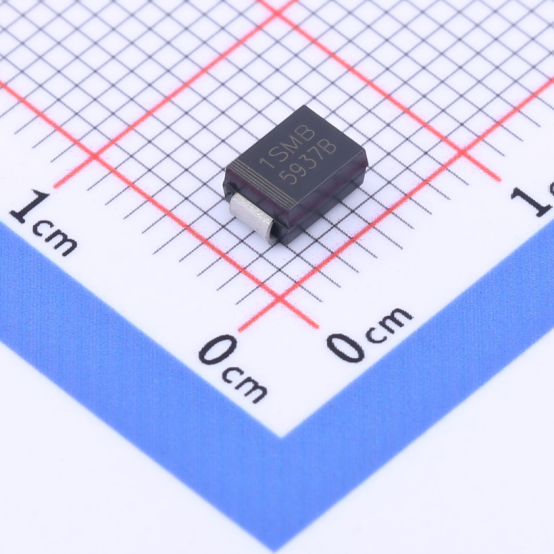

Slkor Voltage Regulator Diode 1SMA5937A product photo



Basic Parameters of 1SMB5937B

The 1SMB5937B voltage regulator diode features a nominal voltage regulation value of 33V, meaning it can provide a stable 33V voltage output in circuits. Additionally, the diode has a power handling capacity of 3W, allowing it to meet the demands of higher-power circuits. Furthermore, its reverse current is only 1μA at 25.1V, indicating extremely low power consumption under normal operating conditions, thereby reducing overall device energy consumption.



Slkor Voltage Regulator Diode 1SMA5937A specification



Advantages of 1SMB5937B

High Power Handling Capacity: With a 3W power handling capacity, the 1SMB5937B can accommodate a broader range of current requirements, ensuring circuit stability and reliability.

Low Reverse Current: Its reverse current is only 1μA at 25.1V, helping to reduce overall device energy consumption and heat generation, thereby improving device performance and longevity.

Stable Voltage Output: The 1SMB5937B features a nominal voltage regulation value of 33V, providing a stable voltage output in circuits, ensuring the normal operation of devices under various working conditions.


Parameters of Slkor Voltage Regulator Diode 1SMA5937A



The Reverse Connection Modes of Voltage Regulator Diodes in Circuits: Load Regulation and Power Supply Regulation



In electronic circuit design, voltage regulator diodes are indispensable components that provide stable voltage output in circuits, ensuring normal operation under various working conditions. The reverse connection modes of voltage regulator diodes are particularly important in circuit design, mainly divided into load regulation and power supply regulation.



Load Regulation

Load regulation is a common reverse connection mode of voltage regulator diodes, mainly used to protect load circuits from voltage fluctuations. In this connection mode, the negative terminal (cathode) of the voltage regulator diode is connected to the positive terminal of the load circuit, while the positive terminal (anode) is connected to the negative terminal or ground of the load circuit.



When the power supply voltage increases, the voltage at both ends of the load circuit also increases accordingly. Once this voltage exceeds the regulation value of the voltage regulator diode, the diode enters the breakdown state and starts to conduct. At this point, the voltage regulator diode absorbs the excess voltage and converts it into heat, thereby maintaining the voltage at both ends of the load circuit stable. In this way, load regulation can effectively protect the load circuit from damage caused by excessive voltage.



Power Supply Regulation

Power supply regulation is another reverse connection mode of voltage regulator diodes, mainly used to stabilize the output voltage of the power supply. In this connection mode, the negative terminal (cathode) of the voltage regulator diode is connected to the positive terminal of the power supply, while the positive terminal (anode) is connected to the negative terminal or ground of the power supply.



When the power supply voltage fluctuates, the voltage regulator diode responds quickly and adjusts its conduction state to maintain the stability of the power supply output voltage. When the power supply voltage increases, the voltage regulator diode enters the breakdown state, starts to conduct, and absorbs the excess voltage; when the power supply voltage decreases, the voltage regulator diode reduces its conduction level, reducing the voltage drop. In this way, power supply regulation can effectively stabilize the output voltage of the power supply, ensuring stable power supply for the circuit under various working conditions.


Comparison and Selection of Two Modes

Load regulation and power supply regulation have their own characteristics, and the choice depends on specific requirements in practical applications.



Load regulation mainly focuses on protecting load circuits and is suitable for occasions where the stability of load circuit voltage is required. It can effectively prevent damage to the load circuit caused by excessive voltage, improving the reliability and safety of the circuit. However, load regulation cannot directly control the output voltage of the power supply, only passively protecting the load circuit.



Power supply regulation pays more attention to the stability of power supply output voltage and is suitable for occasions where higher requirements are placed on the output voltage of the power supply. It can stabilize the power supply output voltage by actively adjusting the conduction state of the voltage regulator diode, ensuring stable power supply for the circuit under various working conditions. However, power supply regulation requires additional circuit design and debugging, with relatively higher costs.

About Slkor
Slkor has research and development offices in Busan, South Korea, Beijing, China, and Suzhou, China. Most of the wafer manufacturing and packaging and testing are carried out within China. The company employs and collaborates with individuals and organizations worldwide, with a laboratory for product performance and reliability testing and a central warehouse located at its headquarters in Shenzhen. Slkor has filed for over a hundred invention patents, offers more than 2,000 product models, and serves over ten thousand customers globally. Its products are exported to countries and regions including Europe, the Americas, Southeast Asia, and the Middle East, making it one of the rapidly growing semiconductor companies in recent years. With well-established management systems and streamlined workflows, Slkor has rapidly enhanced the brand awareness and reputation of its "SLKOR" brand through its outstanding quality and standardized services. Its product range includes three major series: diodes, transistors, and power devices, with recent introductions of new products such as Hall elements and analog devices, expanding its presence in sensors, Risc-v microcontrollers, and other product categories.
