release time:2024-03-29Author source:SlkorBrowse:6050
With the rapid advancement of technology, the application of power electronics is becoming increasingly widespread in various fields. Motor control is one of the important application areas of power electronics technology, with the goal of achieving high-precision control of parameters such as motor speed and torque. Medium-Voltage, as a power semiconductor device, plays a crucial role in motor control. Motor control refers to the manipulation of a motor's power supply and signal control to make it operate according to predetermined specifications. A motor, also known as an electric motor, is a device that converts electrical energy into mechanical energy. Its operation is primarily based on the interaction of current, magnetic fields, and force. By applying current, a motor can generate a rotating magnetic field, which is then converted into mechanical energy.
The application scope of motor controllers is extensive, including areas such as robotics, CNC machine tools, and electric vehicles. In these fields, motor controllers can achieve precise axial control and are characterized by high speed and reliability, thus they are widely used in various drive systems. This article will focus on the application of Medium-Voltage MOSFET in motor control and the performance improvements it brings. As an important power semiconductor device, Medium-Voltage MOSFET is characterized by high voltage endurance, low on-state resistance, fast switching speed, and excellent thermal stability. This makes Medium-Voltage MOSFET perform exceptionally well in high-voltage, high-current applications, especially in power electronic systems such as motor control.
The working principle of Medium-Voltage MOSFET is based on electric field regulation, controlling the conduction between the source and drain by varying the gate field. When a positive voltage is applied to the gate, the resulting electric field causes a change in the density of controlled charge carriers (electrons or holes) in the semiconductor, thereby regulating the conduction between the source and drain. This characteristic enables Medium-Voltage MOSFET to achieve efficient energy conversion and high-precision current control. Slkor has introduced a large number of superior semiconductor products, including high, medium, and low-voltage MOSFETs, thyristors, bridge rectifiers, and power management chips such as LDO, AC-DC, and ADC chip series.
Slkor Semiconductor silicon carbide field-effect transistor
Medium-Voltage MOSFET can enhance motor control performance in several ways. Firstly, it improves efficiency by having low on-state resistance and fast switching speed, which reduces energy losses during the conversion process and enhances system efficiency. Secondly, it enhances precision by enabling high-precision control of gate voltage, allowing Medium-Voltage MOSFET to achieve highly accurate regulation of motor current, thus improving speed and torque control precision. Additionally, it increases reliability as the thermal stability and voltage endurance of the field-effect transistor enable the system to operate stably in harsh working environments, thereby enhancing system reliability.
Slkor Medium Voltage MOSFET SL2328A product photo
The SL2328A is an N-channel MOSFET with a 100V drain-source voltage and 2A continuous drain current. It is renowned for its low on-state resistance (310mΩ @ 10V, 2A) and relatively low threshold voltage (3V @ 250uA). These features make the SL2328A an ideal switch and regulating component in motor control, especially in applications that require high efficiency and precision control.
Slkor Medium Voltage MOSFET SL2328A
The SL2328A incorporates advanced trench power Medium-Voltage technology, which optimizes the transistor structure of the MOSFET to achieve low on-state resistance and minimal switching losses simultaneously. This characteristic allows the Medium-Voltage to reduce energy losses during operation, thereby improving overall efficiency. Another notable feature of the SL2328A is its high-density battery design for RDS(ON). This design not only enhances the power density and efficiency of the MOSFET but also enables excellent performance in high-power, high-density applications such as electric vehicle motor drives and industrial automation equipment. The device's MSL Level 1 rating signifies its resistance to moisture and humidity, meeting first-level standards. Consideration for humidity's impact has been integrated into the design and manufacturing processes, with corresponding measures taken to ensure stable performance under various humidity conditions.

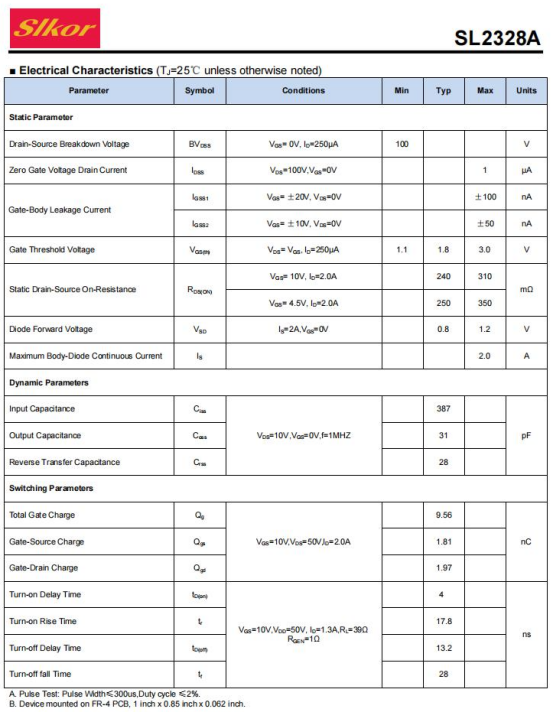

Parameters of Slkor Medium Voltage MOSFET SL2328A
Medium-voltage MOSFET, as an important component of power electronics technology, has a wide range of potential applications in areas such as motor control. With the continuous emergence of new materials and processes, its performance will be further enhanced, injecting new vitality into the development of power electronics technology.Firstly, this device can serve as a switching element for motor drive. By controlling the gate voltage, it can achieve high-precision control of motor current, thus enabling precise adjustment of motor speed and torque. In addition, the fast switching speed of the medium-voltage MOSFET allows the motor to respond rapidly to control signals, improving system dynamic performance. Secondly, it can also be used to construct power circuits for motor control. In power circuits, medium-voltage MOSFETs can be combined with other components (such as resistors, capacitors, transformers, etc.) to create various circuit topologies, achieving efficient driving and protection of the motor. For example, through proper circuit design, this product can be used to achieve functions such as soft start and overload protection for the motor, thereby enhancing system reliability and safety.
In the future, we can expect to see more innovative applications of medium-voltage MOSFETs in motor control. For example, by optimizing circuit design and improving control algorithms, motor control precision and efficiency can be further improved. Meanwhile, through integrated and modular design concepts, system structure can be simplified, manufacturing costs can be reduced, and the widespread application of motor control technology can be promoted. In conclusion, the combination of medium-voltage MOSFETs and motor control brings new opportunities and challenges to the development of power electronics technology. We have reason to believe that, through the continuous efforts of technologists, this field will achieve even more fruitful results.As a company focused on the field of power semiconductors, Slkor (www.slkoric.com) will continue to play an important role with its products including power devices, transistors, connectors, etc. They not only support the rapid development of contactless technology but also contribute to the construction of a more intelligent, convenient, and secure future life.
