In modern electronic systems, the signal isolation and transmission between circuits are crucial. To ensure the safety and reliability of the system, optocouplers are widely used as a common isolation device. The SL-1009 optocoupler is a high-performance optocoupler that is widely utilized for isolation and transmission in electronic systems.

SLKOR optocoupler SL-1009

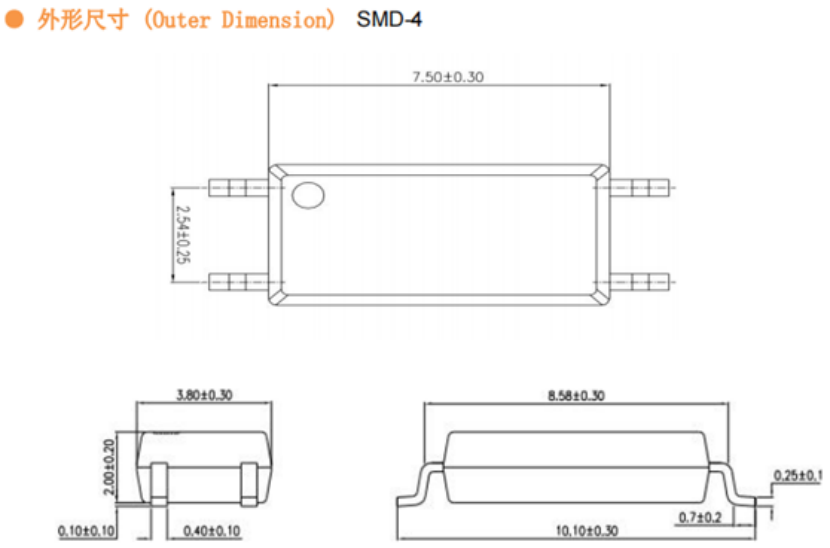

Firstly, the opto-transistor detector in SL-1009 does not contain halogens and Sb2O3, which is environmentally friendly and safer. In modern electronic devices, the demand for environmentally friendly and non-toxic materials is increasing. In this regard, SL-1009 meets these requirements very well. Secondly, this component adopts a 4-pin SOP package, which is small, compact, easy to install and layout. It is suitable for various circuit board designs and can perform well in limited space.

The main features of SL-1009 include: a high current transfer ratio (CTR) of up to 50% (when IF = 5mA, VCE = 5V, Ta-25°C), which means that it can provide higher photoelectric conversion efficiency; a high insulation voltage of up to 5000Vrms, which can effectively isolate input and output signals and ensure system safety; a high collector-emitter voltage (VCEO) of 70V, which enables SL-1009 to withstand higher power and voltage; a wide temperature range, which can operate normally in environments from -55°C to 110°C; a long creepage distance greater than 8mm, which provides better insulation performance. In addition, this component is also a lead-free product, compliant with RoHS standards, and meets environmental requirements.

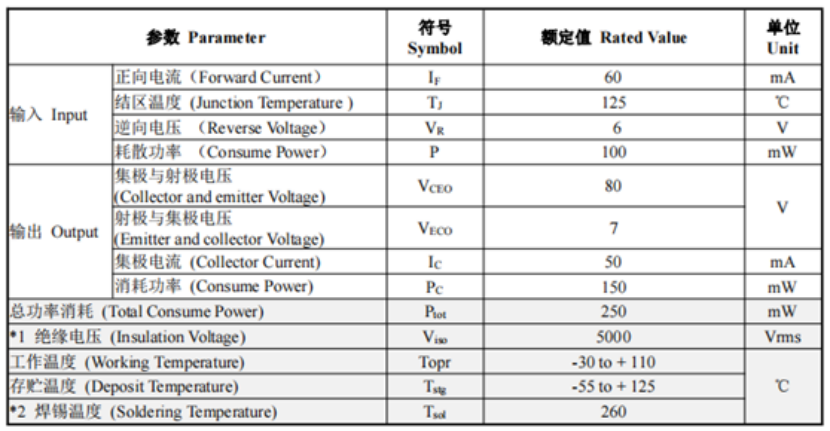

The advantage of SL-1009 lies in its high performance and stable characteristics. It features high conversion efficiency, excellent insulation performance, and a wide operating temperature range, making it suitable for various application scenarios. Moreover, it meets environmental requirements, adopts lead-free packaging, and complies with RoHS standards. Its parameters are as follows:

· Input voltage type: DC

· Output type: Phototransistor

· Number of output channels: 1

· Forward voltage drop: 1.25V

· Reverse voltage: 6V

· Output current: 50mA

· Receiver voltage: 80V

· Collector-emitter saturation voltage (Vce(sat)@Ic,IF): 300mV@1mA,10mA

· Rise time: 18us@2mA,100Ω

· Fall time: 18us@2mA,100Ω

· Isolation voltage (rms): 5kV

· Operating temperature: -30°C to +110°C

SL-1009 is applicable in many fields. In programmable controllers, it can be used for optoelectronic isolation between input and output modules to achieve signal isolation and transmission. In system equipment, it can be used to isolate control signals, avoiding interference and damage. In telecommunications equipment, it can be used for signal transmission and isolation between fiber optic communication and network devices. In household appliances, it can be used in control circuits for devices such as fans and heaters, enabling safe and reliable operation.

In general, the optocoupler SL-1009 is a powerful and stable optocoupling device. It features high conversion efficiency, excellent insulation performance, a wide temperature range, and a long creepage distance, making it suitable for various application fields and compliant with environmental requirements. In the electronics field, SL-1009 can play an important role in providing effective protection for the safety and reliability of electronic systems.
