【Daily Highlight】The Voltage Regulator Diode BZX84C16

release time:2024-05-13Author source:SlkorBrowse:6414

Introduction:

In the realm of electronics, precision components play a pivotal role in ensuring stable and reliable circuit operation. Among these components, the BZX84C16 Zener diode emerges as a cornerstone of precision and versatility. This article aims to unravel the intricacies of the BZX84C16, spotlighting its specifications, features, and applications, elucidating its significance in contemporary electronic designs.

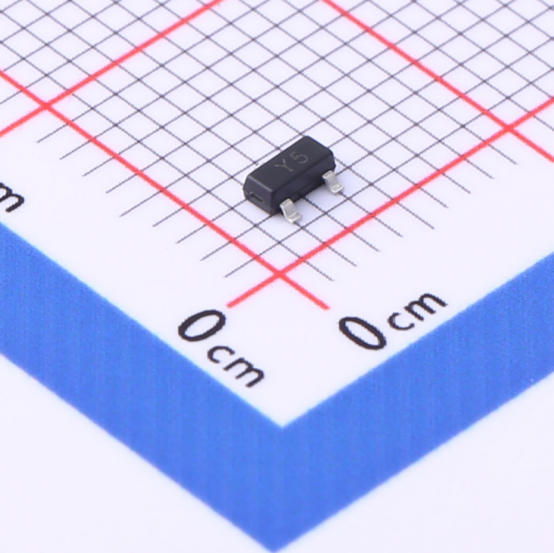

Slkor Voltage Regulator Diode BZX84C16 product photo





Specifications Overview:

The BZX84C16 Zener diode boasts a comprehensive array of specifications that underscore its prowess in diverse applications. Let's delve into its key parameters:



Nominal Zener Voltage (VZTyp): Central to the BZX84C16 is its nominal Zener voltage of 16V. This characteristic serves as a stable reference voltage, essential for precise voltage regulation and signal conditioning in various electronic circuits.



Zener Voltage Range (VZ): The BZX84C16 exhibits a Zener voltage range spanning from 15.3V to 17.1V. This wide tolerance ensures flexibility in circuit design, accommodating variations in Zener voltage while maintaining desired performance levels.



Power Dissipation (PD): With a power dissipation rating of 300mW, the BZX84C16 demonstrates its ability to handle moderate power levels while sustaining stable operation. This attribute is crucial for ensuring reliability under varying operating conditions.



Reverse Current (Ir): The BZX84C16 showcases a reverse current of 100nA at a reverse voltage of 11.2V. This low reverse current minimizes leakage, enhancing circuit efficiency and reliability, particularly in low-power applications.



Dynamic Impedance (Zzt): The BZX84C16 features a dynamic impedance of 40Ω, indicating its ability to maintain stable voltage regulation even with varying levels of load current. This characteristic is essential for ensuring consistent performance in dynamic operating environments.

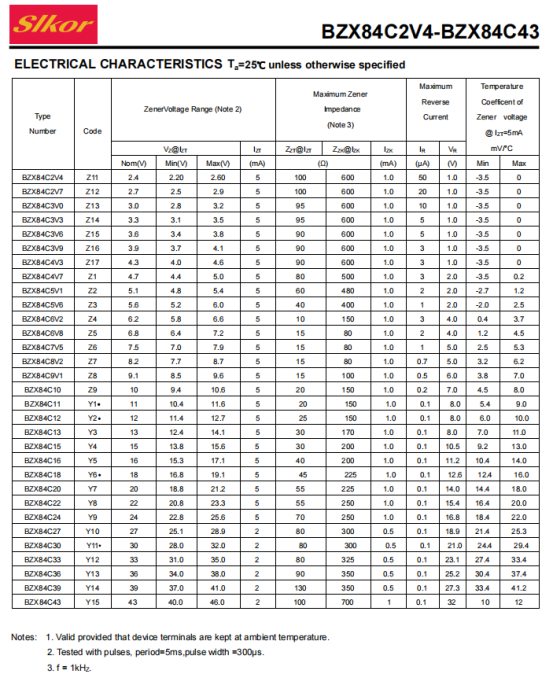

Slkor Voltage Regulator Diode BZX84C16 specification


Applications:

The versatility of the BZX84C16 Zener diode makes it well-suited for a wide range of applications across diverse industries. Here are some notable applications:



Voltage Regulation: Leveraging its precise Zener voltage and dynamic impedance, the BZX84C16 excels in voltage regulation tasks. It finds application in power supplies, voltage reference circuits, and battery management systems, ensuring stable and reliable operation of electronic devices.



Signal Conditioning: In audio and communication circuits, the BZX84C16 plays a crucial role in signal conditioning, particularly for signal clipping and limiting. By maintaining optimal signal levels, it preserves signal integrity and minimizes distortion in amplifiers, mixers, and communication equipment.



Overvoltage Protection: With its precise Zener voltage and low reverse current, the BZX84C16 provides effective overvoltage protection in sensitive electronic systems. By clamping excessive voltages, it safeguards against damage from voltage spikes and surges, ensuring the longevity of critical components.



Voltage Reference: The BZX84C16 serves as a reliable voltage reference in precision measurement and control systems. Its stable Zener voltage and low dynamic impedance make it ideal for establishing reference voltages in instrumentation, data acquisition, and feedback control circuits.


Parameters of Slkor Voltage Regulator Diode BZX84C16



Conclusion:

In conclusion, the BZX84C16 Zener diode stands as a testament to precision, versatility, and reliability in electronic component design. Its precise Zener voltage, wide tolerance range, low reverse current, moderate power dissipation, and stable dynamic impedance make it an indispensable asset in a myriad of applications. Engineers and designers can confidently leverage the BZX84C16 to achieve precise voltage regulation, signal conditioning, overvoltage protection, and voltage reference tasks, driving innovation and progress in the ever-evolving field of electronics.
