【Daily Highlight】Analyzing the Outstanding Advantages and Highlights of the Voltage Regulator Diode BZX84C6V2

release time:2024-06-13Author source:SlkorBrowse:6197

In the electronics industry, the voltage regulator diode is an indispensable key component in circuit design. With its stable voltage output and excellent electrical performance, it plays a crucial role in various electronic devices. Today, we will delve into the unique advantages and highlights of the BZX84C6V2 voltage regulator diode.

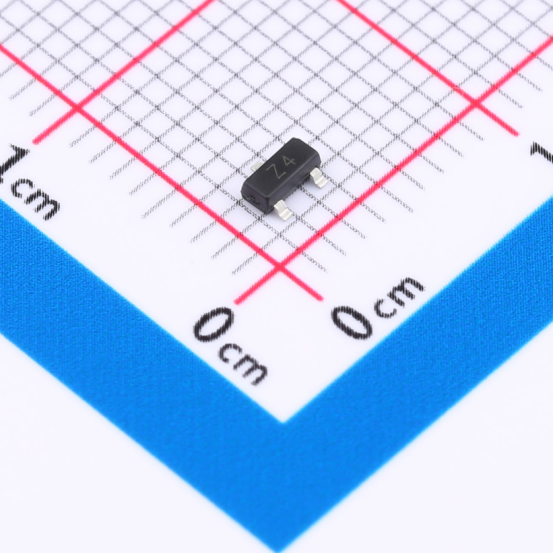

Slkor Voltage Regulator Diode BZX84C6V2 product photo

Precise and Stable Voltage Output

The BZX84C6V2 voltage regulator diode provides an extremely stable voltage output with a nominal regulation value of 6.2V and a regulation range of 5.8V to 6.6V. This characteristic enables it to perform excellently in circuits requiring precise voltage control, such as power supply circuits and protection circuits. Its stable voltage output ensures the stable operation of the circuit, enhancing the performance of electronic devices.


Low Power Design

With a power rating of 300mW, this voltage regulator diode features low power consumption, allowing it to maintain a lower temperature rise during prolonged operation, thus extending its lifespan. Additionally, low power consumption translates to less energy consumption, which is significant for energy conservation and emission reduction efforts.

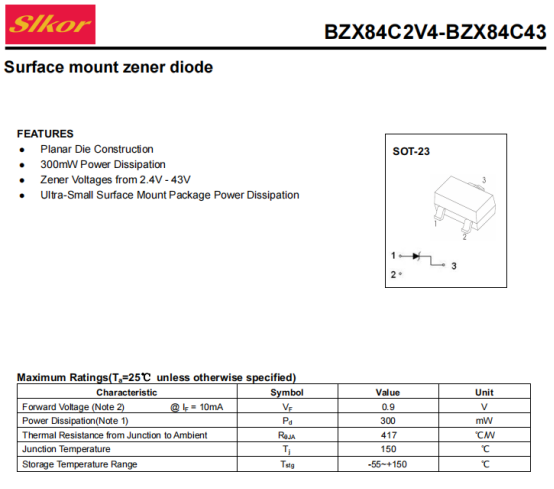

Slkor Voltage Regulator Diode BZX84C6V2 specification

Extremely Low Reverse Current

The reverse current of the BZX84C6V2 voltage regulator diode is only 3μA@4V, significantly lower than similar products. The extremely low reverse current means that under reverse voltage, the diode's leakage current is minimal, avoiding significant impacts on the circuit. This feature makes the voltage regulator diode advantageous in circuits requiring high precision control and low noise.



Excellent Impedance Characteristics

The impedance (Zzt) of this voltage regulator diode is 10Ω, enabling it to withstand large current surges in the circuit, thereby improving the circuit's reliability and stability. Moreover, the lower impedance helps reduce heat generation in the circuit, further extending its lifespan.


Standalone Configuration and Wide Application Range

The BZX84C6V2 voltage regulator diode adopts a standalone configuration, eliminating the need for additional circuit components during use. This feature simplifies circuit design and reduces costs. Furthermore, due to its stable voltage output and excellent electrical performance, the voltage regulator diode is widely used in various electronic devices, including communication equipment, computer devices, and household appliances.

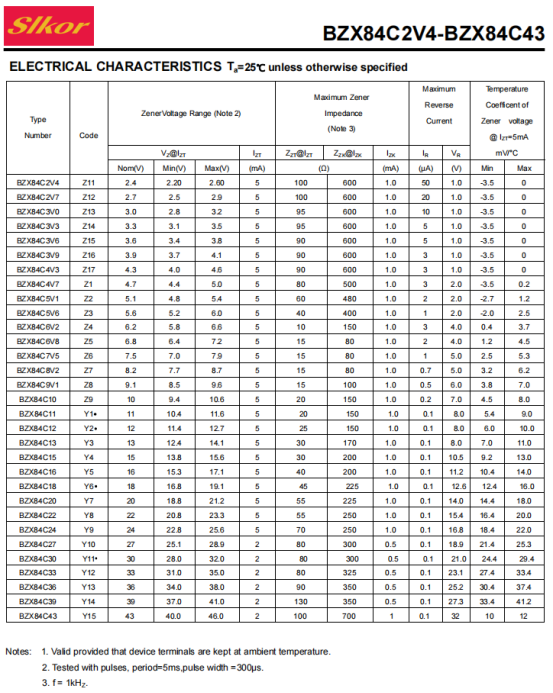

Parameters of Slkor Voltage Regulator Diode BZX84C6V2

Applications:



Power Management Circuits:

 In power management circuits, the BZX84C6V2 voltage regulator diode ensures stable output voltages, crucial for protecting other sensitive components in electronic devices from voltage fluctuations.



It stabilizes the power supply voltage near the nominal value of 6.2V, with a regulation range between 5.8V and 6.6V, which is particularly important for circuits requiring a stable power supply.



Communication Equipment:

In communication equipment, the BZX84C6V2 voltage regulator diode is used to protect circuits from overvoltage and overload damage. When the voltage in the circuit exceeds its regulation value, the voltage regulator diode automatically limits the voltage within a safe range, preventing damage to the equipment.



Its low power design and extremely low reverse current (3μA@4V) make the BZX84C6V2 particularly suitable for communication devices that require prolonged operation.



Computer Devices:

In computer devices, the BZX84C6V2 voltage regulator diode is commonly used in power modules and memory protection circuits to ensure stable voltage supply and data storage.



It effectively prevents voltage fluctuations from affecting the internal circuits of computer devices, improving their stability and reliability.



Household Appliances:

Household appliances such as televisions, washing machines, and refrigerators also require stable voltage supply to ensure normal operation. The BZX84C6V2 voltage regulator diode effectively stabilizes the voltage, protecting appliances from the effects of voltage fluctuations.



Its operating temperature range (-55°C to +150°C) and excellent impedance characteristics (10Ω) enable the BZX84C6V2 to operate stably in various household appliances.



Other Application Areas:
In addition to the aforementioned application areas, the BZX84C6V2 voltage regulator diode is widely used in measurement and control circuits, LED lighting systems, industrial automation equipment, and other fields.



Its standalone configuration and excellent electrical performance make it an indispensable electronic component in these fields.
