In the world of electronics, Zener diodes play a crucial role in maintaining circuit stability. Today, we delve into a highly regarded Zener diode — the BZT52B12, examining its technical specifications and application scenarios in detail.

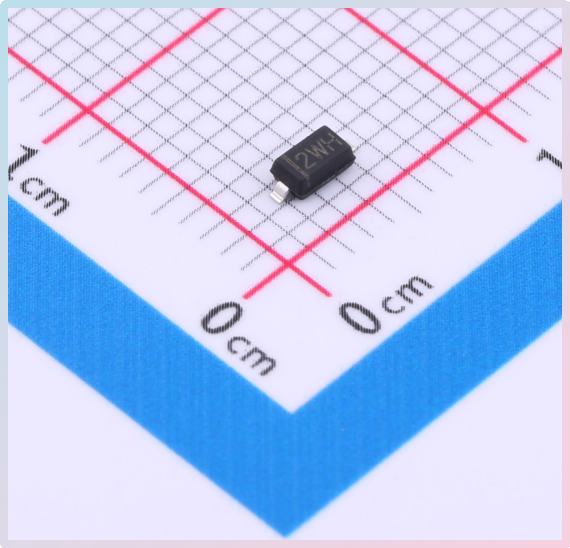

Slkor Voltage Regulator Diode BZT52B12 product photo

Firstly, let's focus on the voltage regulation characteristics of the BZT52B12. The core function of a Zener diode is to provide a stable voltage reference within a circuit. The BZT52B12 has a nominal voltage regulation value of 12V, meaning it can reliably supply a stable 12V reference voltage under normal operating conditions. Its regulation range spans from 11.76V to 12.24V, demonstrating excellent stability within this specified range.

Accuracy is a critical metric for assessing Zener diode performance. The BZT52B12 offers an accuracy of ±5%, ensuring that its actual output voltage does not deviate more than 5% from the nominal voltage. This high level of precision makes the BZT52B12 particularly suitable for circuits requiring precise voltage control.

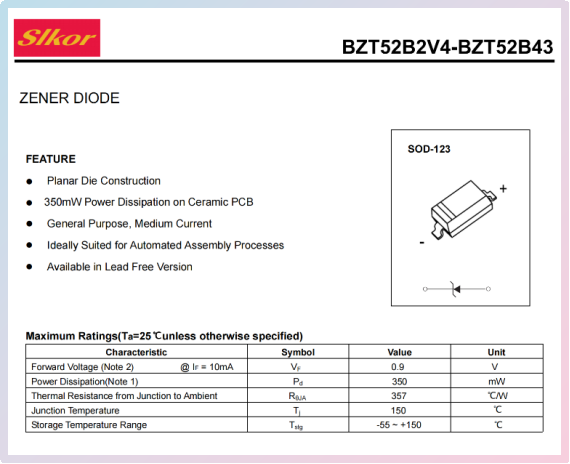

Slkor Voltage Regulator Diode BZT52B12 specification

In terms of power handling, the BZT52B12 can withstand a maximum power dissipation of 350mW. This specification highlights its robust capability to handle various high-power application scenarios.

Another important parameter is reverse current (Ir). The BZT52B12 exhibits a low reverse current of only 0.1μA, indicating minimal leakage current. Low leakage current is beneficial in circuit design as it helps reduce power consumption and enhance overall circuit efficiency.

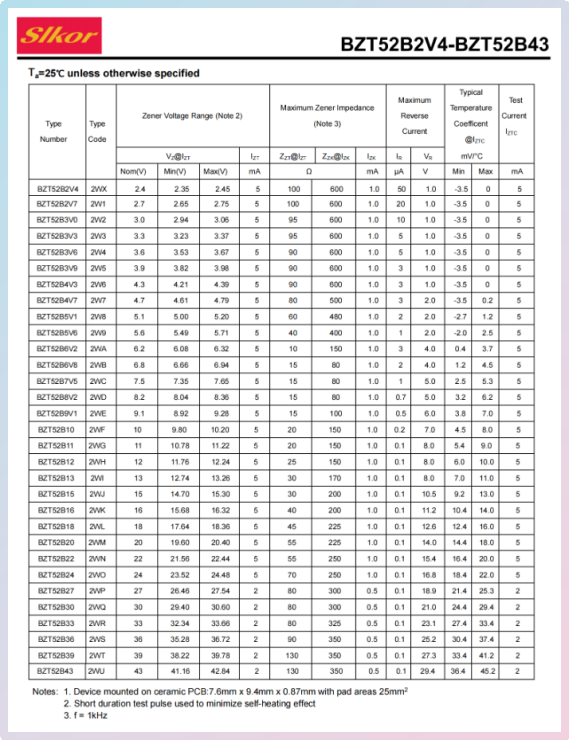

Parameters of Slkor Voltage Regulator Diode BZT52B12

So, what are the practical applications of the BZT52B12? Due to its high accuracy and stability, it is commonly used in analog circuits, power management, voltage regulation modules, and any electronic devices requiring a stable voltage reference. Its indispensable role extends particularly to industrial controls, instrumentation, automotive electronics, and more.

Furthermore, the BZT52B12 is favored for its excellent thermal stability and durability, ensuring consistent performance across various temperature environments and maintaining reliable operation under diverse conditions.

Additional Insights into Zener Diode BZT52B12

Upon deeper exploration of the BZT52B12 Zener diode, it becomes evident that it is not merely an electronic component but a meticulously designed voltage regulator, providing stability and reliability as a voltage reference for electronic systems.

In-depth Technical Analysis

The voltage regulation mechanism of the BZT52B12 relies on its internal PN junction structure and doping concentration. Under reverse bias, it maintains a relatively constant voltage drop, thanks to precise doping techniques and optimized device design. Moreover, the diode exhibits fast response characteristics, making it highly effective in dynamic voltage regulation scenarios.

Comparison with Other Zener Diodes

Compared to similar Zener diodes, the BZT52B12 excels in terms of voltage regulation accuracy, power handling capability, and reverse current performance. Its superior precision often surpasses many competitive products in the market, giving it a significant edge in applications requiring high-accuracy voltage references.

Wide Market Applications

Due to its outstanding performance, the BZT52B12 finds extensive applications across multiple fields. In communication devices, it ensures stability and accuracy in signal transmission. In industrial automation, it helps maintain voltage stability in control systems, thereby enhancing production efficiency and safety. In automotive electronics, the BZT52B12 ensures the proper operation of various sensors and actuators.

Reliability Testing and Quality Assurance

To guarantee performance and reliability, manufacturers subject the BZT52B12 to rigorous testing. These tests include high-temperature aging, low-temperature shock, mechanical stress tests, among others, ensuring that the product maintains excellent performance under different environmental and operational conditions.

Potential Issues and Solutions

Despite its numerous advantages, the BZT52B12 may experience performance degradation under specific conditions such as extreme temperatures or prolonged continuous operation. To mitigate these issues, designers and engineers need to implement effective heat dissipation solutions, thereby extending the diode's lifespan and maintaining performance stability.
