In the rapidly evolving electronics industry, voltage regulator diodes play a critical role in circuit protection, where stability and reliability are paramount. Today, we will delve into a standout voltage regulator diode—MMBZ5234B. This device demonstrates exceptional application potential across various fields, including consumer electronics, automotive electronics, and industrial control, thanks to its precise voltage regulation, moderate power consumption, and extremely low reverse current.

Precise Voltage Regulation, Stable and Reliable

The MMBZ5234B stands out with its nominal voltage regulation of 6.2V, fluctuating within a wide range of 5.89V to 6.51V, ensuring stability under diverse operating conditions.

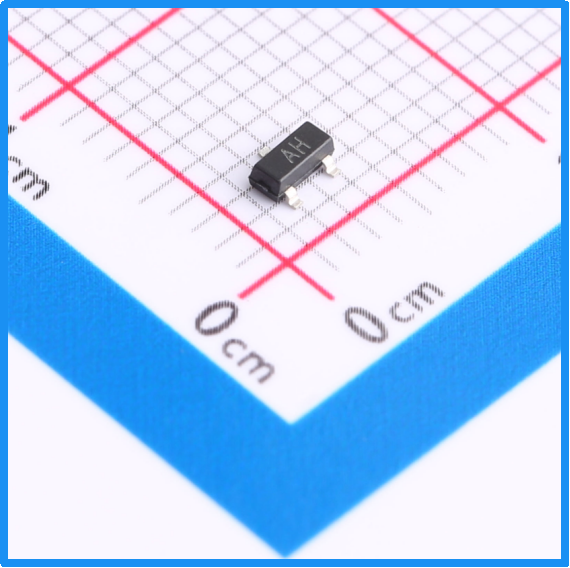

Slkor Voltage Regulator Diode MMBZ5243B product photo

Moderate Power Consumption, Efficient Energy Saving

The MMBZ5234B showcases a good energy efficiency ratio, with a rated power of 350mW. This means that under normal operating conditions, the device effectively converts electrical energy into the required regulated output while minimizing unnecessary heat generation, thereby reducing overall system energy consumption.

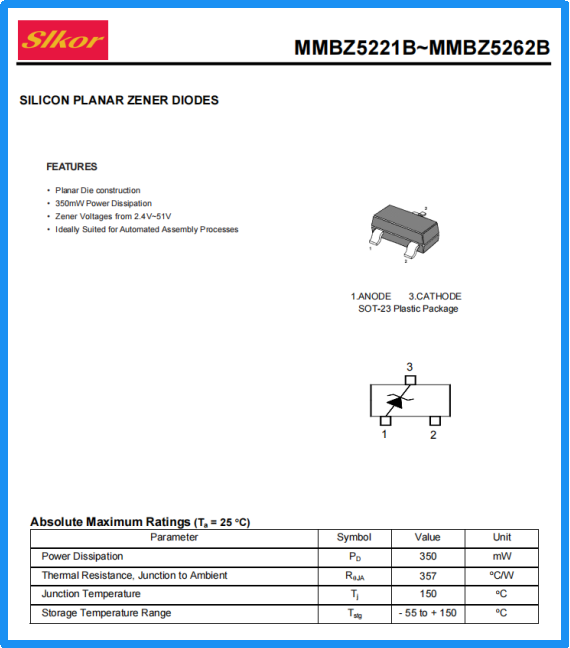

Slkor Voltage Regulator Diode MMBZ5243B specification

Low Reverse Current, Extended Lifespan

Reverse current (Ir) is a critical parameter in evaluating the performance of voltage regulator diodes. The MMBZ5234B boasts a reverse current of only 5µA, resulting in minimal power consumption under reverse bias conditions, which helps extend the device’s lifespan and lower system maintenance costs. Additionally, low reverse current reduces the risk of circuit failures due to current leakage, enhancing overall system reliability.

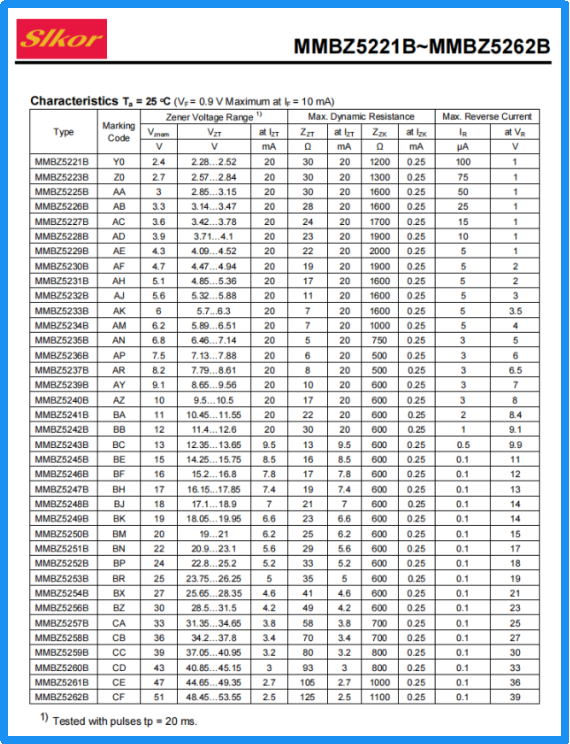

Parameters of Slkor Voltage Regulator Diode MMBZ5243B

Wide Applications, Unlimited Potential

With its outstanding performance metrics and stable operating characteristics, the MMBZ5234B voltage regulator diode finds widespread applications across multiple domains. In consumer electronics, it serves as a key component in power management circuits, ensuring devices operate normally amidst voltage fluctuations. In automotive electronics, its high-precision voltage regulation supports critical components like engine control units and sensors. In industrial control, the MMBZ5234B is vital for protecting circuits from voltage spikes, ensuring stable system operation.

Performance of MMBZ5234B in Various Operating Environments

When exploring the performance of the MMBZ5234B in different environments, several key factors need consideration: temperature, humidity, and electromagnetic interference. These factors directly affect the operational stability and reliability of semiconductor devices.

Temperature Effects

Temperature is a significant parameter influencing semiconductor performance. For the MMBZ5234B, its voltage regulation, reverse current, and power consumption parameters vary with temperature changes. Generally, as temperature increases, the voltage regulation may decrease, while reverse current may rise.

Humidity Effects

Humidity affects semiconductor devices mainly through the moisture absorption and corrosiveness of packaging materials. Although the MMBZ5234B typically features robust packaging technology that can resist moisture to some extent, extreme humidity can still lead to issues like packaging material swelling and pin corrosion, impacting electrical performance and reliability.

Electromagnetic Interference Effects

Electromagnetic interference (EMI) is a common challenge in modern electronic devices. While the internal structure and operating principle of the MMBZ5234B are relatively straightforward, it can still be susceptible to interference in strong electromagnetic fields, potentially leading to degraded voltage regulation or failure.

Solutions and Recommendations

- Optimize Thermal Design: Improve heat dissipation by adding heat sinks and optimizing PCB layout to lower operating temperatures and enhance thermal stability.

- Strengthen Moisture Protection: In humid environments, ensure that the device’s storage and operating conditions remain dry, employing suitable moisture-proof measures such as desiccants and moisture-proof bags.

- Enhance Interference Resistance: Mitigate the effects of electromagnetic interference through shielding measures and filtering circuits to improve resistance to interference.

By considering factors like temperature, humidity, and electromagnetic interference, and implementing effective solutions, we can ensure that the MMBZ5234B voltage regulator diode consistently performs across various environments, providing strong support for stable circuit operation.
