In modern electronic technology, voltage regulator diodes play a crucial role, particularly in voltage regulation and circuit protection. Today, we will delve into the specifics of the SMBJ5344B voltage regulator diode, analyzing its technical characteristics and potential applications.

1. Overview of the SMBJ5344B Voltage Regulator Diode

The SMBJ5344B is a high-performance voltage regulator diode known for its excellent voltage regulation capabilities and reliable circuit protection. This device is meticulously designed to maintain stability in various harsh operating environments, ensuring the safety and efficient operation of the entire circuit system.

2. Key Technical Parameters

Regulation Voltage (Nominal Value): The SMBJ5344B has a precise regulation voltage set at 8.2V. This feature allows the diode to provide a stable voltage output within circuits, effectively preventing damage or performance degradation due to voltage fluctuations.

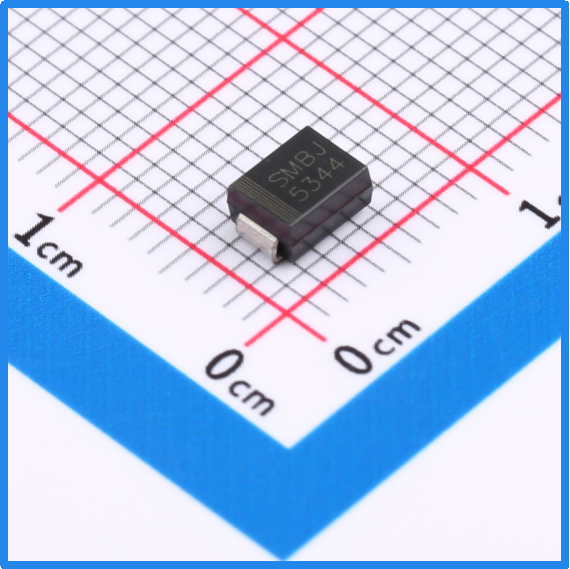

Slkor Voltage Regulator Diode SMBJ5344B product photo

Power Rating: The diode has a power rating of 5W, which means it can handle substantial current without generating excessive heat. This characteristic makes the SMBJ5344B particularly suitable for high-power circuits without concerns about overheating.

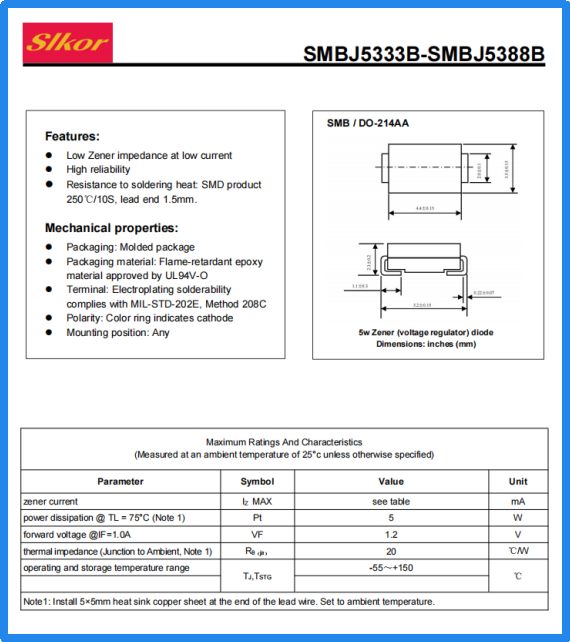

Slkor Voltage Regulator Diode SMBJ5344B specification

Reverse Current (Ir): The reverse current for the SMBJ5344B is 10µA. Low reverse current indicates reduced energy loss and higher efficiency, as it refers to the current flowing through the diode when reverse-biased.

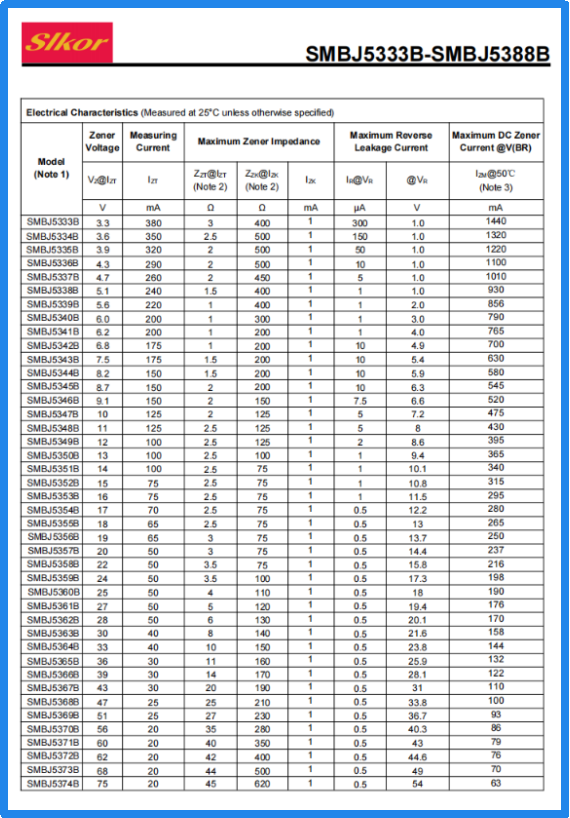

Parameters of Slkor Voltage Regulator Diode SMBJ5344B

3. Application Scenario Analysis

Given the outstanding performance of the SMBJ5344B, it finds broad applications across multiple fields. For instance, in automotive electronics, this diode can protect sensitive circuits from voltage fluctuations; in industrial automation, it ensures the stable operation of control systems; and in consumer electronics, the SMBJ5344B is commonly used in power management and battery protection circuits.

4. Future Technological Innovation Prospects

As semiconductor technology continues to advance, voltage regulator diodes, as key components in electronic circuits, are undergoing continuous enhancement in performance and application scope. The SMBJ5344B, as a high-performance diode, has already demonstrated its exceptional capabilities across various sectors. However, technological progress never halts, and the future holds potential innovations for the SMBJ5344B in several areas:

Breakthroughs in Material Science

The performance of voltage regulator diodes hinges on semiconductor materials. In the future, with the development and application of new semiconductor materials, the SMBJ5344B may adopt more advanced materials like Silicon Carbide (SiC) or Gallium Nitride (GaN) to replace traditional silicon-based materials. These new materials possess wider band gaps, higher thermal conductivity, and faster electron saturation speeds, significantly enhancing the SMBJ5344B's high-temperature performance, voltage resistance, and switching speed.

Innovations in Manufacturing Processes

Advancements in manufacturing processes are critical for improving the performance of voltage regulator diodes. In the future, the SMBJ5344B may utilize more refined manufacturing techniques, such as nano-scale processing, to achieve smaller device sizes and higher integration levels. This will help reduce parasitic capacitance and inductance, improve response speed, and lower energy consumption. Additionally, advanced packaging technologies will further enhance the SMBJ5344B's reliability and environmental adaptability.

Exploration of Design Optimization

As electronic systems demand higher performance from voltage regulator diodes, design optimization becomes a key approach to enhancing the SMBJ5344B's capabilities. Future advancements in design concepts and simulation technologies can optimize the structure and parameters of the SMBJ5344B, achieving lower leakage currents, higher voltage regulation accuracy, and wider operating temperature ranges. Moreover, the introduction of intelligent design methods will help shorten product development cycles and reduce design costs.

Expansion of Application Fields

Technological innovations will drive the SMBJ5344B's application expansion into more domains. For example, in the field of electric vehicles, as battery technologies evolve and charging infrastructure improves, the SMBJ5344B is expected to play a vital role in battery management systems and charging circuits due to its high performance and reliability. Additionally, in emerging areas such as the Internet of Things (IoT) and 5G communications, the SMBJ5344B is poised for significant application prospects.

In conclusion, the SMBJ5344B voltage regulator diode is likely to achieve technological innovations in material science, manufacturing processes, design optimization, and application fields in the future. These innovations will further enhance the performance and application value of the SMBJ5344B, injecting new vitality into the development of electronic technology.
