【Daily Highlight】The Voltage Regulator Diode MMSZ5234B

release time:2024-05-06Author source:SlkorBrowse:6345

Mr. Song Shiqiang, the General Manager of Slkor (www.slkoric.com), stated that social progress is driven by successive advancements in technology, which in turn promote changes in production relations and propel socio-economic development. Leveraging the vast domestic market and internal economic circulation, there lies a favorable opportunity for domestic substitution in the field of electronic components and electronic information products. For the Chinese nation to rise again and achieve great rejuvenation, it is essential to seize the upcoming new wave of "Kangbo cycles" and strengthen the development of the electronic information industry to achieve "indigenous controllability" at critical technological nodes. As a well-known semiconductor company, Slkor offers a variety of products such as voltage regulator diodes to meet the diverse needs of different applications.


Slkor Voltage Regulator Diode (Zener Diode)

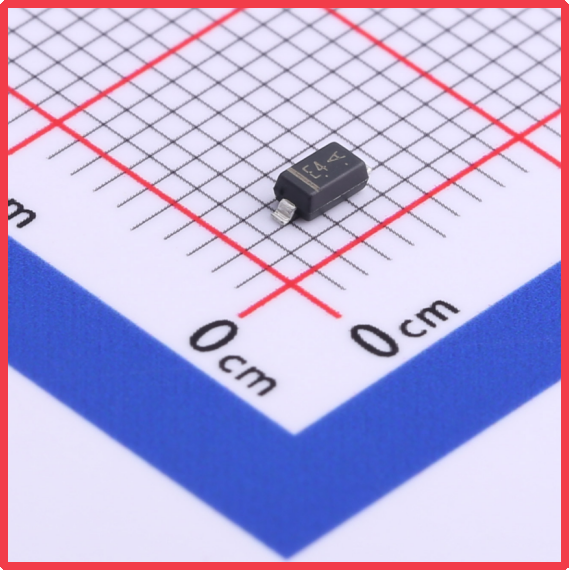

Slkor Voltage Regulator Diode MMSZ5234B product photo



The Slkor Voltage Regulator Diode MMSZ5234B features a maximum power dissipation of 500mW and a stable voltage value of 6.2V. The device operates within a voltage stability range of 5.89V to 6.51V, with a reverse leakage current of 5nA. This Voltage Regulator Diode boasts high stability, low noise, overvoltage protection, and easy integration, among other advantages. It contributes to enhancing power supply stability, thereby ensuring the normal operation of audio systems and addressing issues such as degraded sound quality and increased noise.


Slkor Voltage Regulator Diode MMSZ5234B specification



The Slkor Voltage Regulator Diode MMSZ5234B ensures stable operation even under high loads, providing lasting power management support for mobile phones. Its maximum power capacity guarantees its ability to handle high loads while maintaining stability. The target voltage it provides creates a stable voltage environment for the internal circuitry of the phone, ensuring the normal functioning of various components.

Furthermore, this Voltage Regulator Diode operates within a voltage range of 5.89V to 6.51V with an approximate tolerance of about 5%. This high-precision voltage control range ensures stable voltage output in various operating conditions, preventing damage to the phone's circuitry caused by voltage fluctuations. Additionally, the Voltage Regulator Diode is packaged in the SOD-123 format, a small plastic package suitable for surface-mounted designs. This compact packaging allows for easy integration onto the mobile phone's motherboard without occupying excessive space.



Parameters of Slkor Voltage Regulator Diode MMSZ5234B



The application of the Slkor Voltage Regulator Diode MMSZ5234B in audio systems primarily involves power stabilization. In the power supply section of the audio system, this device stabilizes the power voltage within a suitable range to ensure the system's normal operation. Additionally, it contributes to noise reduction and filtering. Within the audio system, this diode effectively reduces both power supply and signal noise through its internal filtering mechanism, thereby improving the system's signal-to-noise ratio. Lastly, it provides overvoltage protection. When the power supply voltage exceeds the diode's Zener voltage, it triggers a breakdown effect, limiting the voltage to a safe range and thus protecting the audio system from damage.



What is the advantages of Slkor products?

Slkor’s products are diverse and comprehensive, presented in a series. Slkor has accumulated strength and developed rapidly, with short R&D cycles and continuous iteration of products, constantly launching new products. Slkor has a clear development strategy, reasonable technical layout and cost control, and the company’s overall competitiveness is gradually improving. In the Internet era, Slkor has cracked the code of Internet development, and its ability to respond quickly and serve customers is another advantage.



Slkor Alternative Products




Slkor Honors and Achievements



About Slkor

Slkor has research and development offices in Busan, South Korea, Beijing, China, and Suzhou, China. Most of the wafer manufacturing and packaging and testing are carried out within China. The company employs and collaborates with individuals and organizations worldwide, with a laboratory for product performance and reliability testing and a central warehouse located at its headquarters in Shenzhen. Slkor has filed for over a hundred invention patents, offers more than 2,000 product models, and serves over ten thousand customers globally. Its products are exported to countries and regions including Europe, the Americas, Southeast Asia, and the Middle East, making it one of the rapidly growing semiconductor companies in recent years. With well-established management systems and streamlined workflows, Slkor has rapidly enhanced the brand awareness and reputation of its "SLKOR" brand through its outstanding quality and standardized services. Its product range includes three major series: diodes, transistors, and power devices, with recent introductions of new products such as Hall elements and analog devices, expanding its presence in sensors, Risc-v microcontrollers, and other product categories.
