【Daily Highlight】Introduce The Characteristics Of Voltage Regulator Diodes MMSZ5231B

release time:2024-05-24Author source:SlkorBrowse:5865


Introduction:

The MMSZ5231B is a reliable Zener diode designed for voltage regulation applications. With a VZTyp rating of 5.1V, precision of ±5%, a maximum power dissipation (PD) of 500mW, and a low reverse current (Ir) of 5nA at 2V, this diode ensures stable and accurate voltage output in various electronic circuits.

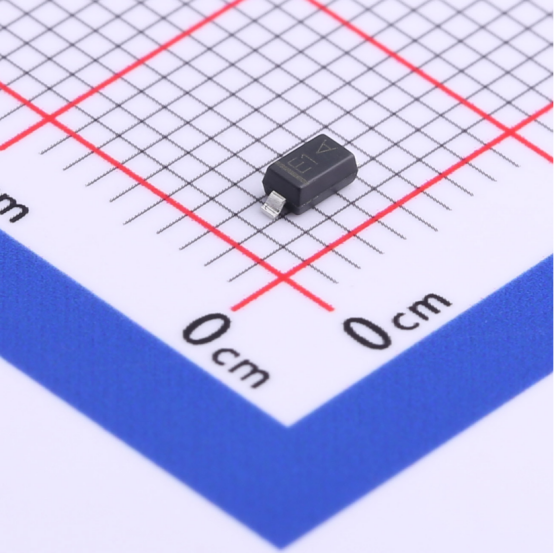

Slkor Voltage Regulator Diode MMSZ5231B product photo


Slkor Zener diode MMSZ5231B specification





Key Points:



Precise Voltage Regulation:

●VZTyp rating of 5.1V

●Precision of ±5%

●Ensures accurate and stable voltage output for different electronic devices and systems



Efficient Power Handling:

●PD rating of 500mW

●Capable of dissipating moderate power levels without compromising performance



Low Reverse Current:

●Ir of 5nA at 2V

●Minimizes power loss and improves overall efficiency

●Enhances the reliability and lifespan of the component


Parameters of Slkor Zener diode MMSZ5231B



Conclusion:

The MMSZ5231B Zener diode is a reliable component for voltage regulation tasks, offering a VZTyp rating of 5.1V with a precision of ±5%. With a maximum power dissipation (PD) of 500mW and a low reverse current (Ir) of 5nA at 2V, this diode ensures accurate voltage output, efficient power handling, and enhanced reliability in electronic systems.



Can a voltage regulator diode replace a TVS to protect a USB interface?



Voltage regulator diodes (Zener Diodes) and transient voltage suppressors (TVS), also known as transient voltage suppression diodes or transient suppressor diodes, each have their own applications in circuit protection.



Let's discuss whether a voltage regulator diode can replace a TVS to protect a USB interface:



No, it cannot. Voltage regulator diodes and TVS serve different functions and are applicable in different scenarios for circuit protection. Voltage regulator diodes are primarily used to stabilize voltage, whereas TVS is used to protect circuits from transient overvoltage damage.



USB interfaces are common interfaces in electronic devices and may face threats from various transient overvoltages in the external environment. These transient overvoltages can potentially damage circuit components within the USB interface. Therefore, specialized transient overvoltage protection devices like TVS are needed to protect USB interfaces.



While voltage regulator diodes can limit voltage rise, they have slower response times and cannot promptly respond to transient overvoltages. Additionally, the power and voltage range of voltage regulator diodes may not meet the requirements for protecting USB interfaces.



Therefore, voltage regulator diodes cannot replace TVS to protect USB interfaces. When designing protection circuits for USB interfaces, appropriate TVS or other transient overvoltage protection devices should be selected to ensure circuit safety and stability.
