I. Overview

The BZT52B6V8BS voltage regulator diode is a high-performance, high-precision semiconductor device designed for voltage regulation and circuit protection purposes. In electronic devices, voltage regulator diodes play a crucial role in maintaining stable voltage and ensuring the normal operation of circuits. The BZT52B6V8BS is highly regarded in the industry for its excellent technical characteristics.

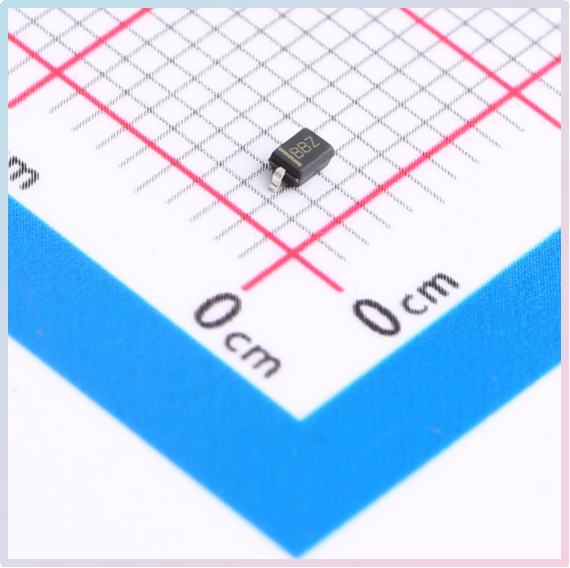

Slkor Voltage Regulator Diode BZT52B6V8BS product photo

II. Detailed Technical Features

Regulation Value and Accuracy:

● Nominal Voltage: 6.8V, the stable output voltage provided by the BZT52B6V8BS under normal operating conditions.

● Voltage Regulation Range: 6.66V to 6.94V, allowing for some voltage fluctuation while maintaining circuit stability.

● Accuracy: ±5%, indicating that the deviation of the regulated voltage does not exceed this range under different environmental and operating conditions, ensuring high-precision circuit operation.

Power and Reverse Current:

● Power Dissipation: 400mW, reflecting the maximum power the diode can withstand, an important indicator of its drive capability and durability.

● Reverse Current (Ir): Only 2μA, demonstrating very low leakage current when reverse biased, contributing to reduced power consumption and increased efficiency.

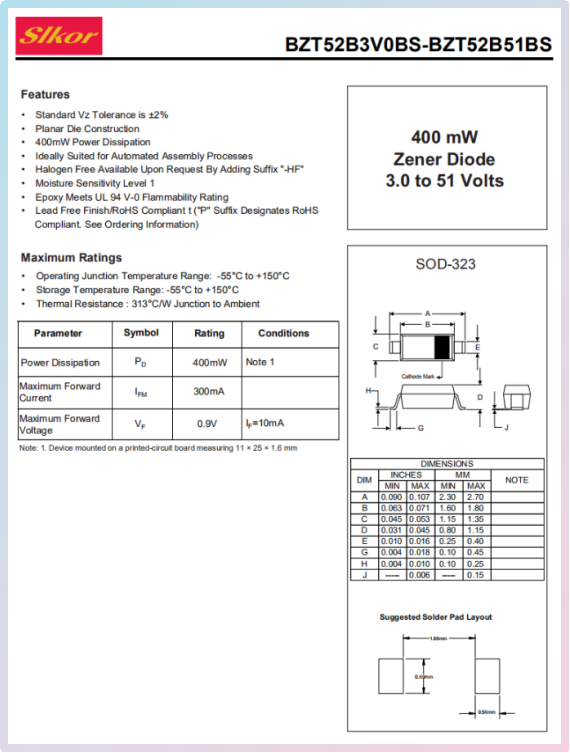

Slkor Voltage Regulator Diode BZT52B6V8BS specification

III. Physical and Material Characteristics

The BZT52B6V8BS voltage regulator diode utilizes advanced semiconductor materials and precise manufacturing processes to ensure the stability and reliability of its physical structure. Its compact packaging design facilitates integration into various electronic devices. Material selection considers thermal stability and electrical performance to meet the demands of different operating environments.

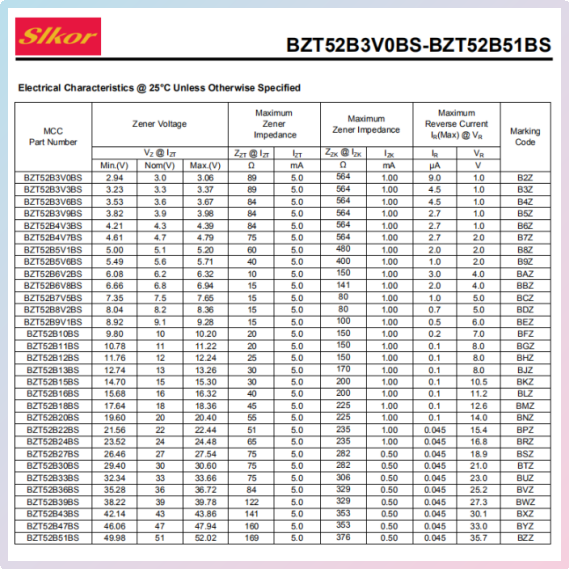

Parameters of Slkor Voltage Regulator Diode BZT52B6V8BS

IV. Application Examples and Considerations

The BZT52B6V8BS is widely used in various electronic devices such as power management, voltage regulators, and protection circuits. When using it, the following points should be noted:

● Ensure that operating voltage and current do not exceed the diode's rated values to prevent damage.

● During layout and wiring, attention should be paid to heat dissipation and electrical isolation to enhance circuit reliability.

● Choose appropriate filtering and bypass capacitors to further optimize circuit performance.

V. Introduction to Key Components Used with BZT52B6V8BS

When constructing circuits using the BZT52B6V8BS voltage regulator diode, it is often necessary to use several other key components to ensure circuit stability and performance. Here are some recommended components and their roles:

Filtering Capacitor:

Purpose: Used to smooth ripple in DC power supplies, reducing the impact of power supply noise on the voltage regulator diode and the entire circuit.

Selection: Capacitor value depends on the ripple magnitude of the power supply and desired filtering effect. Typically, large electrolytic capacitors (ranging from hundreds of microfarads to millifarads) are used for primary filtering, while smaller ceramic capacitors (tens to hundreds of picofarads) are used for further high-frequency filtering.

Bypass Capacitor:

Purpose: Provides a low impedance path to bypass high-frequency noise for the voltage regulator diode, protecting it from high-frequency interference.

Selection: Bypass capacitors are typically small ceramic capacitors with values ranging from tens to hundreds of picofarads, depending on the circuit's operating frequency and noise levels.

Current Limiting Resistor:

Purpose: Limits the current flowing through the voltage regulator diode to prevent damage due to excessive current.

Selection: The resistor value should be chosen based on the diode's rated current and the circuit's operating voltage. Typically, the appropriate resistor value is determined through calculation or experimentation.

Transient Voltage Suppressor (TVS):

Purpose: Used to protect the circuit from transient overvoltages such as lightning strikes or electrostatic discharges.

Selection: TVS selection depends on the circuit's operating voltage and expected transient voltage levels. Its breakdown voltage should be slightly higher than the operating voltage of the voltage regulator diode to ensure no impact on circuit performance under normal operating conditions.

Heat Sink:

Purpose: For voltage regulator diodes with higher power dissipation, attaching a heat sink may be necessary to aid in heat dissipation and prevent damage from overheating.

Selection: Heat sink selection should consider the diode's power dissipation and operating environment temperature. The material and size of the heat sink should provide sufficient dissipation area to ensure the diode operates within a safe temperature range.

These components, working in conjunction with the BZT52B6V8BS voltage regulator diode, can construct a stable and reliable power supply circuit. In practical applications, additional auxiliary components such as fuses and switches may be added according to specific requirements to further enhance circuit functionality and safety.
