Overview of BZT52C12S Voltage Regulator Diode

BZT52C12S is a diode designed specifically to provide stable voltage in circuits. Its key feature lies in its precise 12V nominal voltage regulation, with a voltage range around this value fluctuating no more than ±5% (i.e., from 11.4V to 12.7V). This high precision voltage regulation makes BZT52C12S an ideal choice for circuits requiring exact voltage control.

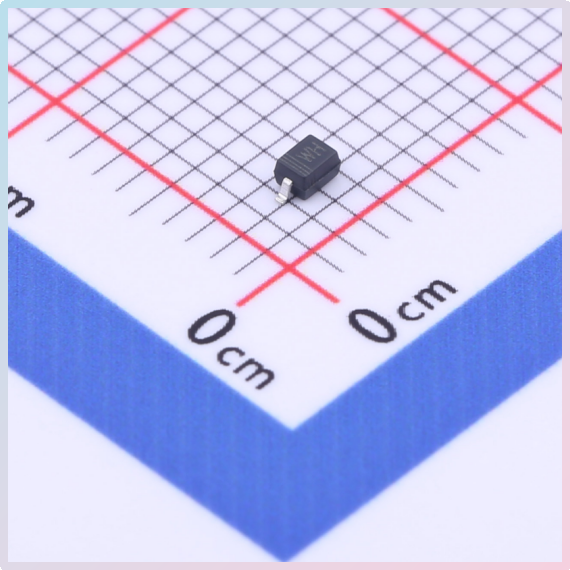

Slkor Voltage Regulator Diode BZT52C12S product photo

Key Performance Parameters Analysis

Nominal Voltage: BZT52C12S has a nominal voltage of 12V, meaning under normal operating conditions, it stabilizes the circuit voltage around 12V, effectively protecting the circuit from damage due to over-voltage or under-voltage.

Voltage Range: Its voltage regulation range is set from 11.4V to 12.7V, demonstrating the diode's stability and adaptability to voltage fluctuations. This range ensures that even with variations in input voltage, the output voltage remains within an acceptable range.

Accuracy: The ±5% accuracy further emphasizes BZT52C12S's precision in voltage control. Such high accuracy is crucial for circuits requiring stringent voltage management, such as precision measuring instruments and communication equipment.

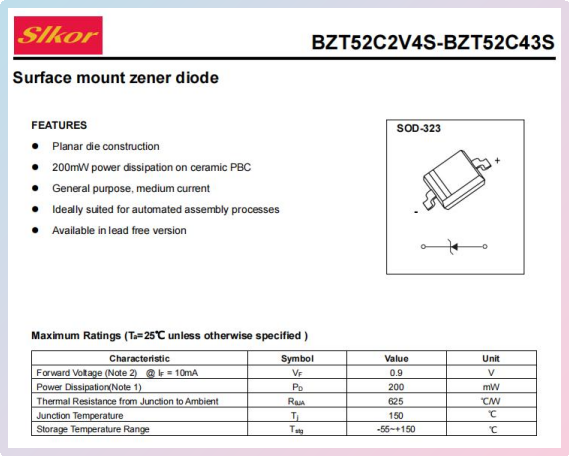

Slkor Voltage Regulator Diode BZT52C12S specification

Power: With a power handling capacity of 500mW, BZT52C12S can manage variations in load within a certain range while maintaining a stable output voltage. However, it's important to avoid exceeding its rated power to prevent overheating and damage in practical applications.

Reverse Current (Ir): At a reverse voltage of 8V, the reverse current of BZT52C12S is only 100nA. This extremely low value indicates minimal power consumption when the diode is reverse-biased, contributing to reduced overall circuit power consumption.

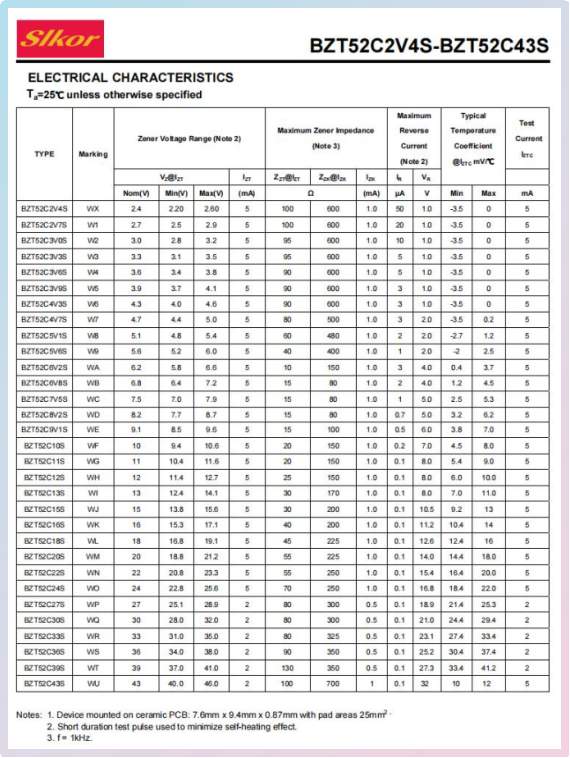

Parameters of Slkor Voltage Regulator Diode BZT52C12S

Applications Due to its excellent performance, BZT52C12S voltage regulator diode finds wide application in various fields:

Power Management: In power circuits, BZT52C12S stabilizes output voltage, protecting subsequent circuits from voltage fluctuations.

Communication Equipment: Precise voltage control is crucial for ensuring signal transmission quality in communication equipment. BZT52C12S enhances stability and reliability in such applications.

Automotive Electronics: In automotive electronic systems, BZT52C12S is used for voltage protection in critical components like Electronic Control Units (ECUs), ensuring the normal operation of vehicle electronic systems.

Industrial Control: In industrial automation equipment, BZT52C12S's precise voltage regulation characteristics help maintain stable operation in complex environments.

Introduction to Common Types of Voltage Regulator Diodes

I. Classification by Power Low Power Voltage Regulator Diodes: These are used in circuits with low current and voltage, such as portable devices and small power supplies. Examples include the 1N46 series (e.g., 1N4614 to 1N4627), typically handling below 500mW. Medium Power Voltage Regulator Diodes: Suitable for circuits with moderate current and voltage, like household appliances and industrial control equipment. Specific models may vary by manufacturer but generally offer higher power handling capabilities. High Power Voltage Regulator Diodes: Designed for high current and voltage applications such as power supplies and motor drivers. Certain models can handle several watts or more.

II. Classification by Package Form Metal Package: Offers good heat dissipation and mechanical strength, suitable for high power and high temperature environments. Typically, the positive end of a metal package voltage regulator diode is flat, while the negative end is semi-circular. Plastic Package: Features smaller size and lighter weight, ideal for space-constrained applications. Plastic package diodes often have color markings on their bodies to distinguish positive and negative ends.

III. Classification by Structure Standard Voltage Regulator Diodes: Consist of a single PN junction, featuring a simple structure and lower cost. They achieve voltage regulation through reverse breakdown characteristics. Integrated Voltage Regulator Diodes: Integrate multiple voltage regulator diodes or other components into a single module, offering enhanced integration and smaller size, suitable for highly integrated circuits.

IV. Classification by Functional Characteristics Adjustable Voltage Regulator Diodes: Allow users to adjust their voltage regulation values via external circuits to meet various circuit requirements. For instance, LM2576T-ADJ is an adjustable switch-mode power regulator. High Precision Voltage Regulator Diodes: Feature higher voltage regulation accuracy and lower temperature coefficients, ideal for applications demanding extremely stable voltage, such as precision measuring instruments and communication equipment.
