In the semiconductor field, Zener diodes play a critical role in ensuring the stable operation of circuits. Today, we delve into the BZT52B30 Zener diode, which has become a core component in numerous electronic designs due to its outstanding technical characteristics and stable performance.

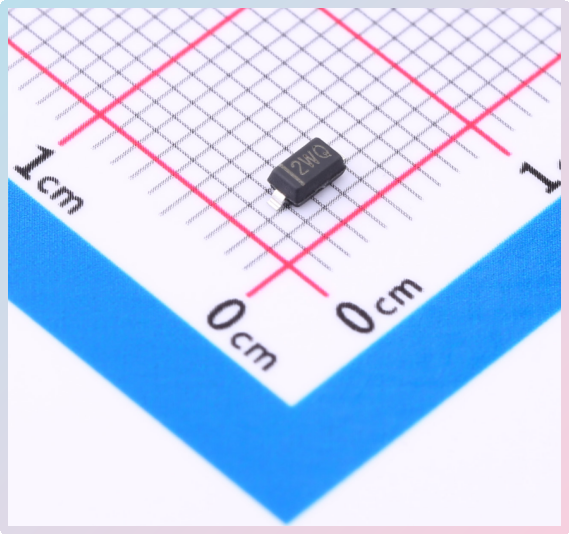

Slkor Voltage Regulator Diode BZT52B30 product photo

Performance of BZT52B30 Zener Diode

Firstly, the BZT52B30 is designed with a precise voltage regulation value of 30V, with actual regulation ranging from 29.4V to 30.6V. This design not only guarantees voltage output stability but also ensures consistent performance across various operating conditions. For electronic devices requiring precise voltage control, the BZT52B30 is undoubtedly an ideal choice.

In terms of accuracy, the BZT52B30 demonstrates exceptional performance with a ±5% tolerance range, providing highly accurate voltage output under diverse operating conditions. This level of precision is crucial for maintaining circuit stability and ensuring reliable device operation.

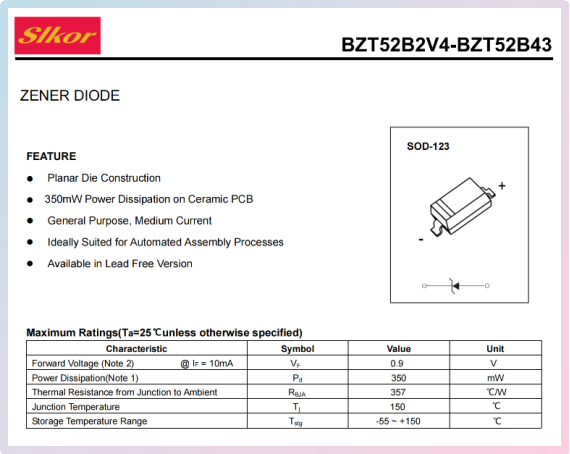

Slkor Voltage Regulator Diode BZT52B30 specification

Additionally, the BZT52B30 boasts excellent power handling capabilities with a rated power of up to 350mW, allowing it to withstand significant current loads while maintaining stable voltage output. This feature enables the diode to excel in high-performance electronic devices, meeting the demands of various complex applications.

It is worth noting that the BZT52B30 exhibits very low reverse leakage current of only 0.1μA. This means it generates minimal leakage current under reverse voltage, effectively reducing power consumption and improving overall circuit efficiency. This characteristic provides significant advantages in energy efficiency and environmental friendliness.

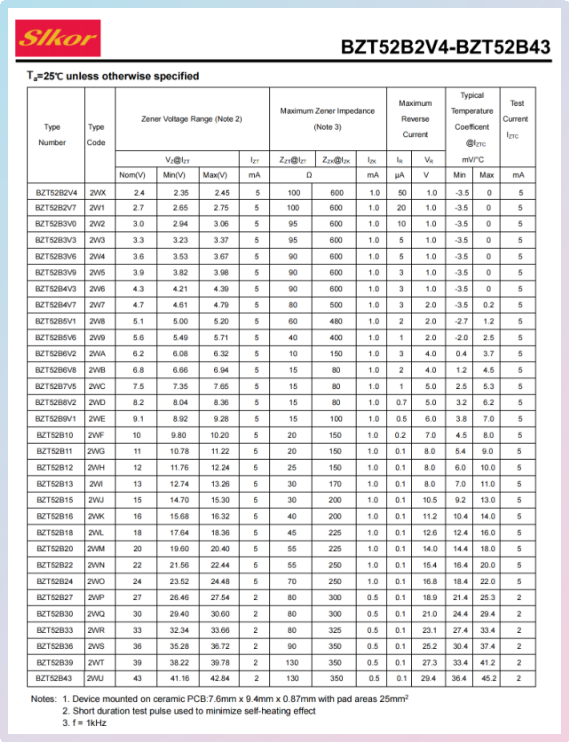

Parameters of Slkor Voltage Regulator Diode BZT52B30

Zener Diodes and Temperature Compensation: Ensuring Stability

In the field of electronics, Zener diodes are crucial components that provide stable voltage to circuits, ensuring the normal operation of electronic devices. However, the performance of Zener diodes is often affected by temperature. As environmental temperature changes, the voltage stability of Zener diodes may fluctuate, thereby impacting overall circuit performance. To address this issue, temperature compensation technology has emerged.

Firstly, let's understand how temperature specifically affects the performance of Zener diodes. With increasing temperature, the internal resistance of Zener diodes changes, leading to deviations in their voltage regulation. Such deviations can result in unstable voltage within the circuit, affecting the normal operation of devices. This effect is particularly pronounced in applications with stringent requirements for voltage stability, such as precision measurements and communication equipment.

To mitigate the impact of temperature on Zener diode performance, temperature compensation technology is employed. The fundamental principle of temperature compensation involves introducing a compensation circuit that adjusts its parameters according to temperature changes, thereby maintaining the stability of the Zener diode's output voltage.

In practical applications, temperature compensation technology can be implemented through various methods. For instance, thermistors, temperature sensors, and other components can detect environmental temperature and automatically adjust the parameters of the compensation circuit based on these readings. Advanced control algorithms like PID control can also be utilized to achieve more precise temperature compensation.

By employing temperature compensation technology, we effectively eliminate the influence of temperature on the performance of Zener diodes, ensuring stable voltage output across various operating environments. This is crucial for ensuring the normal operation of electronic devices, enhancing their reliability and stability.
