In the expansive world of electronic circuits, Zener diodes play a crucial role in maintaining circuit stability with their unique performance characteristics. Today, we focus on one such high-performance Zener diode — the MMSZ5229B. Known for its precise voltage regulation, high stability, and low reverse current, the MMSZ5229B serves an irreplaceable role across numerous application scenarios.

Slkor Voltage Regulator Diode MMSZ5229B product photo

Precision Stability, Rock-Solid Reliability

At the core of the MMSZ5229B Zener diode lies its nominal 4.3V voltage regulation, providing a reliable reference voltage point crucial for circuit design. In complex electronic systems, stable voltage supply is fundamental for the proper operation of various functional modules. The MMSZ5229B maintains this voltage stability across a wide range of operating conditions with an error margin of just ±5%, a critical feature for circuits requiring high-precision voltage control.

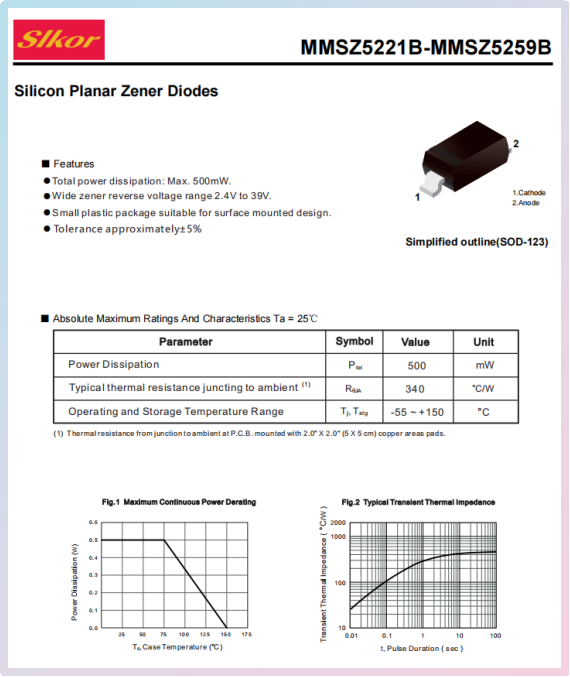

Slkor Voltage Regulator Diode MMSZ5229B specification

High Precision, Low Error

Regarding precision, the ±5% error range of the MMSZ5229B stands out among its peers. This means that in most cases, its actual regulated voltage will fall between 4.085V and 4.515V, offering circuit designers ample margin to account for external environmental changes or component aging. This high-precision characteristic makes the MMSZ5229B an ideal choice for a wide range of precision electronic devices, instruments, and power management circuits.

High Efficiency, Low Power Consumption

While pursuing high stability, the MMSZ5229B also considers power efficiency. With a maximum power dissipation of 500mW, this Zener diode effectively manages energy conversion during normal operation, reducing unnecessary heat loss and prolonging device lifespan. This feature is particularly crucial for electronic devices operating over extended periods or in high-temperature environments.

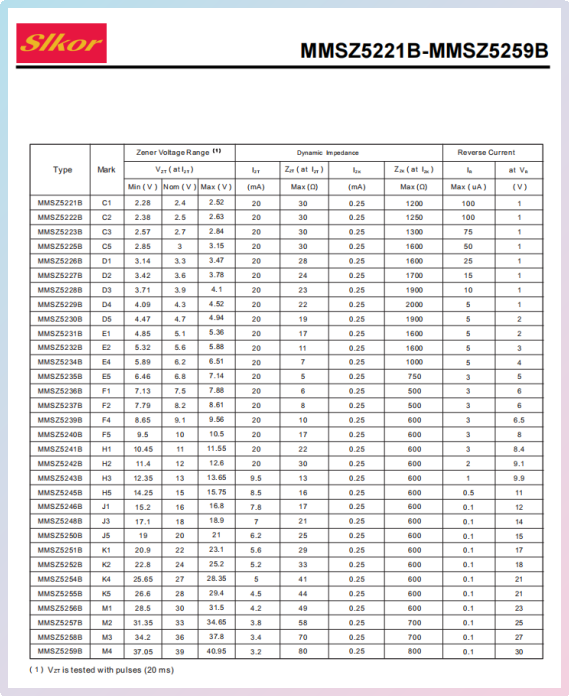

Parameters of Slkor Voltage Regulator Diode MMSZ5229B

Ultra-Low Reverse Current, Enhanced System Efficiency

In addition to the above advantages, the MMSZ5229B boasts ultra-low reverse current characteristics. At a reverse voltage of 1V, its reverse current is merely 5nA (nanoamperes), significantly lower than many comparable products. Low reverse current not only helps minimize energy wastage within circuits but also enhances overall system efficiency and stability. This feature is particularly critical in fields requiring precision measurements and low-power designs.

Wide Applications, Versatile Performance

Thanks to its outstanding performance characteristics, the MMSZ5229B Zener diode finds wide application across multiple fields. Whether in power management for consumer electronics, voltage stabilization in automotive electronic systems, or precision measurements in industrial automation control, its high stability, precision, and low power consumption make it a preferred component for many electronic engineers and designers when constructing complex electronic systems.

The Role of Zener Diodes in the Technological Landscape

Ensuring Stable Circuit Operation

Zener diodes, through their unique voltage regulation properties, ensure electronic devices operate stably under various conditions. They maintain nearly constant voltage at the load terminals, protecting other components from voltage fluctuations. This characteristic makes Zener diodes widely used in power supplies, signal processing, and equipment protection applications.

Providing Stable Voltage References

Zener diodes provide stable voltage references critical for the normal operation and performance of electronic devices. In complex communication systems, signal transmission requires precise voltage, and Zener diodes act as precise regulators ensuring signal quality. Additionally, in automatic control circuits and measurement instruments, stable voltage references are crucial for achieving precise control and measurement.

Protecting Circuits from Overvoltage Damage

In the presence of overvoltage conditions, Zener diodes effectively absorb excess voltage, safeguarding subsequent circuits from damage. This feature is particularly vital in power supplies, amplifiers, and voltage regulators, extending device lifespan and enhancing reliability.

Achieving Voltage Regulation and Conversion

Zener diodes are also used for voltage regulation and conversion purposes. In electronic circuits, it's often necessary to convert one voltage level to another to meet the operational requirements of different components. Zener diodes utilize their voltage regulation characteristics to convert unstable input voltages into stable output voltages, thereby achieving voltage regulation and conversion.
