Introduction:

Zener diodes play a crucial role in electronic circuits, providing voltage regulation, overvoltage protection, and precise voltage references. The MM5Z12V zener diode is a component with specific characteristics that make it suitable for various applications. This article delves into an in-depth analysis of the MM5Z12V zener diode, exploring its parameters, performance, and potential applications.

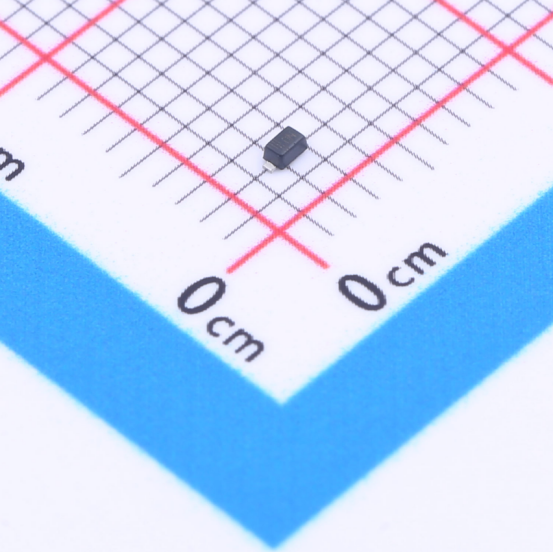

Slkor Voltage Regulator Diode MM5Z12V product photo

MM5Z12V Zener Diode Overview:

The MM5Z12V zener diode is a semiconductor device designed to maintain a stable voltage across its terminals when operated in the breakdown region. Its key parameters define its behavior and suitability for different circuit requirements.

Slkor Zener diode MM5Z12V specification

Key Parameters:

VZTyp (Typical Zener Voltage): The typical zener voltage, VZTyp, for the MM5Z12V is specified as 12V. This parameter represents the expected voltage at which the zener diode begins conducting and provides a relatively constant voltage output.

VZ Range: The allowable zener voltage range for the MM5Z12V is specified as 11.4V to 12.7V. This range accounts for manufacturing tolerances and operating conditions, ensuring that the zener diode's actual voltage characteristics fall within this specified range.

Maximum Power Dissipation (PD): The maximum power dissipation specification of 200mW denotes the highest amount of power that the zener diode can handle without sustaining damage. This parameter is critical for determining the diode's thermal stability and safe operating limits in practical circuits.

Reverse Current (Ir) at 9V: The reverse current specification of 100nA at 9V indicates the small amount of current that flows through the diode in the reverse direction when a reverse bias voltage of 9V is applied. This low reverse current is integral for applications requiring minimal leakage current and high precision.

Dynamic Impedance (Zzt): The dynamic impedance of 25Ω represents the small-signal impedance of the zener diode when it is conducting. This parameter is essential for understanding the diode's behavior under varying AC or small-signal conditions, providing insights into its performance in dynamic circuits.

Parameters of Slkor Zener diode MM5Z12V

Performance and Applications:

The MM5Z12V zener diode's specifications position it as a valuable component for various applications. Its stable zener voltage, wide operating range, low reverse current, and moderate dynamic impedance contribute to its versatility and utility in electronic circuits. Some potential applications of the MM5Z12V zener diode include:

Voltage Regulation: The MM5Z12V can be utilized to provide stable reference voltages in power supplies, voltage regulators, and precision analog circuits, ensuring consistent and reliable voltage levels.

Overvoltage Protection: Due to its specified voltage range and low dynamic impedance, the MM5Z12V offers effective overvoltage protection in electronic circuits, safeguarding sensitive components from voltage spikes and transients.

Precision Circuits: Its low reverse current and precise zener voltage make the MM5Z12V suitable for precision instruments, sensor interfaces, and measurement circuits where accuracy and stability are paramount.

Conclusion:

The MM5Z12V zener diode stands out as a versatile and reliable component with specific characteristics that cater to the needs of modern electronic circuits. Its defined parameters, including typical zener voltage, voltage range, power dissipation, reverse current, and dynamic impedance, enable engineers to design circuits with precise voltage regulation, overvoltage protection, and high precision. Understanding the capabilities and limitations of the MM5Z12V zener diode empowers designers to make informed choices when integrating this component into their electronic systems, ultimately contributing to the creation of robust and efficient circuitry.
