With the continuous development of industrial automation, air compressors, as crucial power equipment, play a vital role in various fields. In the control system of air compressors, solid-state relays, with their high reliability, long lifespan, and low maintenance cost, have gradually replaced traditional mechanical relays. In the implementation of solid-state relays, the application of Medium-Voltage MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) further enhances their performance. This article will explore the application and technological innovation of Medium-Voltage MOSFET in solid-state relays in air compressors.A solid-state relay is a contactless switch that controls circuits through electronic components. Compared to traditional mechanical relays, solid-state relays offer faster response times, higher reliability, and lower energy consumption. In the control system of air compressors, solid-state relays can efficiently and stably control the motor, thereby improving the operational efficiency and lifespan of air compressors.Medium-Voltage MOSFET, as a high-performance power semiconductor device, features low on-state resistance, fast switching speed, and excellent thermal stability. In solid-state relays, Medium-Voltage MOSFET is used as a switching element, controlling the load current with rapid and high-precision by manipulating its gate voltage. In the control system of air compressors, Medium-Voltage MOSFET solid-state relays enable highly precise control of the compressor motor. When the motor needs to start, the Medium-Voltage MOSFET in the solid-state relay quickly conducts to provide the required current; when the motor needs to stop or slow down, the Medium-Voltage MOSFET swiftly turns off, cutting off the current supply. This high-precision control method ensures smoother and more efficient operation of air compressors.Slkor (www.slkoric.com) offers a wide range of superior performance semiconductor products such as high, medium, and low-voltage MOSFETs, thyristors, bridge stacks, power management chips like LDOs, AC-DC converters, ADC chips, and more.

Slkor Semiconductor silicon carbide field-effect transistor

Medium-Voltage MOSFET can enhance the performance of solid-state relays. Firstly, it achieves circuit switching in solid-state relays by controlling its gate voltage. With its extremely low on-state resistance, it can minimize energy loss during circuit conduction, thus improving the energy efficiency of solid-state relays. Secondly, it enables solid-state relays to have a faster response time. In applications where rapid circuit switching is needed, its fast switching characteristics ensure that the solid-state relay can complete circuit switching operations in a short time, meeting real-time control requirements. Additionally, the device's excellent thermal stability contributes to enhancing the reliability of solid-state relays. In high-temperature environments, traditional mechanical relays often encounter problems like contact welding and poor contact, leading to control failures. As a solid-state switch, this device is less affected by temperature, maintaining stable performance in high-temperature environments and thus improving the reliability of solid-state relays.

Slkor Medium Voltage MOSFET 2N7002T product photo

The 2N7002T is an N-channel MOSFET with a 60V drain-source voltage and a continuous drain current of 3A. It is known for its low on-state resistance (3Ω at 4.5V) and relatively low threshold voltage (3V at 250μA). These features make the 2N7002T widely used in solid-state relays for air compressors, especially in applications requiring high efficiency and high-precision control.

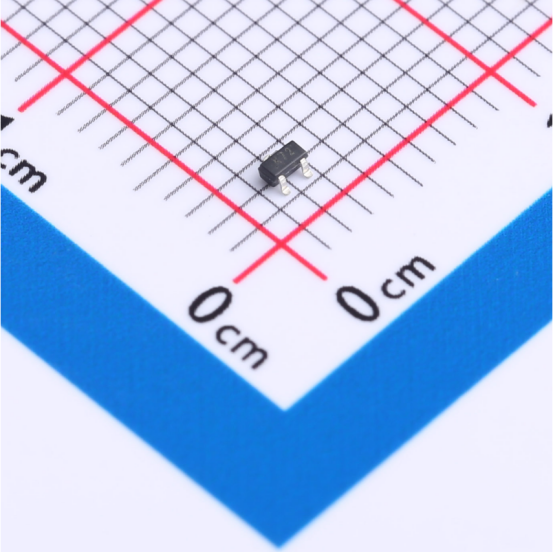

Slkor Medium Voltage MOSFET 2N7002T

The 2N7002T adopts advanced trench power Medium-Voltage MOSFET technology, which optimizes the transistor structure to achieve low on-state resistance and low switching losses simultaneously. This feature allows the MOSFET to reduce energy loss during operation, enhancing overall efficiency. The device features low input capacitance, where the input capacitance (Ciss) is mainly composed of gate-drain capacitance (Cgd) and gate-source capacitance (Cgs). This characteristic results in shorter delay times, enabling quicker response to external signals and improving the overall circuit's operational efficiency. In high-speed circuits, this feature is particularly crucial as it helps reduce signal transmission delays and enhance circuit performance. Low input/output leakage is also a key feature of the 2N7002T. It effectively blocks current flow, reducing energy waste. This not only improves device efficiency but also decreases system heat dissipation, thereby extending the device's lifespan. This is beneficial for applications requiring long-term operation or low power consumption.

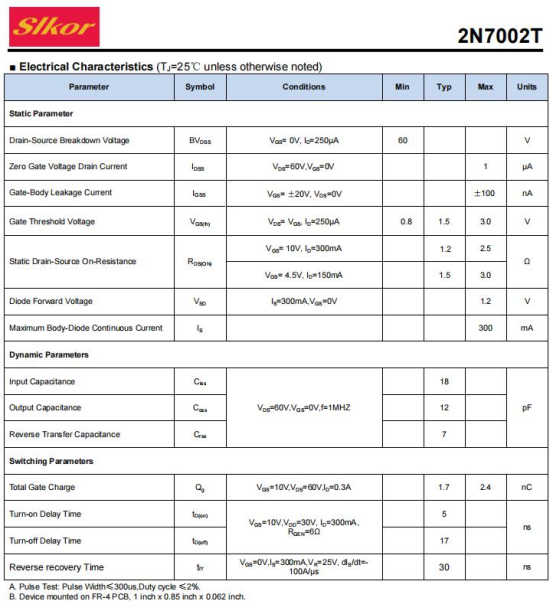

Parameters of Slkor Medium Voltage MOSFET 2N7002T

Medium-Voltage MOSFETs are commonly used in solid-state relays in air compressors. Firstly, they better meet the real-time control requirements of air compressors. Secondly, these devices reduce the energy consumption of solid-state relays, improving the overall system efficiency. Furthermore, the excellent thermal stability of Medium-Voltage MOSFETs enables solid-state relays to maintain stable performance even in high-temperature environments, further expanding their range of applications.

The use of Medium-Voltage MOSFET solid-state relays in air compressor control systems not only enhances system reliability and stability but also reduces maintenance costs. Compared to traditional mechanical relays, solid-state relays do not require regular contact replacement, reducing failures and downtime caused by contact wear. Additionally, due to the long lifespan of Medium-Voltage MOSFETs, the service life of solid-state relays is significantly extended.

With the continuous emergence of new materials and processes, the performance of Medium-Voltage MOSFETs will be further enhanced. Moreover, with the deepening application of intelligent and networked technologies, solid-state relays will gradually achieve intelligent control and networked management. This will make air compressor control systems more efficient, intelligent, and reliable, bringing greater convenience and benefits to industrial production. SLKOR (www.slkoric.com), as a company specializing in the field of power semiconductors, including power devices, transistors, connectors, will continue to play a crucial role. They not only support the rapid development of non-contact technology but also contribute to building a more intelligent, convenient, and secure future life.
