In today's electronic design, voltage regulator diodes play a crucial role by providing a stable voltage reference for circuits, ensuring reliable operation under various conditions. Today, we will delve into the MM1Z5V1B, a notable voltage regulator diode, and explore its unique technical specifications and applications in modern electronic design.

Firstly, let's examine the core technical parameters of the MM1Z5V1B.

This diode has a nominal voltage regulation of 5.1V, meaning it provides a steady 5.1V output under normal operating conditions. Its voltage regulation range is between 4.98V and 5.2V, demonstrating excellent regulation performance and high precision, offering a reliable voltage reference for electronic devices.

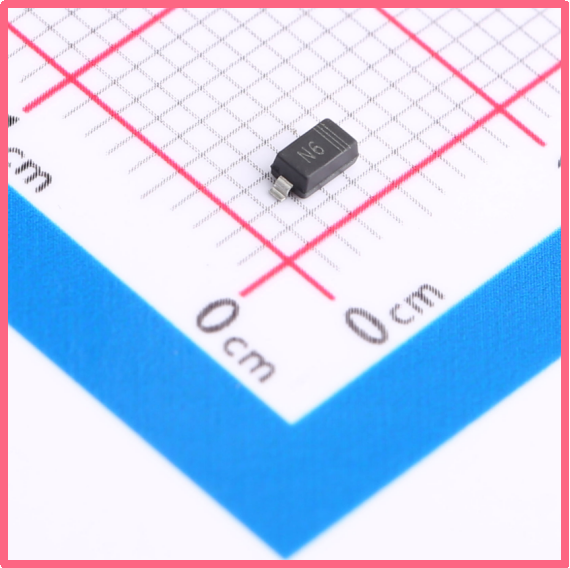

Slkor Voltage Regulator Diode MM1Z5V1B product photo

In addition to its regulation performance, the MM1Z5V1B also boasts a significant power handling capacity, with a rated power of 500mW. This allows it to handle substantial power loads, making it suitable for various high-power applications. This feature sets the MM1Z5V1B apart in the realm of voltage regulator diodes, making it an ideal choice for high-performance electronic devices.

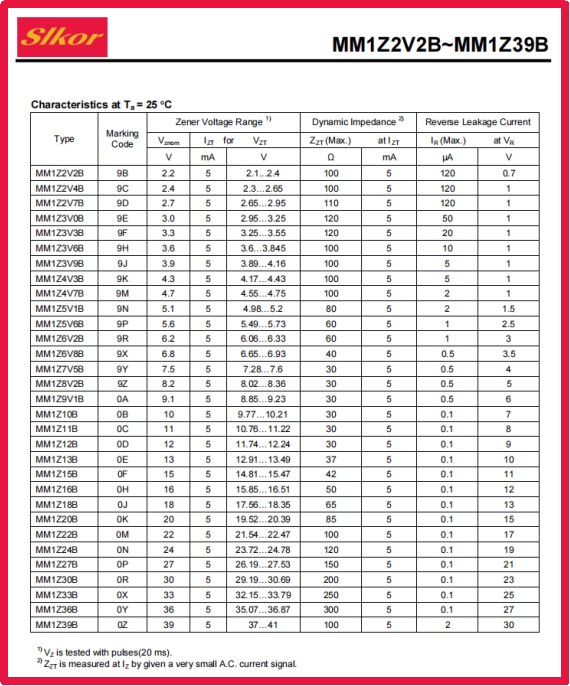

Slkor Voltage Regulator Diode MM1Z5V1B specification

Regarding current, the MM1Z5V1B has a reverse current (Ir) of only 2μA. This low reverse current helps reduce unnecessary power consumption and improves overall circuit efficiency. Additionally, the low reverse current ensures that the diode maintains a low temperature during extended operation, thus extending its lifespan.

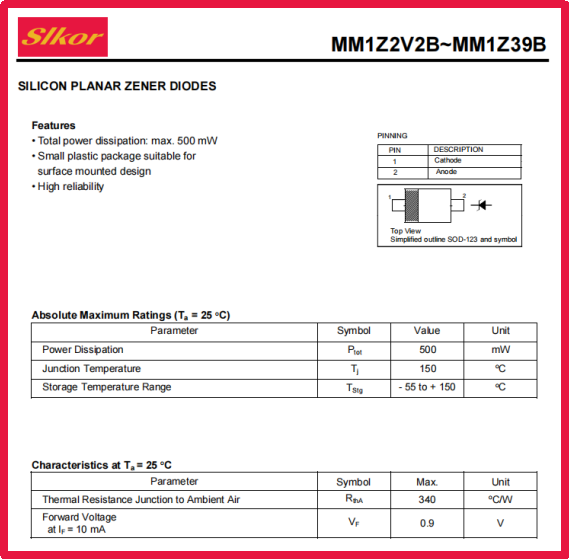

Parameters of Slkor Voltage Regulator Diode MM1Z5V1B

In practical applications, how does the MM1Z5V1B perform? In power management circuits, it can act as a voltage regulator, ensuring stable output voltage even with input voltage fluctuations. In signal processing circuits, it serves as a voltage reference, providing accurate voltage benchmarks for analog-to-digital converters (ADC) or digital-to-analog converters (DAC). Furthermore, in protection circuits, the MM1Z5V1B can prevent overvoltage or overcurrent from damaging sensitive components.

Application of Voltage Regulators in High-Voltage DC (HVDC) Transmission

In HVDC transmission systems, voltage regulator diodes play a critical role. These specialized diodes use their unique regulating characteristics to provide essential voltage stability and circuit protection, ensuring efficient and safe energy transmission.

Firstly, voltage regulator diodes in HVDC systems act as voltage regulators, effectively stabilizing DC voltage. Voltage fluctuations are common in high-voltage DC transmission, caused by factors such as unstable power sources, changes in line impedance, or load variations. Voltage regulator diodes quickly respond to these fluctuations with their precise regulation capabilities, stabilizing the voltage within preset limits and ensuring high-quality energy transmission.

Secondly, voltage regulator diodes also perform crucial protection functions. In HVDC transmission, anomalies like overvoltage or overcurrent can damage equipment or cause system failures. The diode's reverse breakdown characteristics enable it to conduct rapidly when voltage exceeds a certain threshold, thereby limiting further voltage rise and protecting subsequent circuitry. This protection is vital for maintaining the stability and reliability of the entire HVDC system.

Moreover, voltage regulator diodes contribute to improving HVDC system efficiency. By stabilizing voltage and protecting circuits, they reduce energy loss and downtime, thus enhancing transmission efficiency. This is particularly important in long-distance, high-power energy transmission, where even minor efficiency gains can result in significant economic and environmental benefits.
