In the intricate world of electronics, precision is not just desirable; it's essential. Meet the BZT52C3V9 Zener diode, a miniature marvel designed to deliver precise voltage regulation in a wide array of electronic circuits. Let's delve into the specifications and capabilities of this remarkable component.

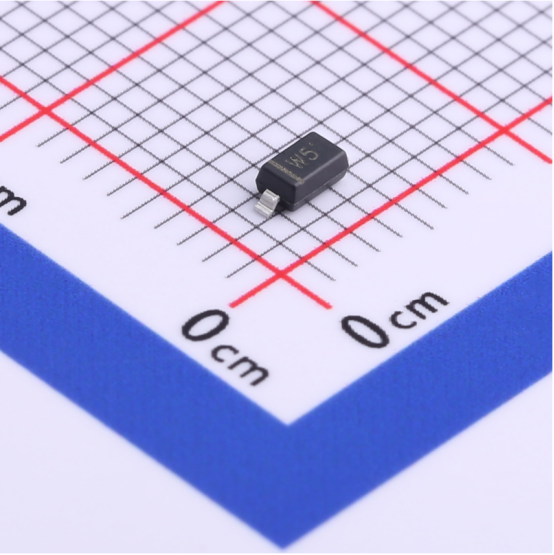

Slkor Voltage Regulator Diode BZT52C3V9 product photo

Features

1. Zener Voltage (VZTyp: 3.9V)

At the core of the BZT52C3V9 lies its defining feature: the Zener voltage. With a typical Zener voltage of 3.9V, this diode offers a stable and reliable reference voltage for precise regulation in electronic circuits. Whether it's maintaining voltage levels in power supplies or providing biasing in amplifier stages, the BZT52C3V9 ensures accuracy and consistency, empowering engineers to design robust and efficient systems.

2. Power Dissipation (PD: 500mW)

Despite its diminutive size, the BZT52C3V9 packs a punch when it comes to power handling. With a power dissipation rating of 500mW, this diode efficiently dissipates heat, ensuring optimal performance even under challenging operating conditions. Whether it's in high-power applications like voltage regulators or current limiters, or in low-power circuits where every milliwatt counts, the BZT52C3V9 proves its mettle, guaranteeing reliability and longevity.

3. Low Reverse Current (Ir: 3μA @ 1V)

In the quest for precision, every microampere matters. The BZT52C3V9 excels in this aspect, boasting an ultra-low reverse current of just 3μA at 1V. This minimal leakage current ensures that the diode maintains its stability over extended periods, minimizing energy wastage and preserving the integrity of electronic systems. Whether it's in battery-powered devices where efficiency is paramount or in precision instrumentation where accuracy is non-negotiable, the BZT52C3V9 shines, delivering consistent performance with minimal deviation.


Slkor Voltage Regulator Diode BZT52C3V9 specification

Applications Across Industries

The versatility of the BZT52C3V9 extends across a myriad of industries and applications:

Telecommunications: In communication systems, the diode stabilizes voltage fluctuations, ensuring reliable transmission and reception of signals.

Automotive Electronics: From engine control units to infotainment systems, the BZT52C3V9 provides precise voltage references, enhancing the performance and reliability of automotive electronics.

Medical Devices: In medical equipment such as patient monitors and diagnostic devices, the diode plays a critical role in maintaining stable power supplies, ensuring accurate readings and patient safety.

Renewable Energy: In solar power inverters and wind turbine controllers, the BZT52C3V9 regulates voltage, maximizing energy efficiency and reliability in renewable energy systems.

Conclusion

In a world driven by precision and innovation, the BZT52C3V9 Zener diode stands as a beacon of reliability and accuracy. Its precise Zener voltage, robust power handling, and ultra-low reverse current make it an indispensable component in a vast array of electronic applications. As engineers continue to push the boundaries of technology, the BZT52C3V9 remains a trusted ally, unlocking new possibilities and ensuring excellence in electronic design.

 Parameters of Slkor Voltage Regulator Diode BZT52C3V9

What is the advantages of Slkor products？

Slkor’s products are diverse and comprehensive, presented in a series. Slkor has accumulated strength and developed rapidly, with short R&D cycles and continuous iteration of products, constantly launching new products. Slkor has a clear development strategy, reasonable technical layout and cost control, and the company’s overall competitiveness is gradually improving. In the Internet era, Slkor has cracked the code of Internet development, and its ability to respond quickly and serve customers is another advantage.

About Slkor：

Slkor has research and development offices in Busan, South Korea, Beijing, China, and Suzhou, China. Most of the wafer manufacturing and packaging and testing are carried out within China. The company employs and collaborates with individuals and organizations worldwide, with a laboratory for product performance and reliability testing and a central warehouse located at its headquarters in Shenzhen. Slkor has filed for over a hundred invention patents, offers more than 2,000 product models, and serves over ten thousand customers globally. Its products are exported to countries and regions including Europe, the Americas, Southeast Asia, and the Middle East, making it one of the rapidly growing semiconductor companies in recent years. With well-established management systems and streamlined workflows, Slkor has rapidly enhanced the brand awareness and reputation of its "SLKOR" brand through its outstanding quality and standardized services. Its product range includes three major series: diodes, transistors, and power devices, with recent introductions of new products such as Hall elements and analog devices, expanding its presence in sensors, Risc-v microcontrollers, and other product categories.

BZT52C3V9To Product Page
