Introduction:

Zener diodes are fundamental components in electronic circuits, providing voltage regulation, overvoltage protection, and reference voltage generation. The ZMM6V2 zener diode is a vital semiconductor device with specific parameters that define its behavior and suitability for diverse applications. This article offers an in-depth analysis of the ZMM6V2 zener diode, delving into its key parameters, performance characteristics, and potential applications.

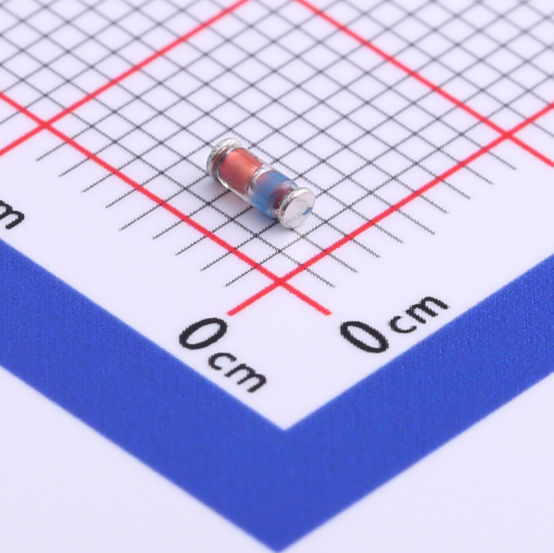

Slkor Voltage Regulator Diode ZMM6V2 product photo

Overview of ZMM6V2 Zener Diode:

The ZMM6V2 zener diode is designed to maintain a stable voltage across its terminals when operated in the breakdown region. Its distinct parameters play a critical role in determining its functionality and application-specific considerations.

Slkor Zener diode ZMM6V2 specification

Key Parameters:

VZTyp (Typical Zener Voltage): The typical zener voltage, VZTyp, for the ZMM6V2 is specified as 6.2V. This parameter signifies the expected voltage at which the zener diode initiates conduction and provides a relatively constant voltage output.

Maximum Power Dissipation (PD): The ZMM6V2 zener diode exhibits a maximum power dissipation capability of 500mW. This specification indicates the highest amount of power that the diode can dissipate without sustaining damage, offering insights into its thermal handling capacity and safe operational limits in practical circuits.

Reverse Current (Ir) at 2V: At a reverse bias voltage of 2V, the ZMM6V2 zener diode demonstrates a reverse current of 100nA. This parameter represents the minimal amount of current that flows through the diode in the reverse direction, signifying low leakage current and suitability for high-precision applications.

Parameters of Slkor Zener diode ZMM6V2

Performance and Applications:

The ZMM6V2 zener diode's specifications position it as a valuable component for various electronic applications. Its stable zener voltage, substantial power dissipation capability, and low reverse current make it well-suited for diverse circuit requirements. Some potential applications of the ZMM6V2 zener diode include:

Voltage Regulation: The ZMM6V2 can be employed in voltage regulation circuits, such as voltage references, voltage clamps, and power supplies, ensuring stable and consistent voltage levels in electronic systems.

Overvoltage Protection: Due to its defined zener voltage and robust power dissipation, the ZMM6V2 offers effective protection against overvoltage events, safeguarding sensitive components from voltage surges and transients.

Precision Instrumentation: Its low reverse current and stable zener voltage make the ZMM6V2 suitable for precision measuring instruments, sensor interfaces, and data acquisition systems, where accuracy and reliability are paramount.

Conclusion:

The ZMM6V2 zener diode emerges as a versatile and dependable component with specific characteristics that cater to the demands of modern electronic circuits. Its typical zener voltage, power dissipation capability, and reverse current specifications enable engineers to design circuits with precise voltage regulation, overvoltage protection, and high precision. Understanding the capabilities and limitations of the ZMM6V2 zener diode empowers designers to make informed decisions when integrating this component into their electronic systems, contributing to the creation of resilient and efficient circuitry.
