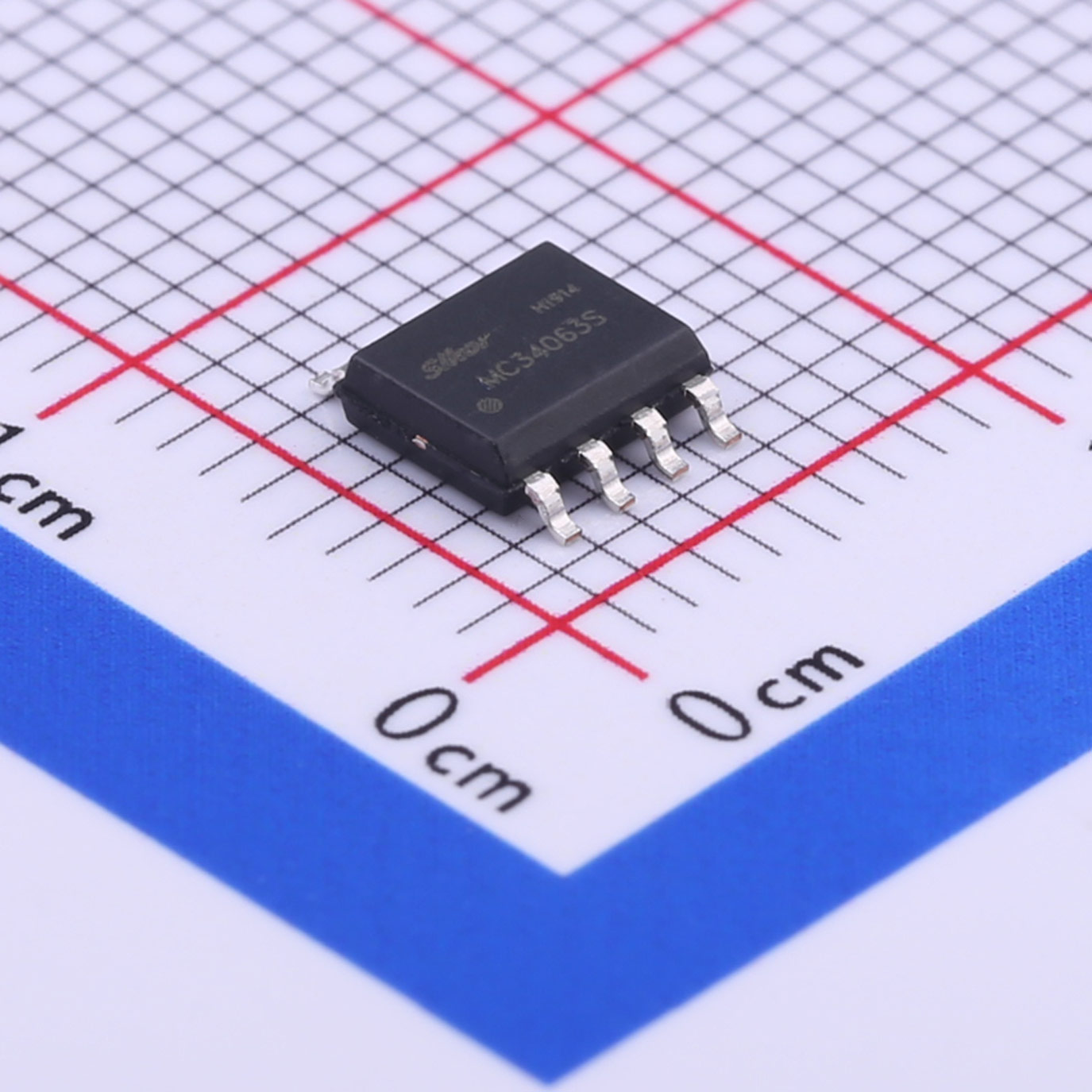

Today, we will introduce the MC34063 DC to DC Converter.

Description

The MC34063 is a monolithic regulator subsystem, intended for use as DC to DC converter. This device contains a temperature compensated band gap reference, a duty-cycle control oscillator, driver and high current output switch. It can be used for step down, step-up or inverting switching regulators as well as for series pass regulators.

Features

● Operation from 3.0V to 40V.

● Short circuit current limiting.

● Low standby current.

● Output switch current of 1.5A without external transistors.

● Frequency of operation from 100Hz to 100kHz.

● Step-up,step-down or inverting switch regulators.

The SLKOR DC-DC power chip MC34063 is an excellent product. It is a single-chip regulator subsystem designed to be used as a DC to DC converter. This device includes a temperature compensated bandgap reference, duty cycle controlled oscillator, driver, and high current output switch, which can be used for step-down, step-up, or inverting switching regulators as well as series regulators. Compared to other DC-DC converter chips, the advantages of the MC34063 lie in its efficiency, low cost, and reliability. The chip employs advanced technology, featuring a high energy conversion rate and low power consumption characteristics. In addition, the design of the MC34063 is simple and easy to implement, which can reduce production costs and maintenance costs.

The MC34063 is a powerful DC-DC power chip with numerous outstanding features. It has a wide operating voltage range, from 3.0V to 40V, making it suitable for a variety of different power supply applications. Secondly, the MC34063 has short-circuit current limiting and low standby current characteristics. Short-circuit current limiting means that when the load is short-circuited, the chip can automatically limit the output current to prevent circuit overload and damage. The low standby current characteristic means that the current consumed in the non-working state is very low, which helps to save energy and extend battery life. Another notable feature is that the MC34063 can output up to 1.5A of switch current, which can meet the needs of many high-power applications, such as motor drives, LED lighting, etc. The MC34063 also has a wide operating frequency range from 100Hz to 100kHz and supports step-up, step-down, or inverting switching regulators.

In practical applications, the MC34063 can be widely used in power management, LED driving, battery charging, and automotive electronics, among other fields. For example, in power management, it can be used for low-voltage power management, such as battery-powered systems, solar panels, and wireless sensor networks, etc. In LED driving, it can be used for LED light strips, LED displays, and LED lighting, etc. In terms of battery charging, the MC34063 can be used for lithium-ion battery chargers and nickel-hydrogen battery chargers, etc.

In addition to the MC34063, SLKOR also has many other excellent power IC products. For instance, DC-DC power chip products like LM2596SX-12, LM2596SX-ADJ, LM2577S-ADJ, SL2733, LM2596S-ADJ, LM2596S-12, LM2596S-5.0, and LM2576S-3.3 also possess exceptional performance and reliability, providing high-efficiency power solutions for electronic devices in various fields.
