Introduction:

Zener diodes play a crucial role in modern electronics, providing precise voltage regulation and protection against voltage fluctuations. The ZMM9V1 Zener diode is a highly regarded component known for its precision, power dissipation capability, and minimal current leakage. This article aims to delve into the key specifications of the ZMM9V1, including its typical voltage, power dissipation, current leakage, and their significance in electronic circuit design.

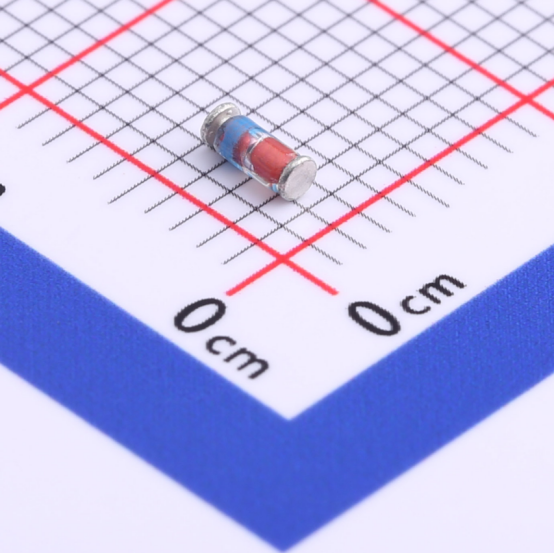

Slkor Voltage Regulator Diode ZMM9V1 product photo

ZMM9V1 Overview:
The ZMM9V1 Zener diode serves as a dependable voltage regulator, maintaining a constant voltage across its terminals, irrespective of variations in input voltage or load conditions. It finds widespread application in voltage stabilization, voltage clamping, and transient suppression, making it an essential component in electronic designs.

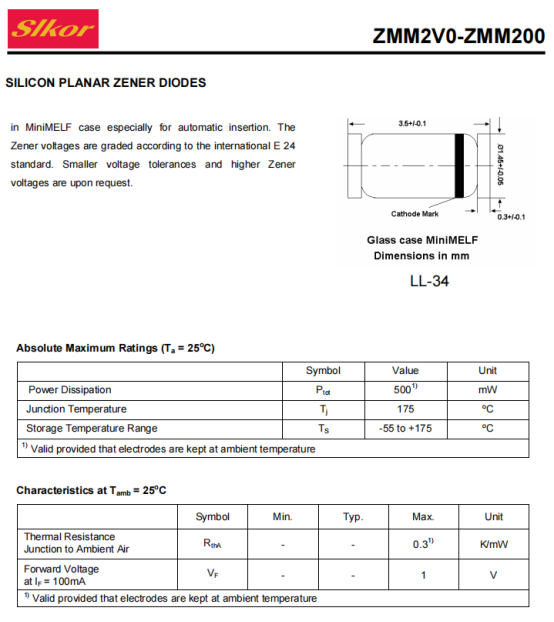

Slkor Zener diode ZMM9V1 specification

Typical Voltage (VZTyp):

At the heart of the ZMM9V1 lies its typical Zener voltage (VZTyp) of 9.1V. This characteristic denotes the voltage at which the diode initiates the regulation of current flow, ensuring a stable voltage output despite fluctuations in the input voltage or varying load conditions.

Power Dissipation (PD):

The ZMM9V1 exhibits a power dissipation rating of 500mW, indicating its ability to dissipate heat efficiently while maintaining stable voltage regulation. This feature makes it suitable for applications where heat dissipation is critical, ensuring reliable performance under diverse operating conditions.

Current Leakage (Ir):

The ZMM9V1 showcases minimal current leakage, with a maximum leakage current (Ir) of 100nA at 6.8V. Low current leakage minimizes power loss and enhances circuit efficiency, making the diode an ideal choice for power-sensitive applications where energy conservation is paramount.

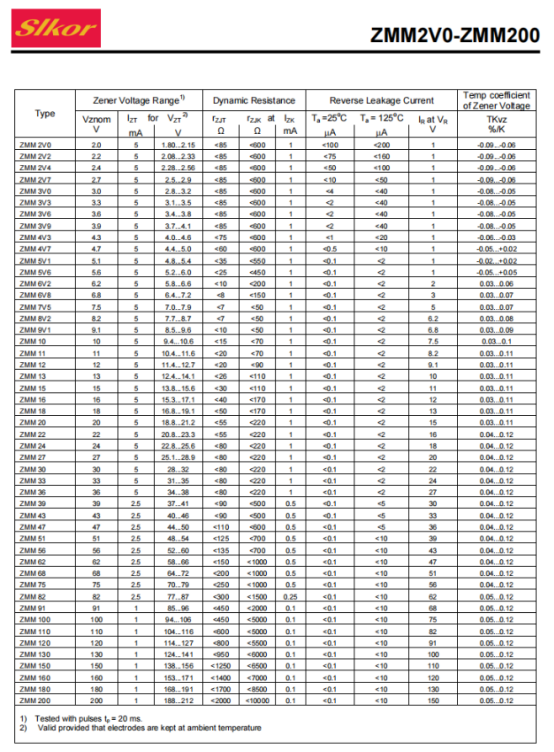

Parameters of Slkor Zener diode ZMM9V1

Conclusion:
The ZMM9V1 Zener diode emerges as a precision voltage regulator, offering stable voltage regulation, robust power dissipation capability, and minimal current leakage. With its typical voltage of 9.1V, 500mW power dissipation rating, and 100nA current leakage at 6.8V, it proves to be an indispensable component in modern electronic circuits. Whether it's stabilizing voltage levels in power supplies, safeguarding sensitive components from voltage spikes, or ensuring the integrity of communication systems, the ZMM9V1 delivers reliable performance and plays a pivotal role in maintaining the stability and efficiency of electronic systems.

Note: For comprehensive specifications and application guidelines pertaining to the ZMM9V1 Zener diode, users are advised to refer to the datasheet and consult the manufacturer.
