【Daily Highlight】The Voltage Regulator Diode BZT52C24

release time:2024-05-21Author source:SlkorBrowse:6296

Introduction:

Zener diodes play a critical role in electronic circuits, providing precise voltage regulation, overvoltage protection, and stable reference voltages. The BZT52C24 zener diode is a fundamental semiconductor device with specific parameters that define its behavior and suitability for various applications. This article offers a comprehensive analysis of the BZT52C24 zener diode, delving into its key parameters, performance characteristics, and potential applications.

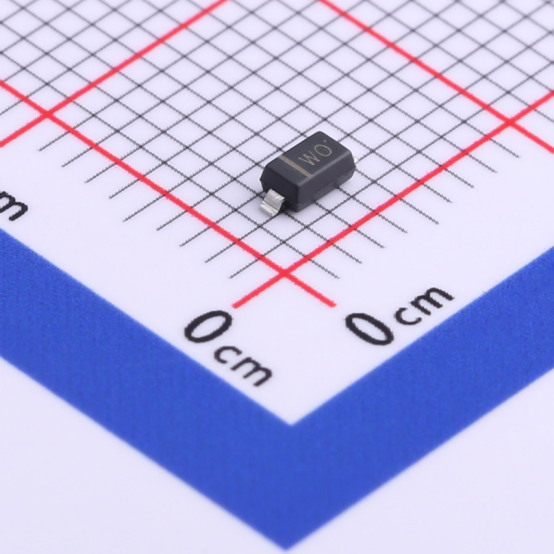

Slkor Voltage Regulator Diode BZT52C24 product photo



Overview of BZT52C24 Zener Diode:

The BZT52C24 zener diode is designed to maintain a stable voltage across its terminals when operated in the breakdown region. Its distinctive parameters play a pivotal role in defining its functionality and relevance for diverse circuit requirements.




Slkor Voltage Regulator Diode BZT52C24 specification



Key Parameters:



VZTyp (Typical Zener Voltage): The typical zener voltage, VZTyp, for the BZT52C24 is specified as 24V. This parameter indicates the expected voltage at which the zener diode begins conducting, providing a relatively constant voltage output.



Maximum Power Dissipation (PD): The BZT52C24 zener diode exhibits a maximum power dissipation capability of 500mW. This specification represents the highest amount of power that the diode can dissipate without sustaining damage, offering insights into its thermal handling capacity and safe operational limits in practical circuits.



Reverse Current (Ir) at 16.8V: At a reverse bias voltage of 16.8V, the BZT52C24 zener diode demonstrates a reverse current of 100nA. This parameter reflects the minimal amount of current that flows through the diode in the reverse direction, indicating low leakage current and suitability for high-precision applications.




Parameters of Slkor Voltage Regulator Diode BZT52C24



Performance and Applications:

The BZT52C24 zener diode's specifications position it as a valuable component for various electronic applications due to its stable zener voltage, robust power dissipation capability, and low reverse current. Some potential applications of the BZT52C24 zener diode include:



Voltage Regulation: The BZT52C24 can be used in voltage regulation circuits, voltage references, and power supplies to ensure stable and consistent voltage levels in electronic systems, especially in systems requiring a 24V reference voltage.



Overvoltage Protection: With its high power dissipation capability, the BZT52C24 offers effective protection against overvoltage events, safeguarding sensitive components from voltage spikes and transients in systems operating with a 24V power supply.



Precision Instrumentation: The low reverse current and stable zener voltage make the BZT52C24 suitable for precision measuring instruments, sensor interfaces, and data acquisition systems that demand accuracy and reliability at a 24V bias.



Conclusion:

The BZT52C24 zener diode stands as a fundamental component with specific characteristics that cater to the demands of modern electronic circuits. Its typical zener voltage, power dissipation capability, and reverse current make it well-suited for diverse circuit requirements, including voltage regulation, overvoltage protection, and high precision at a 24V reference. Understanding the capabilities and limitations of the BZT52C24 zener diode empowers engineers to make informed decisions when integrating this component into their electronic systems, leading to the creation of resilient and efficient circuitry.
