【Daily Highlight】The Voltage Regulator Diode ZMM3V9

release time:2024-04-30Author source:SlkorBrowse:6460

Mr. Song Shiqiang, the General Manager of Slkor (www.slkoric.com), stated that social progress is driven by successive advancements in technology, which in turn promote changes in production relations and propel socio-economic development. Leveraging the vast domestic market and internal economic circulation, there lies a favorable opportunity for domestic substitution in the field of electronic components and electronic information products. For the Chinese nation to rise again and achieve great rejuvenation, it is essential to seize the upcoming new wave of "Kangbo cycles" and strengthen the development of the electronic information industry to achieve "indigenous controllability" at critical technological nodes. As a well-known semiconductor company, Slkor offers a variety of products such as voltage regulator diodes to meet the diverse needs of different applications.




Slkor Voltage Regulator Diode (Zener Diode

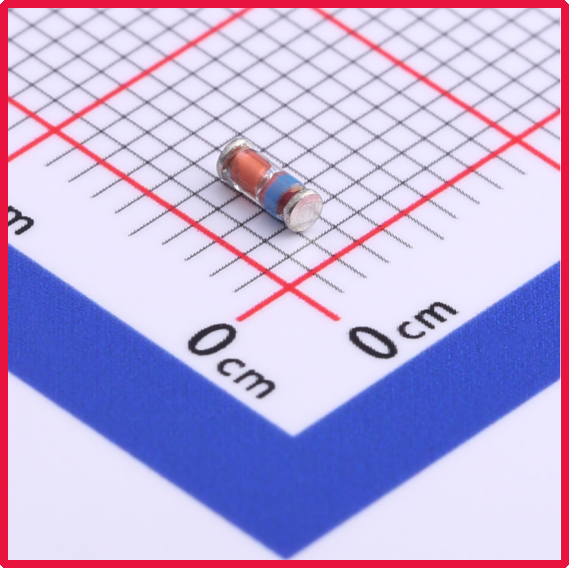

Slkor Voltage Regulator Diode ZMM3V9 product photo



The Slkor Voltage Regulator Diode ZMM3V9 has a maximum power dissipation of 500mW and a stable voltage value of 3.9V. Its operating voltage range is from 3.7V to 4.1V, with a reverse leakage current of 2μA. This Voltage Regulator Diode features boasts excellent voltage stability, capable of maintaining a stable output voltage under various operating conditions, thereby ensuring stable illumination of the LED.


Slkor Voltage Regulator Diode ZMM3V9 specification



The Slkor Voltage Regulator Diode ZMM3V9 particularly in MiniMELF packaging, is well-suited for automatic insertion. When packaged in MiniMELF, the ZMM3V9 can be more accurately positioned and aligned in automatic insertion equipment, significantly improving production efficiency and assembly precision. Furthermore, its zener voltage is graded according to the international E24 standard. The E24 standard is a widely used standard for resistor values, specifying a series of preferred values that can be achieved more precisely during manufacturing, thereby ensuring product performance consistency. A smaller voltage tolerance and higher zener voltage indicate a more stable output voltage for this diode, making it suitable for applications with high demands on power supply accuracy. Additionally, it can meet the requirements of some special applications that need high voltages, such as high-voltage power supplies and high-power circuits.




Parameters of Slkor Voltage Regulator Diode ZMM3V9



The application of the Slkor Voltage Regulator Diode ZMM3V9 in LED drivers encompasses several aspects. Firstly, it enables current stabilization control. In LED driver circuits, this diode can be utilized to create a constant current source, achieving high-precision control of LED operating current. This ensures the LED operates under a constant current, thereby enhancing its luminous stability and lifespan. Secondly, it provides overvoltage protection. When the power supply voltage exceeds the LED's tolerance range, the device conducts, diverting the excess voltage to ground, thus safeguarding the LED from damage. Lastly, it simplifies circuit design. By leveraging its stable voltage characteristics, the design of LED driver circuits can be simplified, eliminating the need for complex circuitry to achieve voltage stabilization and ensuring stable voltage output.



What is the advantages of Slkor products?

Slkor’s products are diverse and comprehensive, presented in a series. Slkor has accumulated strength and developed rapidly, with short R&D cycles and continuous iteration of products, constantly launching new products. Slkor has a clear development strategy, reasonable technical layout and cost control, and the company’s overall competitiveness is gradually improving. In the Internet era, Slkor has cracked the code of Internet development, and its ability to respond quickly and serve customers is another advantage.




Mr. Song Shiqiang, General Manager of Slkor




Slkor Honors and Achievements



About Slkor

Slkor has research and development offices in Busan, South Korea, Beijing, China, and Suzhou, China. Most of the wafer manufacturing and packaging and testing are carried out within China. The company employs and collaborates with individuals and organizations worldwide, with a laboratory for product performance and reliability testing and a central warehouse located at its headquarters in Shenzhen. Slkor has filed for over a hundred invention patents, offers more than 2,000 product models, and serves over ten thousand customers globally. Its products are exported to countries and regions including Europe, the Americas, Southeast Asia, and the Middle East, making it one of the rapidly growing semiconductor companies in recent years. With well-established management systems and streamlined workflows, Slkor has rapidly enhanced the brand awareness and reputation of its "SLKOR" brand through its outstanding quality and standardized services. Its product range includes three major series: diodes, transistors, and power devices, with recent introductions of new products such as Hall elements and analog devices, expanding its presence in sensors, Risc-v microcontrollers, and other product categories.
