【Daily Highlight】BZT52B27BS: Precision Voltage Regulator Solution

release time:2024-08-17Author source:SlkorBrowse:3003

In the world of electronics, voltage regulation diodes play a crucial role by providing a stable voltage output to ensure the proper functioning of electronic devices. Today, we will explore the exceptional performance of the BZT52B27BS, a voltage regulator diode that offers unparalleled stability and reliability for your circuit designs.



First, let’s focus on the core technical specifications of the BZT52B27BS. This voltage regulator diode has a nominal voltage of 27V, which means it can provide a stable 27V voltage output in your circuit. Its voltage regulation range is controlled between 26.46V and 27.54V, indicating extremely high stability. This stability is attributed to its ±5% precision, which ensures accuracy and consistency in the output voltage.

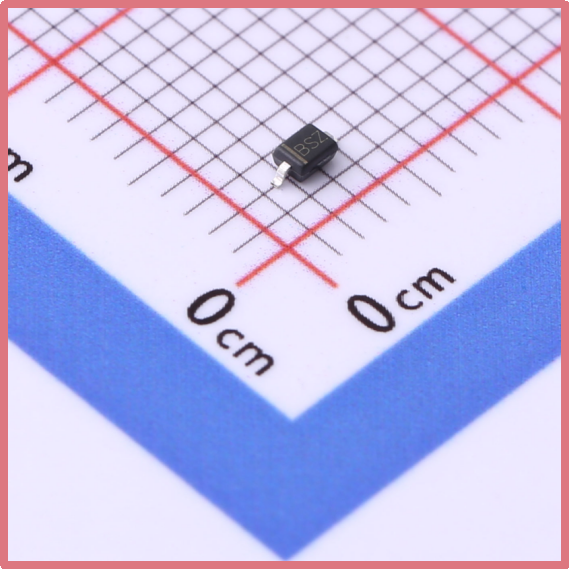

Slkor Voltage Regulator Diode BZT52B27BS product photo



In terms of power, the BZT52B27BS has a rated power of 400mW, allowing it to maintain stable performance under higher power loads, making it well-suited for circuits that require high power output. Additionally, this diode features an extremely low reverse current (Ir) of just 0.045μA, which helps reduce unnecessary power consumption and improves the overall efficiency of the circuit.

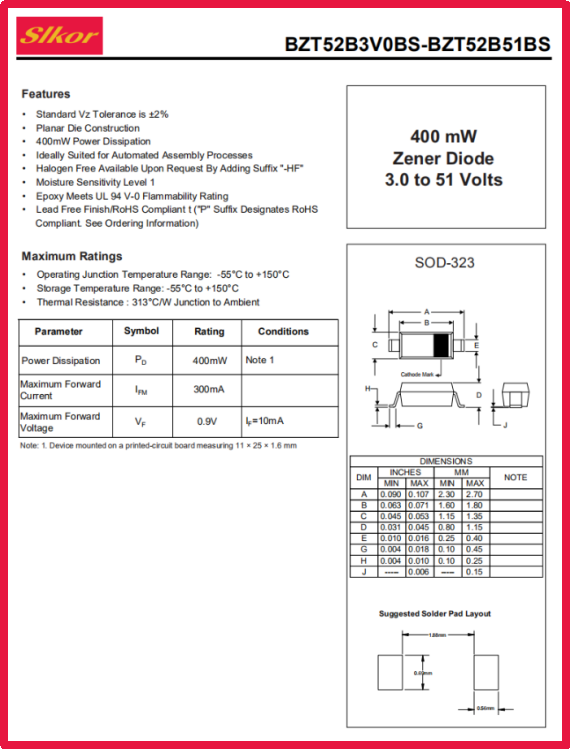

Slkor Voltage Regulator Diode BZT52B27BS specification



So, how do these technical parameters affect the performance of the BZT52B27BS? First, the high precision of the voltage regulation ensures the stability of the output voltage, providing a reliable working environment for other components in the circuit. Second, the higher rated power enables the diode to handle greater current and voltage fluctuations, thus maintaining stable performance in various complex environments. Lastly, the very low reverse current helps reduce power consumption, enhancing the overall efficiency of the circuit and extending the device’s lifespan.

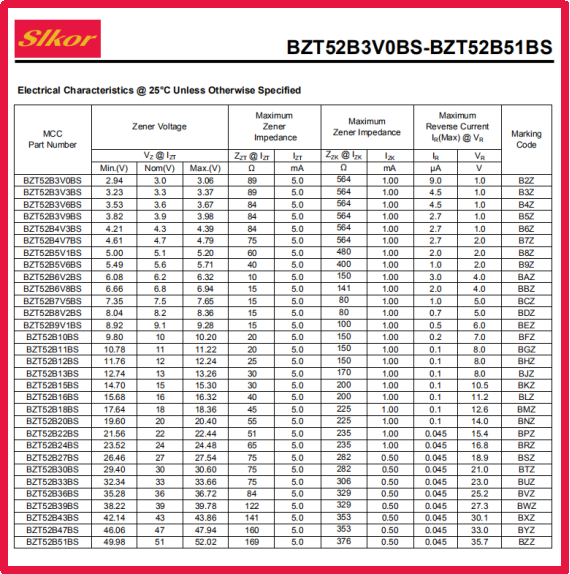

Parameters of Slkor Voltage Regulator Diode BZT52B27BS



The potential applications of the BZT52B27BS in circuit design are quite broad. For example, in power management circuits, it can act as a voltage regulation component to ensure the stability of the power output; in signal processing circuits, it can protect sensitive components from voltage fluctuations; and in amplifier circuits, it can serve as a reference voltage source to improve amplifier performance.



To provide a more tangible example of the BZT52B27BS's real-world application, consider a high-precision measurement device’s power management system where the BZT52B27BS is used as the primary voltage regulator. By monitoring and recording the device’s voltage output data in real-time, we found that the BZT52B27BS maintains a stable output voltage over extended periods, offering a reliable operating environment for the measurement equipment.



Application of Voltage Regulators in Wireless Charging Technology

In wireless charging technology, voltage regulators play a vital role in maintaining voltage stability and protecting the circuit.



Firstly, a voltage regulator diode ensures that the voltage across the load remains stable even when there are fluctuations in the power supply voltage or other factors affecting the circuit. This stability is crucial for wireless charging devices as it ensures consistent current and voltage during the charging process, thereby protecting both the battery and the device from damage.



Secondly, a voltage regulator diode can also protect the circuit. At the receiving end of wireless charging, when the voltage becomes too high, the voltage regulator diode can limit further voltage increases, preventing damage to other components in the circuit due to overvoltage. This protective function is important for extending the device’s lifespan and ensuring safe charging.



For instance, in certain wireless charging schemes, a voltage regulator diode is used to boost the output voltage. By placing it in series between the regulator and ground, the output voltage can be increased to meet the charging needs of specific devices. Additionally, power management chips often include voltage regulation circuits, using components like voltage regulator diodes to ensure the stability and safety of the charging process.
