In the rapid development of modern electronics, the Zener diode plays a crucial role as an essential electronic component widely used in various circuits to stabilize voltage. Among them, the Zener diode BZX84C12, with its unique performance characteristics, plays an indispensable role in circuits. This article provides a detailed technical analysis of the Zener diode BZX84C12.

Overview

The Zener diode BZX84C12 is designed for independent configuration, meaning it can be used alone in circuits without additional auxiliary circuits to achieve voltage stabilization. Its rated Zener voltage is 12V, indicating that under normal operating conditions, the diode can maintain a stable output voltage of 12V. Additionally, its Zener voltage range spans from 11.4V to 12.7V, demonstrating a certain tolerance to accommodate different operating environments and circuit requirements.

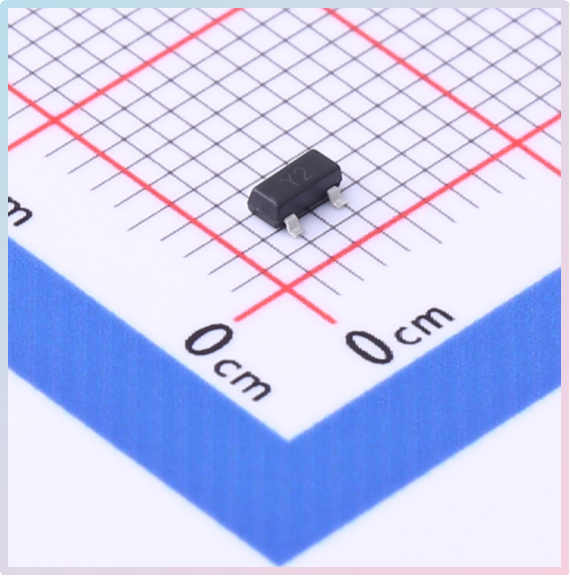

Slkor Voltage Regulator Diode BZX84C12 product photo

Power and Reverse Current

The power rating of the BZX84C12 Zener diode is 300mW, meaning it can withstand a maximum power dissipation of 300 milliwatts under normal operating conditions. This parameter is critical for circuit designers as it determines the maximum load capacity of the diode in the circuit. Additionally, the reverse current (Ir) is the current flowing through the Zener diode under reverse bias conditions. The BZX84C12 has a reverse current of 100nA at 8V, indicating that at a reverse bias voltage of 8V, the reverse current is 100 nA. This parameter reflects the leakage current of the diode under reverse bias conditions, which significantly affects circuit stability and accuracy.

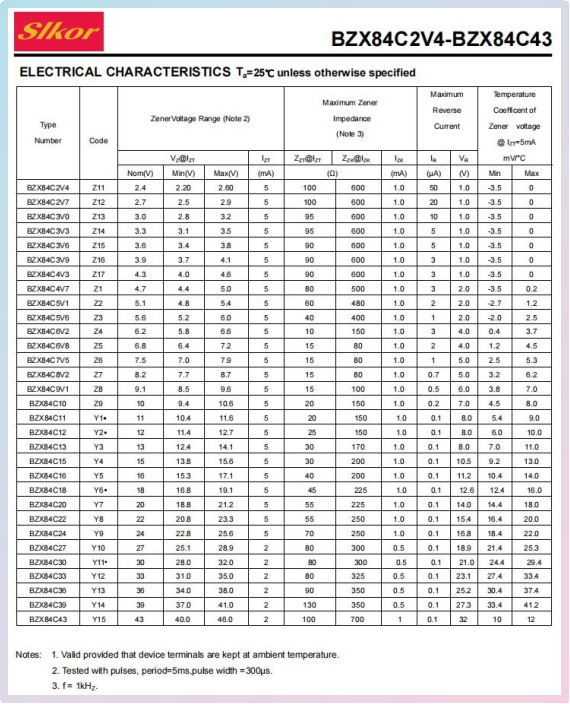

Slkor Voltage Regulator Diode BZX84C12 specification

Impedance Characteristics

Impedance (Zzt) is an important parameter of Zener diodes, reflecting the internal resistance of the diode under Zener stabilization. The impedance of the BZX84C12 is 25Ω, a relatively small value that helps reduce energy loss and heating issues within the circuit. A lower impedance also enhances circuit stability and response speed.

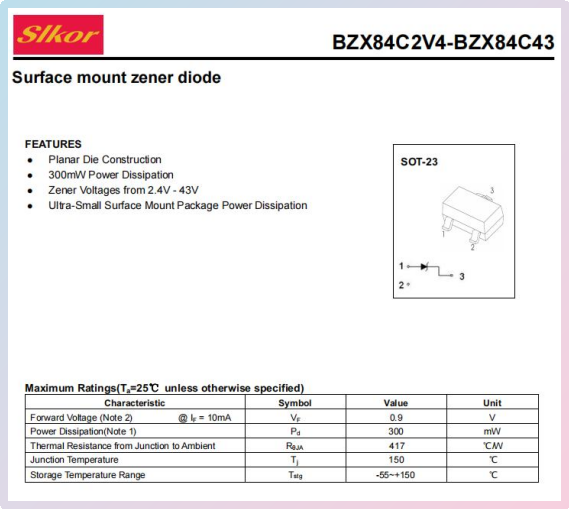

Parameters of Slkor Voltage Regulator Diode BZX84C12

Applications

Due to its unique performance characteristics, the BZX84C12 Zener diode finds wide application in circuits requiring stable voltage. For instance, it plays a crucial role in power supplies, signal processing circuits, communication circuits, and more. It effectively protects other components in the circuit from excessive voltage fluctuations, thereby improving circuit stability and reliability.

Technological Innovation of Zener Diodes

Technological innovation in Zener diodes encompasses performance enhancement, expansion of application areas, and environmental sustainability. Here is a detailed explanation of technological innovations in Zener diodes:

Performance Enhancement:

● Optimization of the Zener effect: Zener diodes utilize the Zener effect for voltage stabilization. With advancements in technology, improvements in PN junction structure, doping concentration, and other parameters have enhanced Zener voltage stability and accuracy.

● Increased power dissipation capability: Modern Zener diodes can handle higher power dissipation, such as the BZT52C39 Zener diode with a power rating of 500mW, meeting the requirements of high-power electronic devices.

● Enhanced reverse blocking capability:When the reverse voltage reaches a certain level, the reverse current of Zener diodes is effectively limited. For instance, the BZT52C39 exhibits a reverse current of only 100nA at a reverse voltage of 27.3V, demonstrating excellent reverse blocking capability.

Expansion of Application Areas:

● Automotive electronics: With the popularity of new energy vehicles, Zener diodes are increasingly used in battery management systems and motor control systems, providing stable voltage support for electric vehicles and hybrid vehicles.

● Internet of Things (IoT) and smart homes:In emerging fields such as IoT and smart homes, Zener diodes play a crucial role in providing stable power supply for various smart devices.

● Communication equipment and power management: Zener diodes have long been used in communication equipment and power management systems, ensuring stable operation of devices in complex environments.

Environmental Protection and Sustainable Development:

● Use of eco-friendly materials: Modern Zener diodes employ eco-friendly materials and manufacturing processes, reducing environmental impact and promoting the green and sustainable development of the electronics industry.

● Low power consumption and high efficiency: The low power consumption and high efficiency characteristics of Zener diodes contribute to reducing energy consumption and carbon emissions, aligning with current trends in energy conservation and emission reduction.

Industry Trends and Market Size:

● Market size growth: With the rapid development of the electronics industry, the market size of Zener diodes (glass encapsulated low leakage) is expanding continuously. According to QYResearch's research report, the global market size of Zener diodes is projected to increase from $224.96 million in 2023 to $348.16 million by 2030.

● Drive from Technological Innovation:Technological innovation is a key factor driving the development of the Zener diode industry. In the future, the Zener diode industry will continue to focus on enhancing product performance and stability to meet the diverse demands of various application scenarios.
