In the world of semiconductors, Zener diodes play an indispensable role, providing essential stability for circuit operation. Today, we focus on the highly praised MM1Z4V7B Zener diode, delving into its key parameters to showcase its exceptional performance and stability.

1. Voltage Regulation Exploration

The voltage regulation value is the core performance metric of a Zener diode. The MM1Z4V7B has a nominal voltage regulation value of 4.7V, offering stable voltage support for electronic devices. Notably, its regulation range is precisely controlled between 4.55V and 4.75V, highlighting the product's outstanding voltage accuracy and stability. In applications sensitive to voltage fluctuations, the MM1Z4V7B truly shines.

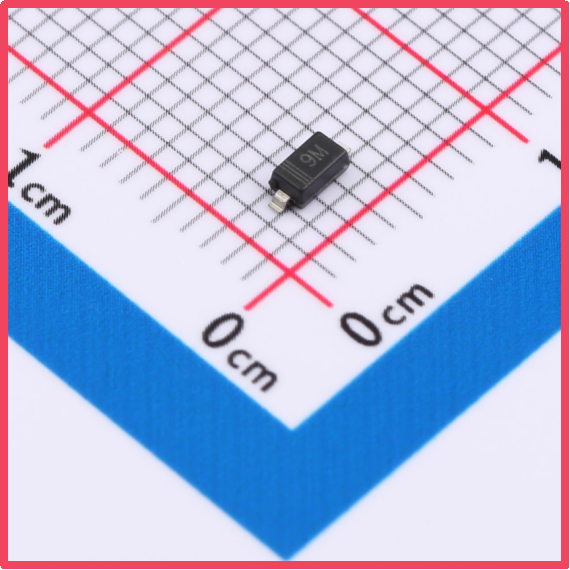

Slkor Voltage Regulator Diode MM1Z4V7B product photo

2. Power Analysis

Power is another crucial factor in assessing a Zener diode’s operational capability. The MM1Z4V7B is designed with a power rating of 500mW, ensuring efficient performance while avoiding the risk of power overload. This well-calibrated power setting not only ensures effective diode operation but also extends its service life.

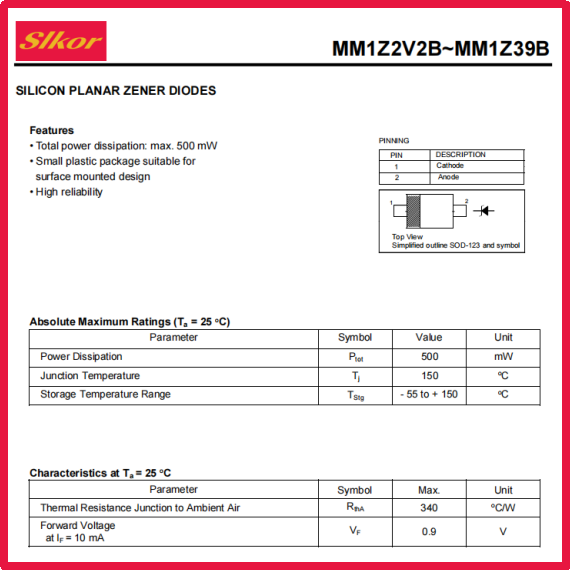

Slkor Voltage Regulator Diode MM1Z4V7B specification

3. Reverse Current Interpretation

Reverse current is a key indicator of a Zener diode's quality. The MM1Z4V7B features an impressively low reverse current of just 2μA under reverse voltage conditions. This ultra-low reverse current reduces power consumption and heat generation, further enhancing the diode’s reliability and durability.

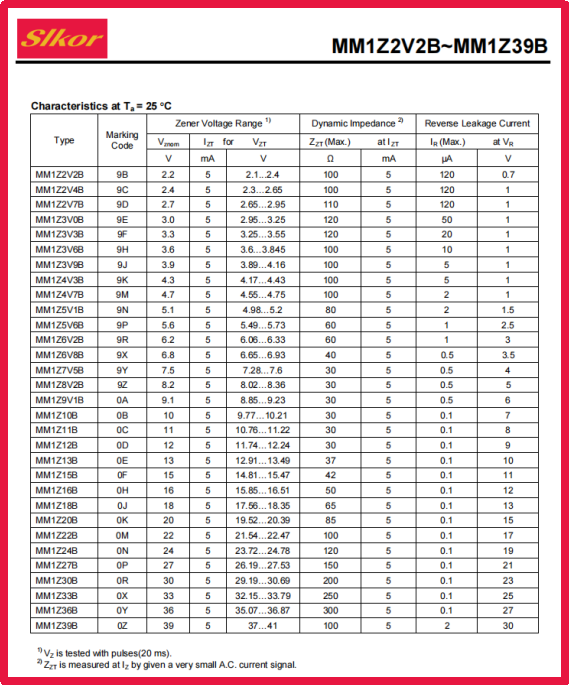

Parameters of Slkor Voltage Regulator Diode MM1Z4V7B

4. Application in High Voltage DC (HVDC) Transmission

In High Voltage DC (HVDC) transmission systems, Zener diodes play a critical role. These systems, used for long-distance and high-power energy transmission, prioritize stability and reliability. As electronic components that provide stable voltage output, Zener diodes are essential in these applications.

The operating principle of a Zener diode is that when the reverse voltage applied exceeds a certain threshold, the reverse current dramatically increases, creating a stable voltage drop and ensuring consistent output voltage. In HVDC transmission systems, this stability is crucial for preventing voltage fluctuations that could impact transmission efficiency and equipment lifespan.

The advantages of using Zener diodes in HVDC transmission include their stable voltage output, fast response, and high reliability. This means that Zener diodes can quickly adjust to changes in grid load or faults, maintaining stable output voltage and preventing potential damage or performance degradation due to voltage variations.

Additionally, Zener diodes are compact, lightweight, and easy to install, offering high flexibility in HVDC system design and construction. Engineers can select appropriate Zener diode models and parameters based on specific system requirements to achieve optimal voltage regulation.

5. Conclusion and Outlook

The MM1Z4V7B Zener diode demonstrates exceptional performance and stability through its precise voltage control, moderate power rating, and extremely low reverse current. It plays a pivotal role in power management and circuit protection within electronic devices. For engineers seeking circuit stability and component reliability, the MM1Z4V7B is undoubtedly a reliable partner. With ongoing advancements in electronic technology, we anticipate that the MM1Z4V7B will continue to shine in various fields, contributing to the development of the electronics industry.
