In modern electronic circuits, Zener diodes play an essential role as key electronic components. They provide stable voltage output, effectively preventing voltage fluctuations from damaging the circuit. Today, we will take a closer look at an outstanding Zener diode—the MMBZ5230B, which has become a preferred choice among many electronic designers due to its precise voltage regulation, high power handling capability, and extremely low reverse current.
The MMBZ5230B is a high-performance Zener diode specifically designed to meet the demands of modern electronic systems for high precision and reliability in voltage stabilization. Its unique manufacturing process and optimized material choices enable the MMBZ5230B to perform exceptionally well in circuits, providing strong assurance for the stable operation of electronic devices.
- Zener Voltage (Nominal): 4.3V
The nominal Zener voltage of the MMBZ5230B is 4.3V, meaning it can provide a stable output voltage of 4.3V under normal operating conditions. This feature makes the MMBZ5230B an ideal choice for electronic circuits requiring precise voltage control.
- Zener Voltage (Range): 4.47V - 4.94V
In addition to the nominal value, the MMBZ5230B also has a specified voltage range of 4.47V to 4.94V. This range ensures that the MMBZ5230B can deliver stable voltage output across various operating environments and conditions, enhancing its adaptability and reliability.

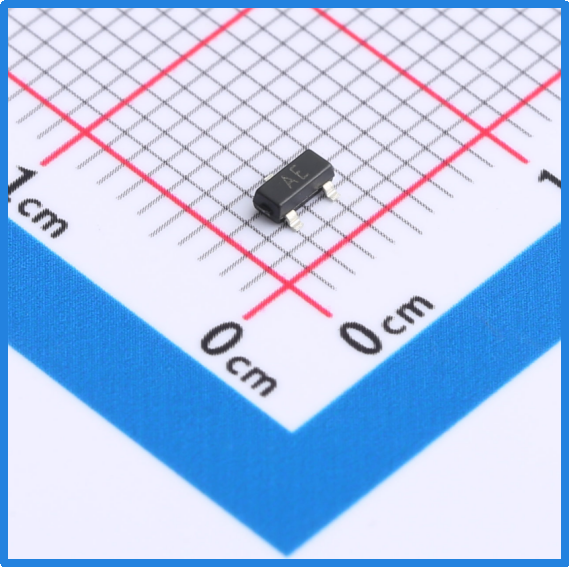

Slkor Voltage Regulator Diode MMBZ5243B product photo
- Power Rating: 350mW
The MMBZ5230B exhibits a high power handling capacity, with a maximum of 350mW. This allows it to operate stably in high power density circuits without overheating.

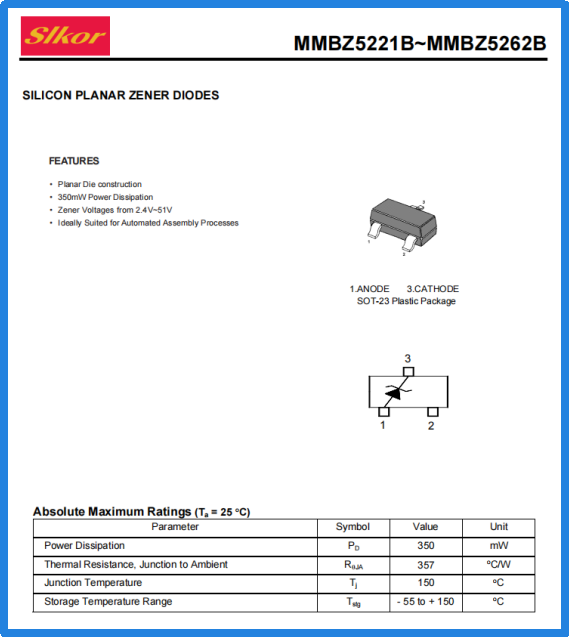

Slkor Voltage Regulator Diode MMBZ5243B specification
- Reverse Current (Ir): 5µA
The MMBZ5230B features an extremely low reverse current of just 5µA. This characteristic helps reduce power consumption within the circuit, improving overall efficiency. Additionally, the low reverse current means less heat is generated during reverse breakdown, contributing to a longer lifespan.

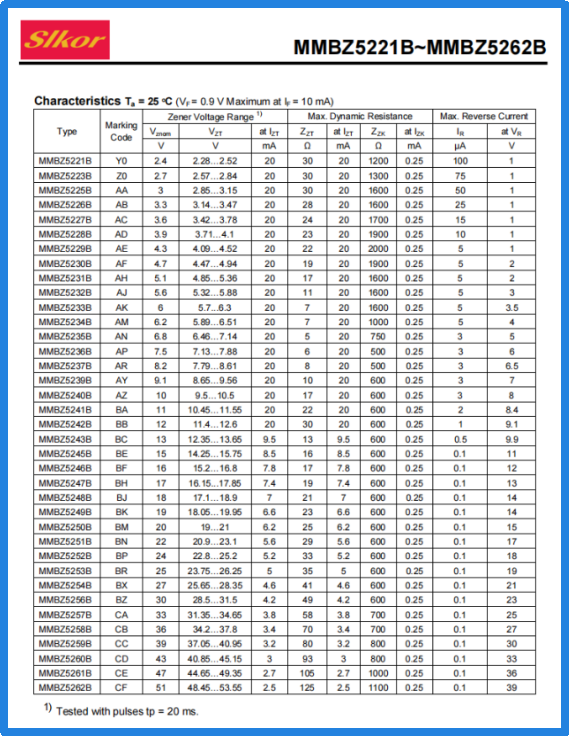

Parameters of Slkor Voltage Regulator Diode MMBZ5243B
With its precise Zener voltage, high power handling capability, and low reverse current, the MMBZ5230B is widely used in various electronic systems. Here are some typical application scenarios:
- Power Management Circuits: In power management circuits, the MMBZ5230B can serve as a voltage regulation component, providing stable voltage output to other circuits. This helps ensure proper functioning and prevents failures due to voltage fluctuations.
- Protection Circuits: The MMBZ5230B can also be used in protection circuits, such as over-voltage and reverse-voltage protection. When the voltage in the circuit exceeds a set value, the MMBZ5230B quickly conducts, redirecting excess voltage to ground and protecting other circuit components from damage.
- Communication Devices: In communication devices, the MMBZ5230B can be employed in signal amplification circuits and power control circuits. Its precise voltage regulation and low reverse current characteristics help ensure stable transmission and reception of communication signals.
1. Thermal Design
The thermal design of the MMBZ5230B takes into account its application needs in high power density circuits. By optimizing the packaging structure and material selection, this diode achieves effective heat conduction and dissipation. This design helps rapidly transfer heat generated during operation to the package exterior, where external heat sinks or radiators can further dissipate it into the surrounding environment.
2. Thermal Resistance
Thermal resistance is one of the important indicators for measuring the thermal performance of semiconductor devices. It represents the thermal impedance between the junction temperature inside the device and the external ambient temperature. For the MMBZ5230B, the thermal resistance parameters have been carefully designed and optimized to ensure effective control of the junction temperature under normal operating conditions to prevent overheating.
3. Maximum Junction Temperature
The maximum junction temperature refers to the highest temperature that the internal chip of the semiconductor device can withstand. For the MMBZ5230B Zener diode, this maximum junction temperature is typically specified in the product datasheet. In practical applications, it is essential to ensure that the diode’s junction temperature does not exceed this maximum value to guarantee long-term stability and reliability.
4. Thermal Considerations
Although the MMBZ5230B has good thermal performance, special attention must still be paid to heat dissipation in certain high power or high-temperature environments. For example, when used in enclosed or poorly ventilated spaces, adequate cooling measures should be implemented, such as installing heat sinks or using forced air cooling. Furthermore, when selecting and using heat sinks, it’s important to consider thermal matching with the diode to ensure optimal heat dissipation.
