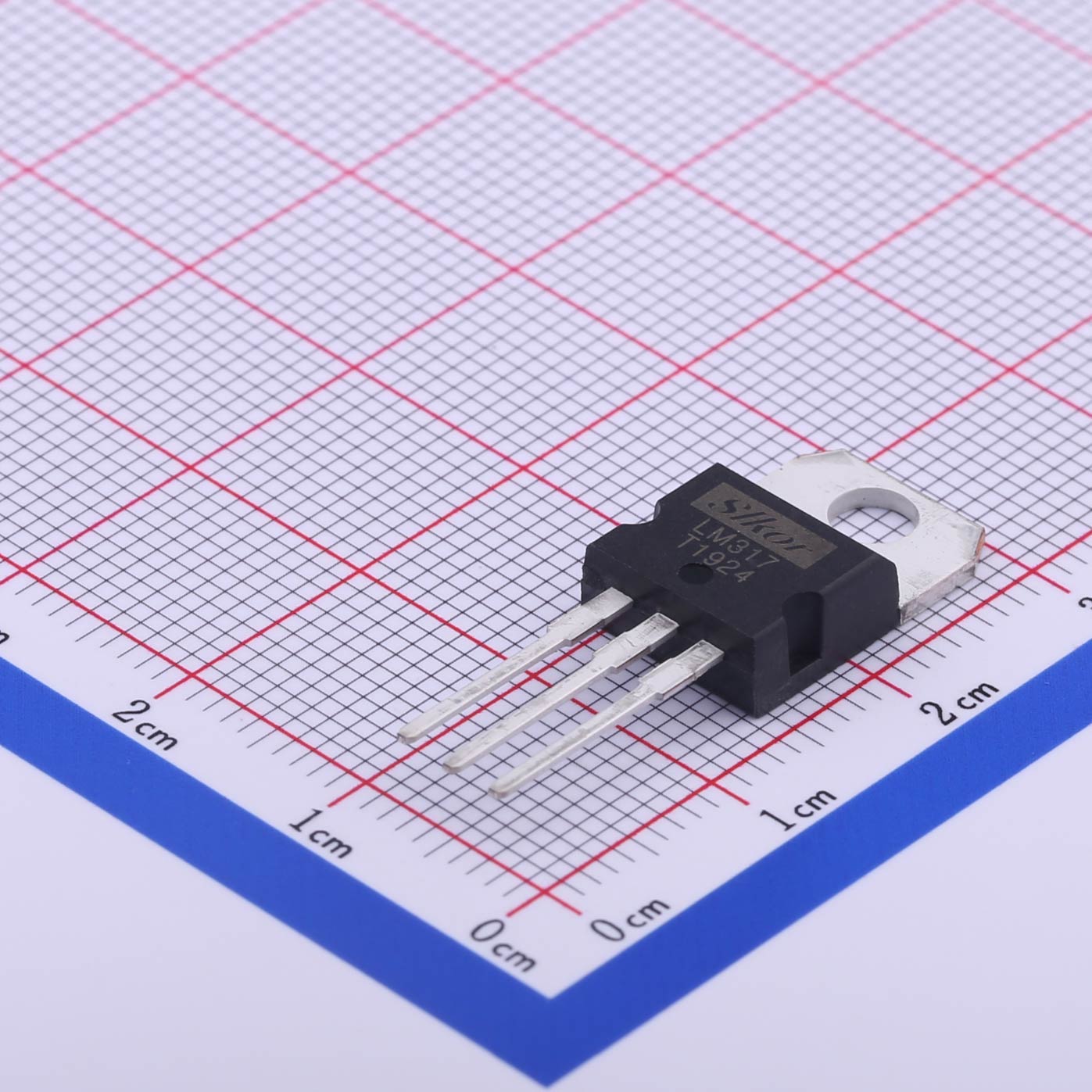

Today, we will introduce the LM317 3-Terminal Adjustable Output Positive Voltage Regulators.

Description

The LM317 is an adjustable 3−terminal positive voltage regulator capable of supplying in excess of 1.5 A over an output voltage range of 1.2 V to 37 V. This voltage regulator is exceptionally easy to use and requires only two external resistors to set the output voltage. Further, it employs internal current limiting, thermal shutdown and safe area compensation, making it essentially blow−out proof.

Features

● Output current in excess of 1.5 ampere.

● Output adjustable between 1.2V and 37V.

● Intemal thermal overload protection.

● Intemal short-circuit current limiting constant with temperature.

● Output transistor safe-area compensation.

● Floating operation for high voltage applications.

● Elminates stocking many fixed voltages.

Applications

The LM317 serves a wide variety of applications including local, on card regulation. This device can also be used to make a programmable output regulator, or by connecting a fixed resistor between the adjustment and output, the LM317 can be used as a precision current regulator.
