Introduction:

In the realm of electronics, Zener diodes play a crucial role in voltage regulation, reference, and protection circuits. Among these, the BZT52C4V7 Zener diode stands out for its specific parameters and versatile applications. This article aims to delve into the characteristics, applications, and performance evaluation of the BZT52C4V7 Zener diode, highlighting its significance in modern electronic design.

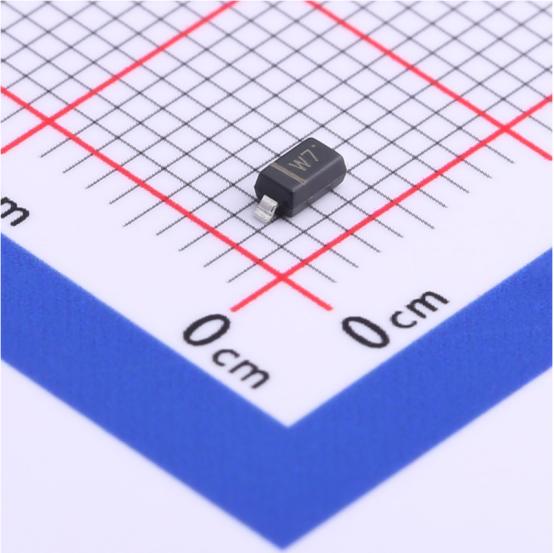

Slkor Voltage Regulator Diode product photo

Overview of BZT52C4V7:

The BZT52C4V7 Zener diode is characterized by the following parameters:

VZTyp (Typical Zener Voltage): 4.7V

PD (Power Dissipation): 500mW

Ir (Reverse Current): 3μA at 2V

These specifications provide valuable insights into the diode's behavior under various operating conditions, enabling engineers to design circuits with accuracy and reliability.

Slkor Zener diode BZT52C4V7 specification

Applications:

The BZT52C4V7 Zener diode finds diverse applications across electronic circuits, including but not limited to:

Voltage Regulation: Zener diodes are commonly utilized for voltage regulation purposes, maintaining a stable output voltage despite variations in input voltage or load conditions. The BZT52C4V7, with its typical Zener voltage of 4.7V, can be employed in voltage regulator circuits to ensure consistent voltage levels, essential for the proper operation of electronic devices and systems.

Voltage Reference: Precise voltage references are essential in many electronic applications, including analog and digital circuits. Zener diodes serve as reliable voltage references due to their stable Zener voltage characteristics. The BZT52C4V7's typical Zener voltage of 4.7V, coupled with its low reverse current, makes it suitable for applications requiring accurate voltage references, such as sensor interfaces, data converters, and precision measurement instruments.

Overvoltage Protection: Electronic circuits are susceptible to voltage spikes or surges, which can damage sensitive components. Zener diodes provide effective overvoltage protection by clamping excessive voltage levels, thereby safeguarding the circuitry. The BZT52C4V7, with its high power dissipation capability and low reverse current, offers reliable overvoltage protection in applications such as power supplies, communication systems, and automotive electronics.

Parameters of Slkor Zener diode BZT52C4V7

Performance Evaluation:

The performance of the BZT52C4V7 Zener diode can be assessed based on its key specifications:

Zener Voltage (VZTyp): The typical Zener voltage of 4.7V indicates the diode's ability to maintain a constant voltage across its terminals, ensuring stable voltage regulation and reference.

Power Dissipation (PD): With a power dissipation rating of 500mW, the BZT52C4V7 can dissipate heat efficiently, allowing for reliable operation even under high-power conditions.

Reverse Current (Ir): The low reverse current of 3μA at 2V signifies minimal leakage current, contributing to the efficiency and reliability of the circuit.

Conclusion:

The BZT52C4V7 Zener diode emerges as a versatile component in electronic design, offering precise voltage regulation, reliable voltage references, and effective overvoltage protection. Its unique specifications, including Zener voltage, power dissipation, and reverse current, make it indispensable in a wide range of applications across industries. Engineers can leverage the BZT52C4V7 to enhance the performance, efficiency, and reliability of their electronic systems, driving innovation and advancement in the field of electronics.
