Introduction:

In the realm of electronic engineering, Zener diodes play a pivotal role in voltage regulation, transient protection, and signal conditioning circuits. Among these, the BZT52C33 Silicon Planar Zener Diode, encapsulated in the SOD-123 package, stands out for its robust characteristics and versatile applications. This article delves into the specifications, features, and applications of the BZT52C33 Zener diode, shedding light on its significance in modern electronic design.

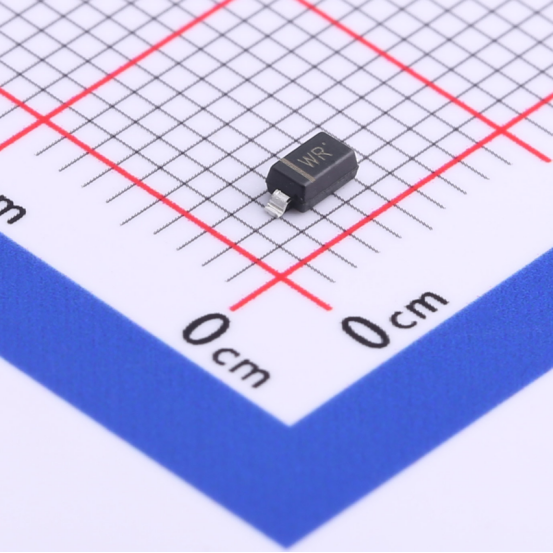

Slkor Voltage Regulator Diode BZT52C33 product photo

Overview of BZT52C33 Zener Diode:
The BZT52C33 Zener diode is characterized by the following key parameters:

PD (Power Dissipation): 500mW

VZ(Nom)@IZT (Nominal Zener Voltage at Test Current): 33V @ 2.0mA

VZ(Min)@IZT (Minimum Zener Voltage at Test Current): 31V @ 2.0mA

VZ(Max.)@IZT (Maximum Zener Voltage at Test Current): 35V @ 2.0mA

ZZT@IZT (Dynamic Impedance at Test Current): 80Ω @ 2.0mA

IR@VR (Reverse Current at Reverse Voltage): 0.1uA @ 23.1V

Package: SOD-123

These specifications provide valuable insights into the diode's behavior under various operating conditions, enabling engineers to design circuits with precision and reliability.

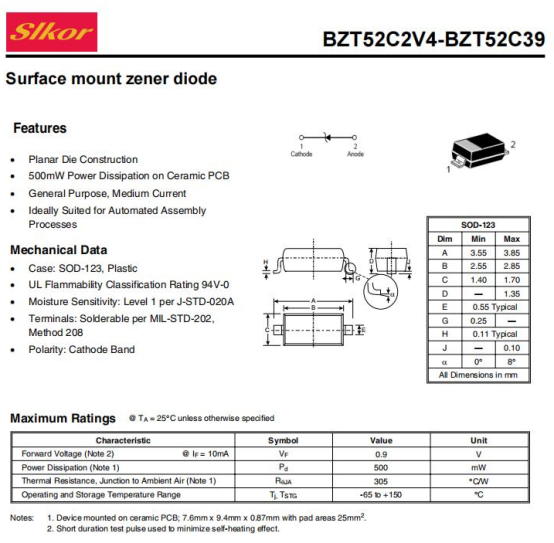

Slkor Zener diode BZT52C33 specification

Applications:
The BZT52C33 Zener diode finds extensive applications across diverse electronic circuits, including but not limited to:

Voltage Regulation: Zener diodes are widely employed in voltage regulation circuits to maintain a stable output voltage despite fluctuations in input voltage or load conditions. The BZT52C33, with its nominal Zener voltage of 33V and low dynamic impedance, is suitable for regulating voltages in power supplies, battery charging circuits, and voltage reference applications.

Transient Protection: Electronic circuits are susceptible to voltage transients or spikes, which can damage sensitive components. Zener diodes offer effective transient protection by clamping excessive voltage levels, diverting transient currents away from critical circuit elements. The BZT52C33, with its high power dissipation capability and low reverse current, provides robust protection against transient events in applications such as automotive electronics, telecommunications, and industrial control systems.

Signal Conditioning: Zener diodes are utilized in signal conditioning circuits to establish reference voltages, limit signal amplitudes, and stabilize signal levels. The BZT52C33's precise Zener voltage characteristics and low dynamic impedance make it suitable for signal conditioning in audio amplifiers, sensor interfaces, and data acquisition systems, ensuring accurate and reliable signal processing.

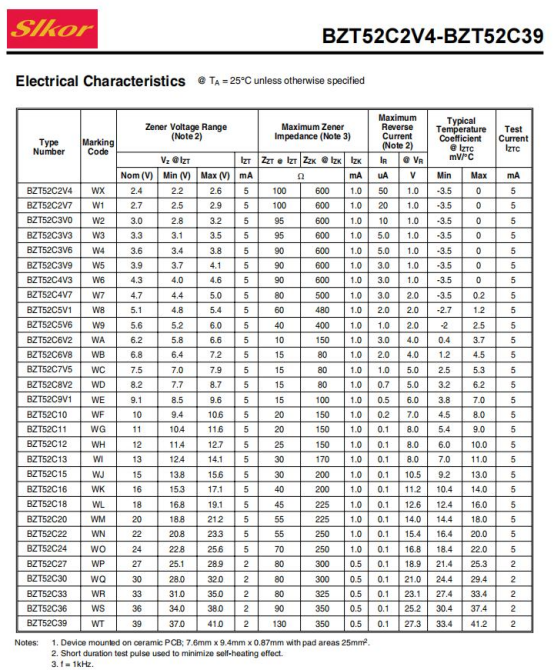

Parameters of Slkor Zener diode BZT52C33

Performance Insights:
The performance of the BZT52C33 Zener diode can be analyzed based on its key specifications:

Zener Voltage (VZ): The nominal Zener voltage of 33V, with minimum and maximum limits, indicates the diode's ability to maintain a consistent voltage across its terminals within a specified range, essential for voltage regulation and reference applications.

Dynamic Impedance (ZZT): The dynamic impedance of 80Ω at the test current signifies the diode's impedance at the Zener voltage, influencing its ability to regulate voltage and limit signal amplitudes in various circuits.

Reverse Current (IR): The low reverse current of 0.1uA at the reverse voltage ensures minimal leakage current, enhancing the efficiency and reliability of the circuit.

Conclusion:
The BZT52C33 Silicon Planar Zener Diode, housed in the SOD-123 package, emerges as a versatile and indispensable component in electronic design. Its robust characteristics, including precise Zener voltage, low dynamic impedance, and low reverse current, make it suitable for a wide range of applications, from voltage regulation and transient protection to signal conditioning and reference voltage generation. Engineers can leverage the BZT52C33 to enhance the performance, efficiency, and reliability of their electronic systems, driving innovation and progress in the field of electronics.
