In the world of electronics, Zener diodes play a crucial role in maintaining circuit stability. Today, we delve into the BZT52B2V4, a Zener diode with exceptional performance, which has become a new favorite in the industry due to its precise voltage regulation and stable performance.

Core Specifications Overview

The BZT52B2V4 is precisely set to a nominal voltage of 2.4V, a value widely used in many low-voltage circuits. Its voltage regulation range is controlled between 2.35V and 2.45V, demonstrating high precision. Notably, its accuracy is ±5%, which is considered excellent among similar products.

In terms of power, the BZT52B2V4 provides a stable output power of up to 350mW, sufficient for most low-power circuits. Additionally, its reverse current (Ir) is only 50μA, meaning it maintains very low current consumption under reverse conditions, which helps extend the circuit’s lifespan and stability.

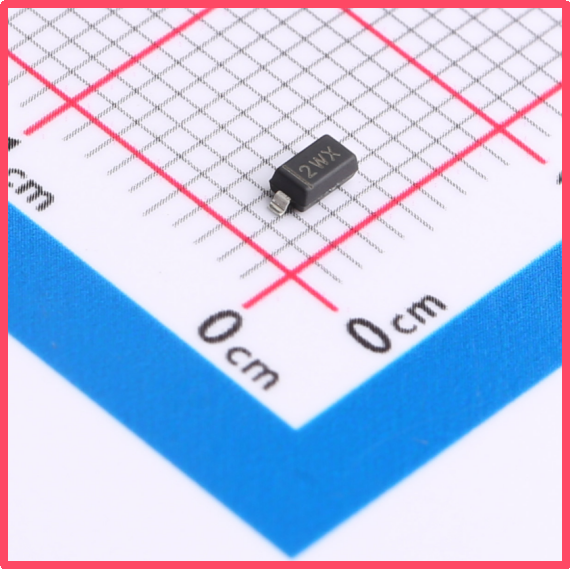

Slkor Voltage Regulator Diode BZT52B2V4 product photo

Technical Features Analysis

The design of the BZT52B2V4 takes into account the low power and high precision requirements of modern electronic devices. Its high-precision voltage regulation is due to advanced manufacturing processes and stringent quality control. In low-voltage environments, this Zener diode provides a consistently stable voltage output, ensuring the circuit operates correctly under various conditions.

Moreover, the low power consumption of this diode is another highlight. With a power rating of 350mW and a reverse current of 50μA, the BZT52B2V4 demonstrates excellent energy efficiency, aligning well with the growing emphasis on energy-saving and environmentally friendly electronics.

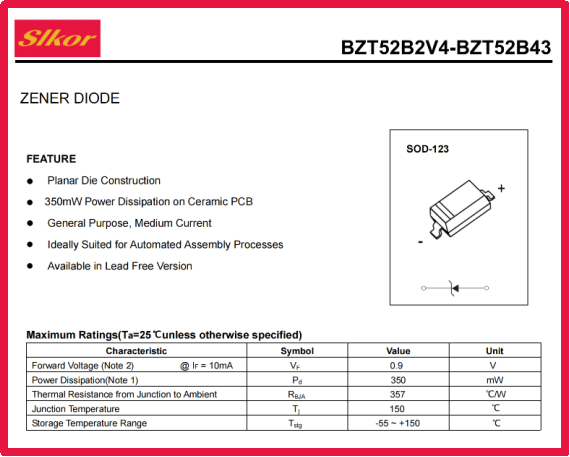

Slkor Voltage Regulator Diode BZT52B2V4 specification

Applications and Market Prospects

The BZT52B2V4 Zener diode finds extensive use in consumer electronics, communication devices, and industrial automation. With the rapid advancement of technologies such as the Internet of Things and smart home devices, there is a rising demand for low-power, high-precision voltage regulation components. Consequently, the BZT52B2V4 is expected to play a significant role in the future market.

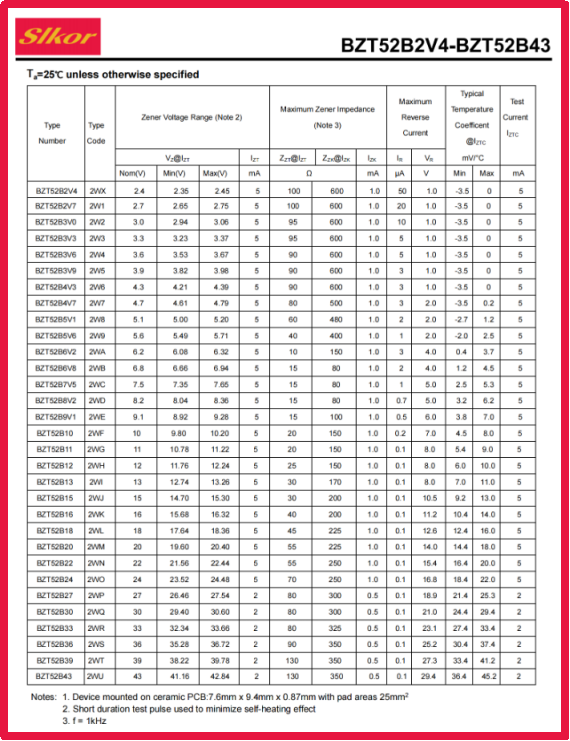

Parameters of Slkor Voltage Regulator Diode BZT52B2V4

Comparing Zener Diodes and Linear Regulators

The efficiency comparison between Zener diodes and linear regulators is an intriguing topic. These two types of voltage regulators have distinct working principles and efficiency characteristics.

Zener diodes, favored for their simple circuit structure and low cost, rely on the reverse breakdown characteristic of the diode to achieve voltage regulation. However, Zener diodes may experience some efficiency loss due to leakage current and power consumption, particularly under high current or high voltage conditions.

In contrast, linear regulators precisely control the output voltage by adjusting the conduction level of internal transistors, resulting in higher voltage regulation accuracy. Efficiency losses in linear regulators primarily stem from power dissipation in the adjustment transistors, which is converted into heat. Despite this, linear regulators excel in high precision, low noise, and rapid response, making them particularly suitable for applications demanding high power quality.

When choosing between a Zener diode and a linear regulator, various factors must be considered. If cost is a significant concern and efficiency is not a priority, a Zener diode is a good option. For applications requiring high precision, low noise, and stable performance, a linear regulator is more appropriate.

Overall, Zener diodes and linear regulators each have their own characteristics in terms of efficiency. The choice of which regulator to use should be based on the specific application and requirements.
