In the realm of electronics, where precision is paramount, the BZT52C15S Zener diode emerges as a stalwart of accuracy and reliability. Let us embark on an exploration of its specifications and capabilities, uncovering the essence of its precision engineering.

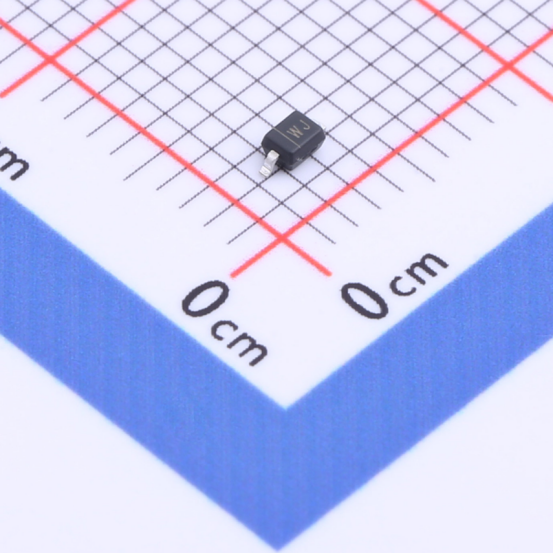

Slkor Zener diode BZT52C15S product photo


Features

1. Zener Voltage: The Pillar of Stability

At the heart of the BZT52C15S lies its defining characteristic: the Zener voltage. With a nominal Zener voltage of 15V and a range spanning from 13.8V to 15.6V, this diode serves as a steadfast reference for voltage regulation in electronic circuits. Whether employed in voltage stabilizers, voltage clamps, or voltage references, the BZT52C15S ensures consistency and reliability, empowering designers to craft circuits with precision and confidence.

2. Power Dissipation: Conquering Thermal Challenges

Despite its diminutive size, the BZT52C15S boasts impressive power dissipation capabilities. With a power dissipation rating of 200mW, this diode adeptly manages thermal challenges, ensuring reliable operation even in demanding environments. From voltage regulators to sensor interfaces, the BZT52C15S remains composed under pressure, maintaining stability and performance over extended operational durations.

3. Reverse Current: Maximizing Efficiency

In the pursuit of efficiency, minimizing reverse current is imperative, and the BZT52C15S excels in this domain. Boasting a low reverse current of merely 2μA at 4V, this diode minimizes power wastage, contributing to energy-efficient designs. Whether employed in battery-powered devices, low-power sensors, or precision instrumentation, the BZT52C15S conserves power while upholding stable operation, rendering it an ideal choice for applications where efficiency is paramount.

4. Dynamic Impedance: Ensuring Stability

In addition to its precise Zener voltage and low reverse current, the BZT52C15S offers another dimension of stability through its dynamic impedance (Zzt) of 30Ω. This characteristic ensures that the diode maintains its specified voltage regulation even in the presence of varying load conditions or alterations in operating temperature. Whether integrated into automotive electronics, telecommunications equipment, or industrial automation systems, the BZT52C15S delivers consistent performance, providing a reliable foundation for electronic designs.

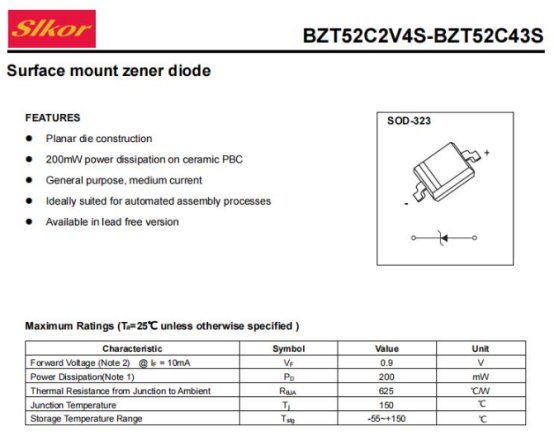

Slkor Zener diode BZT52C15S specification

Applications Across Industries

The versatility of the BZT52C15S extends across a diverse array of industries and applications, showcasing its adaptability and reliability:

Automotive Electronics: Within vehicle electronics and control systems, the BZT52C15S delivers precise voltage regulation, enhancing safety and functionality.

Telecommunications: In communication networks and data centers, the diode stabilizes voltage rails, ensuring dependable data transmission and reception.

Industrial Automation: Within manufacturing machinery and process control systems, the BZT52C15S serves as a dependable voltage reference, optimizing operational efficiency and productivity.

Consumer Electronics: From smartphones to household appliances, the BZT52C15S maintains stable voltage levels, contributing to the overall performance and longevity of electronic devices.

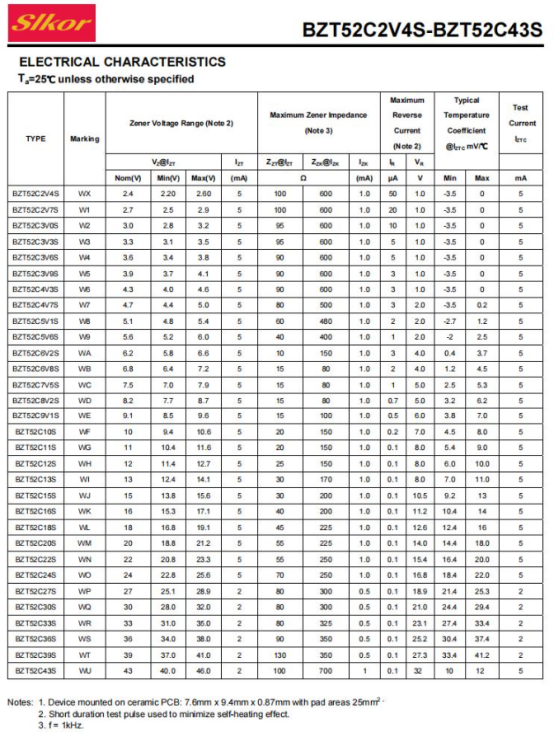

Parameters of Slkor Zener diode BZT52C15S

Conclusion: Precision Redefined

In the landscape of electronic components, the BZT52C15S Zener diode stands as a paragon of precision engineering. Its accurate Zener voltage, robust power dissipation, low reverse current, and stable dynamic impedance make it an indispensable asset for engineers and designers striving for excellence in their designs. As technology continues to advance, the BZT52C15S remains a trusted ally, unlocking new possibilities and ensuring stability and reliability in electronic systems.
