In electronic devices, the stabilizer diode is indispensable as it provides a stable voltage output in circuits, safeguarding other electronic components from voltage fluctuations. Among numerous stabilizer diodes, the BZT52C3V0 stands out due to its unique performance and wide application, becoming a critical component in many electronic devices.

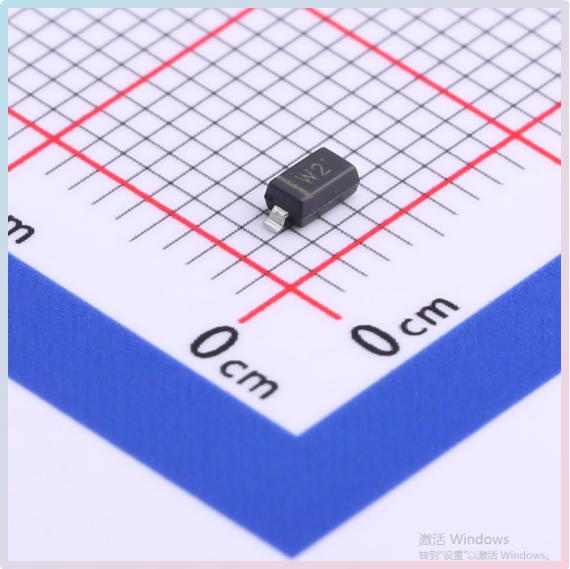

Slkor Voltage Regulator Diode BZT52C3V0 product photo

Overview

The BZT52C3V0 stabilizer diode plays a crucial role with its stable 3V output voltage and 500mW power capacity. Whether in consumer electronics, communication equipment, or industrial control systems, the BZT52C3V0 ensures reliable voltage stability to support stable circuit operation.

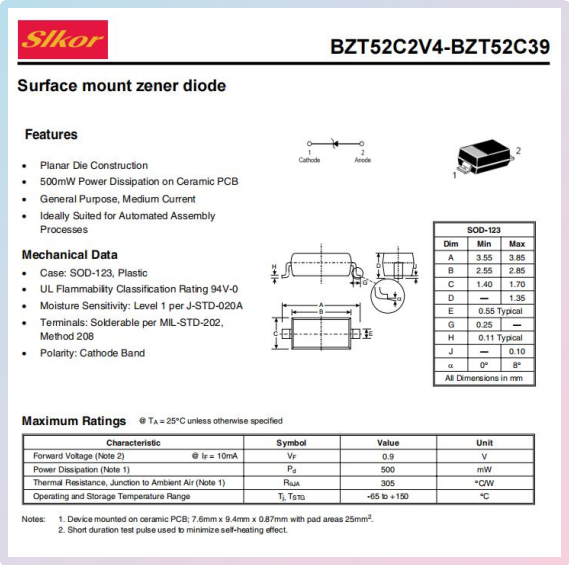

Slkor Voltage Regulator Diode BZT52C3V0 specification

Performance Features

Stable 3V Output Voltage: With a nominal voltage rating of 3V, the BZT52C3V0 reliably maintains a stable output voltage under normal operating conditions. This stability is crucial as it ensures other circuit components operate at their rated voltages, thereby extending device lifespan and enhancing reliability.

500mW Power Rating: The BZT52C3V0 can handle up to 500mW of power, making it suitable for circuits requiring higher current loads. It maintains stable voltage output while keeping power consumption and heat dissipation low, making it widely applicable in high-performance electronic devices.

Low Reverse Current: The reverse current of the BZT52C3V0 is 10μA @ 1V, meaning it consumes only 10 microamps of current when subjected to a reverse voltage of 1V. This low reverse current characteristic reduces power consumption and leakage current in reverse bias conditions, thereby improving circuit stability and reliability.

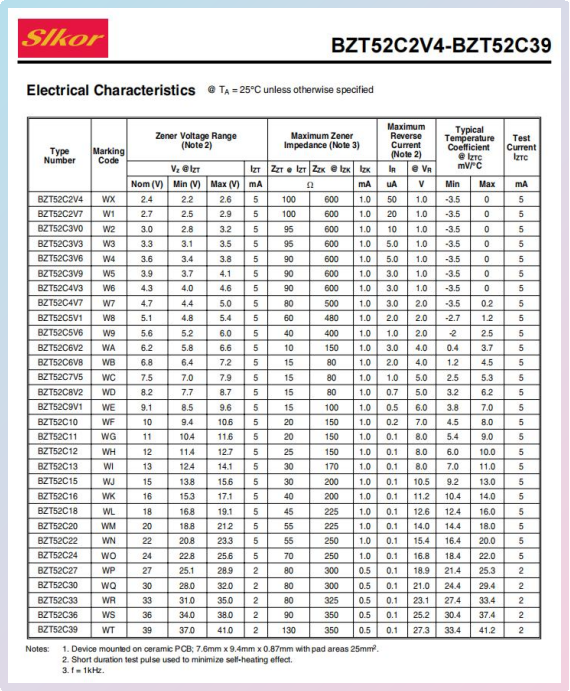

Parameters of Slkor Voltage Regulator Diode BZT52C3V0

Applications and Solutions for Stabilizer Diode BZT52C3V0

Applications

Power Regulators:

● Use Case: In power circuits for microcontrollers and sensors, the BZT52C3V0 ensures a stable 3V output voltage, providing reliable power supply to these devices.

●Solution: With its rated 3V operating voltage and low power consumption, the BZT52C3V0 quickly stabilizes the output voltage, mitigating the impact of voltage fluctuations on microcontrollers and sensors.

Protection Devices:

● Use Case: In certain circuits prone to overvoltage conditions, the BZT52C3V0 serves as a protective device to prevent damage to sensitive components.

● Solution: Its fast response capability enables the BZT52C3V0 to stabilize the voltage output swiftly upon detecting overvoltage, thereby protecting sensitive circuit elements from harm.

Signal Limiters:

● Use Case: In communication systems and sensor networks, the BZT52C3V0 is used to limit the amplitude of input signals, preventing excessive signals from damaging subsequent circuitry.

● Solution: Leveraging its stable 3V output voltage, the BZT52C3V0 ensures that input signal amplitudes remain within safe limits, ensuring normal signal transmission and safe operation of subsequent circuits.

Power Management Modules:

● Use Case: Widely applied in scenarios such as battery charging/discharging management and low-power device power management.

● Solution: The BZT52C3V0's low power consumption provides significant advantages in these applications, reducing overall system power consumption and improving energy utilization efficiency.

Solution Summary

● Selecting the appropriate type of stabilizer diode: Based on specific application scenarios and requirements, choose a stabilizer diode with suitable rated operating voltage, power capacity, and other relevant parameters, such as the BZT52C3V0.

● Designing circuits sensibly: In circuit design, carefully consider the performance and characteristics of the stabilizer diode, ensuring the circuit layout optimally supports its function.

● Implementing necessary protective measures: To prevent damage to stabilizer diodes due to overvoltage, overcurrent, etc., implement necessary protective measures such as installing heat sinks, and adopting anti-static measures.

● Regular inspection and maintenance: Regularly inspect and maintain circuits to promptly identify and resolve potential issues, ensuring stable circuit operation.
