The semiconductor industry refers to companies involved in the production of semiconductor chips and the related supply chain, including semiconductor wafer manufacturing, packaging and testing, and equipment manufacturing. Semiconductor technology serves as the foundation of the modern information industry and finds widespread applications in fields such as computers, communications, consumer electronics, automotive, aerospace, and more. SLKOR, as a member of the semiconductor industry, indeed exhibits rapid development momentum. The company has applied for a large number of invention patents and offers a wide range of product models, serving a broad customer base. At the same time, SLKOR has a comprehensive product line covering various areas, including diodes, transistors, power devices, and power management chips. The company continuously launches new products and expands into emerging areas such as sensors and RISC-V microcontrollers, laying a solid foundation for its future development.

SLKOR is a high-tech enterprise

In electronic systems, isolation is a crucial function used to ensure the safety and reliability of signals between input and output. Optocouplers, as common isolation devices, play a vital role in connecting two circuits and transmitting data through optical signals. The optocoupler SL3053, as a high-performance optocoupler, utilizes an AIGaAs infrared emitting diode as the transmitter. It optically couples with a single silicon random phase optically-controlled silicon bilateral switch component housed in a plastic DIP6 package with different lead forming options, providing the most stable isolation function.

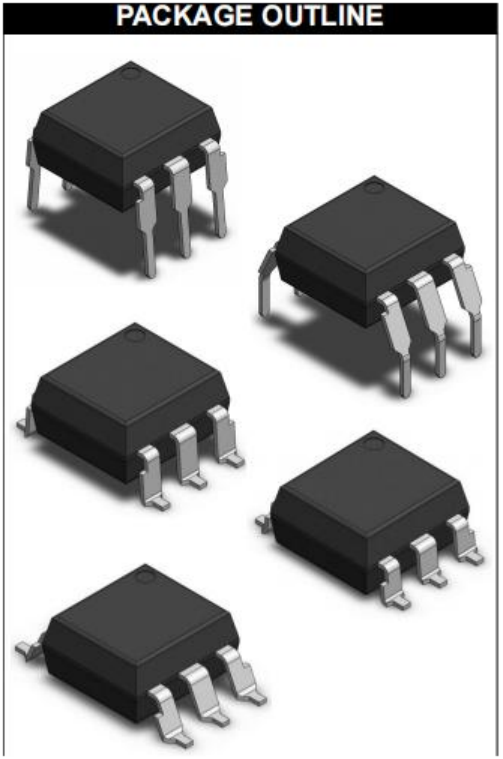

Product Diagram of SLKOR Semiconductor Optocoupler SL3053

1.Optical coupling between the transmitter and receiver: Optocoupler SL3053 uses an AIGaAs infrared emitting diode as the transmitter, which features high speed, brightness, and efficiency. The transmitter converts the input signal into an optical signal and optically couples with a single silicon random phase optically-controlled silicon bilateral switch component housed in a plastic DIP6 package. This coupling method can achieve stable and reliable signal conversion and transmission, ensuring the accuracy of the output signal.

2.Robust coplanar dual-chip structure: Optocoupler SL3053 has a robust coplanar dual-chip structure, which means that the transmitter and receiver are located on the same plane. This design provides a more stable isolation function, avoiding external factors interfering with the output signal and ensuring the accuracy and reliability of the signal.

3.High isolation voltage and DC input: Optocoupler SL3053 features high isolation voltage up to 5000 VRMS, which can effectively isolate the input and output signals and ensure system safety. In addition, the device adopts a random phase optically-controlled silicon bilateral switch output with DC input, which can support a variety of application scenarios and provide greater flexibility.

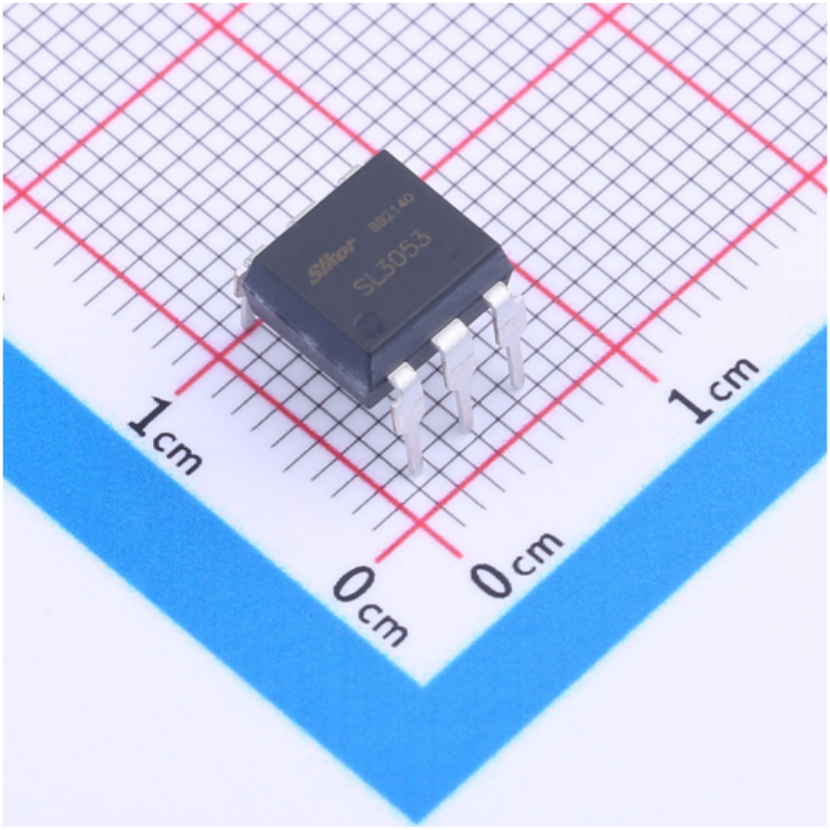

Optocoupler SL3053

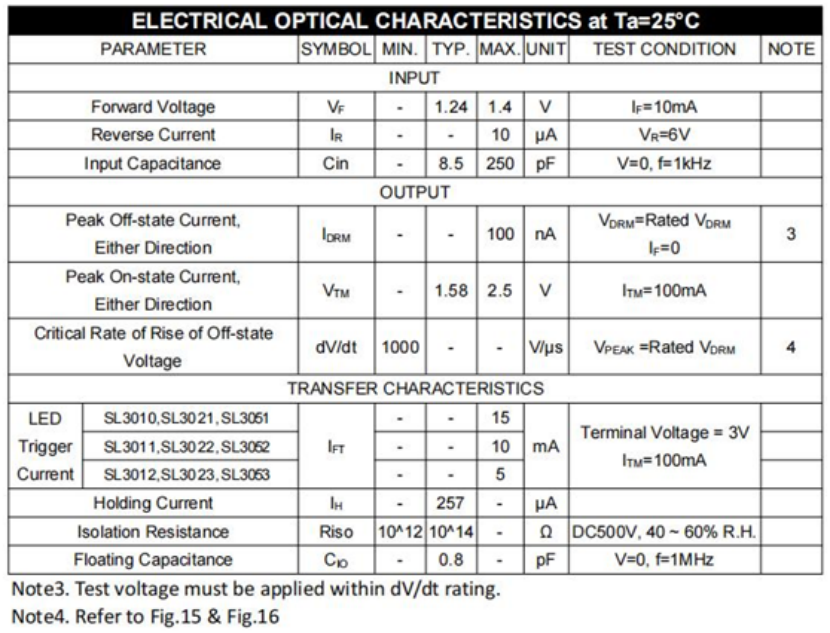

The key parameters of Optocoupler SL3053 are as follows:

· VCEO (V): 600V

· IC (mA): 10μA

· VR (V): 6V

· IF (mA): 60mA

· Package: DIP-6

In addition, Optocoupler SL3053 complies with the environmental requirements of REACH and RoHS, and has an MSL level of 1.

Optocoupler SL3053 is suitable for multiple application fields such as lighting, motors, and temperature control: In the fields of lighting, motors, and temperature control, Optocoupler SL3053 can isolate and transmit signals to ensure the normal operation of the system. Solid-state relays: Optocoupler SL3053 is suitable for the control circuit of solid-state relays, enabling sensitive driving of relays, as well as control of solenoid valves/valves and solid-state relays.

Optocoupler SL3053

Optocoupler SL3053 is a high-performance optocoupler that uses an AIGaAs infrared emitting diode as the transmitter and optically couples with a single silicon random phase optically-controlled silicon bilateral switch component housed in a plastic DIP6 package. It is suitable for various fields such as control of solenoid valves/valves, lighting, motors, temperature control, static AC power switches, and solid-state relays. The high isolation voltage and DC input characteristics of Optocoupler SL3053, along with its robust coplanar dual-chip structure, make it an excellent choice for stable isolation functionality.

About SLKOR:

SLKOR's high-end products include silicon carbide (SiC) diodes, SiC MOSFETs, IGBTs, and the fifth-generation ultra-fast recovery power diodes, which can meet the needs of new energy vehicles, high-end equipment, communication power equipment, solar photovoltaic, medical equipment, industrial automation, and other industries. SLKOR's general-purpose products include Schottky diodes, ESD protection diodes, TVS transient suppression diodes, general-purpose diodes, and transistors. The power devices include high, medium, and low voltage MOSFETs, thyristors, bridge stacks, as well as power management chips such as LDO, AC-DC, and ADC chip series. Additionally, complementary products include Hall sensors, high-speed optocouplers, crystal oscillators, and so on. These products are widely used in smartphones, laptops, robots, smart homes, the Internet of Things, LED lighting, 3C digital products, smart wearable devices, and various other applications.

SL3053To Product Page
