【Daily Highlight】Application and Advantages of SLKOR Optocoupler 6N136

release time:2024-01-04Author source:SlkorBrowse:5494

According to the data, in the period from January to November 2023, China's production and sales of new energy vehicles reached 8.426 million units and 8.304 million units respectively, with a year-on-year growth of 34.5% and 36.7% respectively. This growth trend is expected to continue into 2024. As one of the global leading semiconductor companies, SLKOR Semiconductor has continuously introduced innovative and high-performance products, making significant contributions to the development of the new energy vehicle industry.


SLKOR's high-end products, available at slkoric.com, cover various fields such as Silicon Carbide (SiC) diodes, SiC MOSFETs, IGBTs, and fifth-generation ultra-fast recovery power diodes. These products provide comprehensive support for the new energy vehicle industry and other industries. For instance, SLKOR's SiC diodes and MOSFETs play an important role in battery management systems, charging stations, and motor drives in new energy vehicles.



Optocoupler, also known as opto-isolator, is an electronic component that can isolate and transmit signals between light and electrical signals. It consists of a light-emitting diode (LED) and a phototransistor, which are used to isolate input signals and transmit them to the output through light. Today, we will introduce SLKOR Semiconductor's product - Optocoupler 6N136.

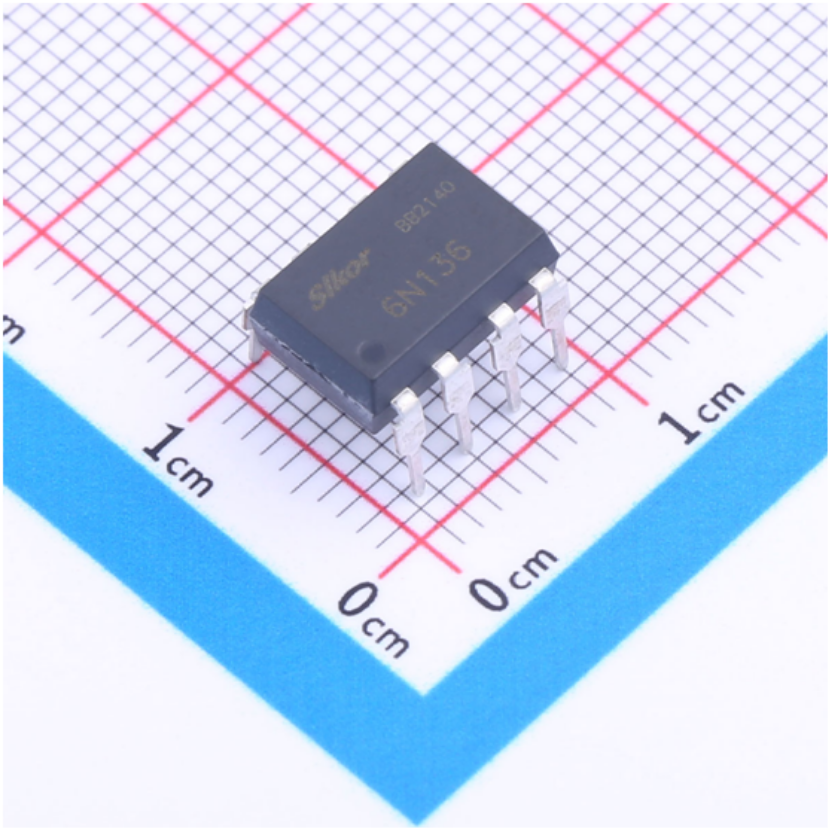

Product image of Optocoupler 6N136


SLKOR Semiconductor's product, Optocoupler 6N136, is a high-speed and high-isolation optotransistor optocoupler. It utilizes an AIGaAs infrared emitting diode as the transmitter and combines it with a phototransistor housed in a plastic DIP8 package. Compared to traditional optotransistor optocouplers, the 6N136 offers a significant improvement in speed.


The 6N136 has several advantages. Firstly, it operates over a wide temperature range, from -55°C to 100°C, making it suitable for various environmental conditions. Secondly, it complies with REACH regulations, ensuring it does not cause environmental pollution. Additionally, it provides a high level of isolation, up to 5000 VRMS, effectively isolating input and output signals to ensure system safety.

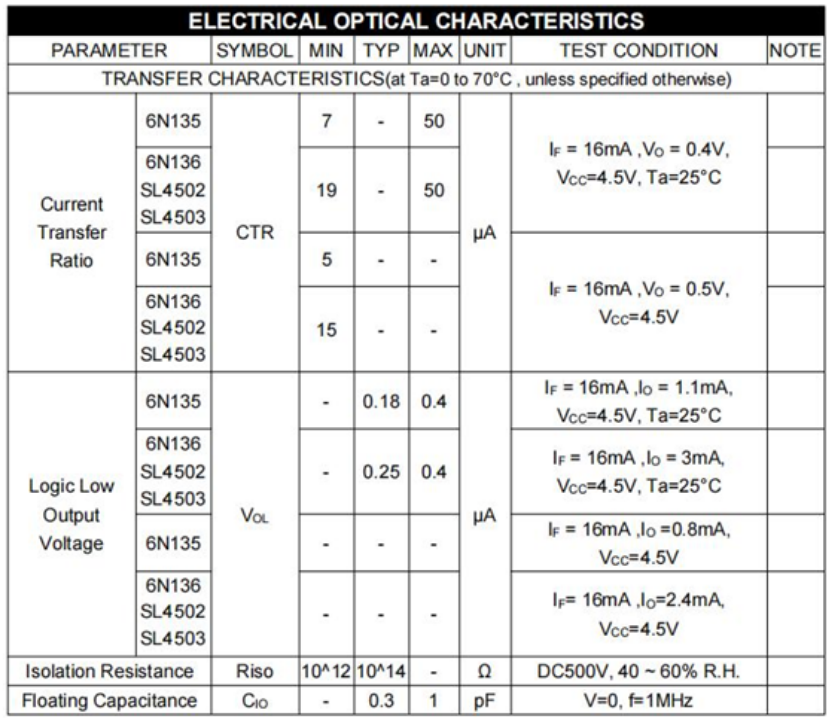

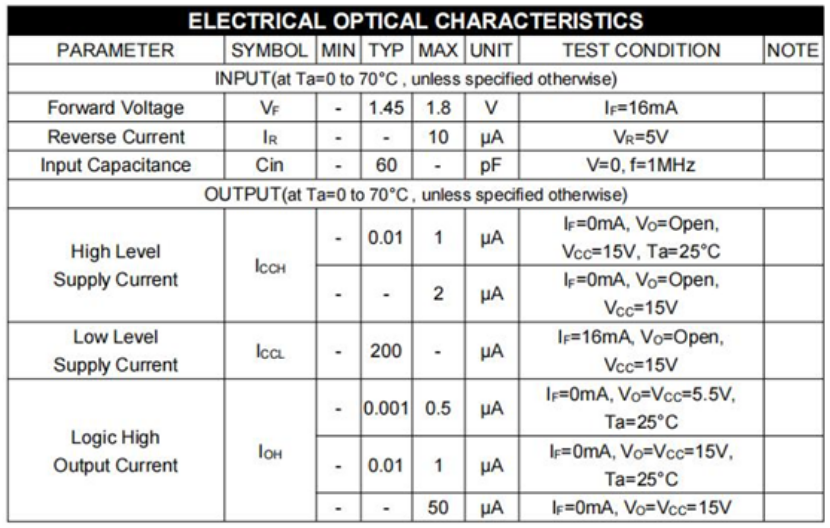

The parameters of 6N136 also demonstrate its superiority. It has a VCEO (Collector-Emitter Voltage) of 30V, IC (Continuous Output Current) of 50mA, VR (Reverse Voltage) of 5V, IF (Forward Current) of 25mA, and comes in a DIP-8 package. These parameters hold significant importance in different applications as they ensure signal stability and reliability, improve system speed and accuracy, and protect the circuit from reverse voltage damage.


For example, the optocoupler's ability to handle a current of 50mA makes it suitable for applications that require high current output, such as motor control or LED lighting control. Additionally, the high output current of 6N136 can enhance system speed and accuracy.



As an excellent performance optotransistor optocoupler, 6N136 finds wide applications in line receivers, telecom equipment, and pulse transformer replacement. Its high voltage withstand capability, larger output current, reverse voltage protection, and convenient packaging make it an ideal choice in many industries.


In line receivers, 6N136 enables the isolation of input and output signals, ensuring system stability and reliability. In telecom equipment, it can be used in fiber optic communication and digital circuits to enhance system speed and accuracy. In pulse transformer replacement, 6N136 effectively isolates input and output signals, guaranteeing system safety and stability.
