【Daily Highlight】MOSFETs SL18N20 Efficient Power Switching Solutions

release time:2024-03-08Author source:SlkorBrowse:6063

Recently, data released by the China Academy of Information and Communications Technology (CAICT) showed that in January 2024, the shipment volume of mobile phones in the Chinese market reached 31.778 million units, marking a significant increase of 68.1% compared to the same period last year. This figure not only demonstrates the strong rebound of the Chinese mobile phone market but also highlights the high demand from consumers for new types of smartphones. Particularly noteworthy is that the shipment volume of 5G smartphones increased by 59.0% year-on-year, accounting for 82.3% of the overall mobile phone shipments. This data indicates that with the increasingly widespread adoption of 5G networks and continuous innovation in 5G smartphones, consumer demand for faster speed and lower latency 5G networks is rapidly growing. In this wave of 5G smartphone trends, Slkor Semiconductor (www.slkoric.com) is seizing a rare development opportunity with its extensive product line and high-quality product offerings. SlkorSemiconductor's products cover various series including Schottky diodes, ESD protection diodes, TVS transient voltage suppression diodes, general-purpose diodes and transistors, among others. Additionally, the company manufactures power devices such as MOSFETs, thyristors, bridge stacks for high, medium, and low voltages, as well as power management chips such as LDO, AC-DC, and ADC chip series. These products are not only widely applied in the communication field but also play an important role in the 5G smartphone domain, providing reliable assurance for the stable operation of 5G smartphones.

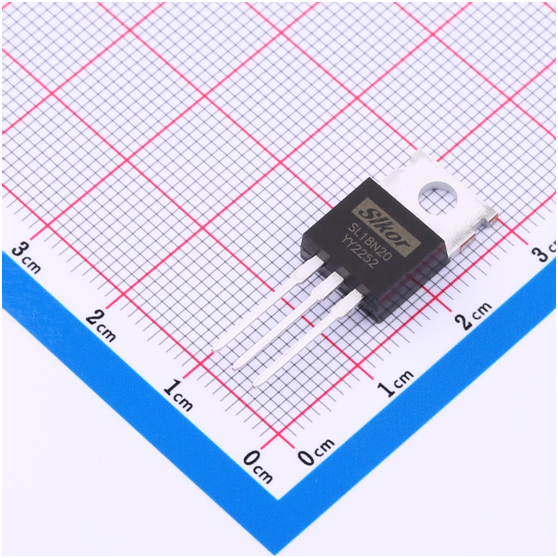

Slkor Semiconductor's SL18N20 is a silicon N-channel enhancement mode VDMOSFET, developed using self-aligned planar technology to reduce conduction losses, improve switching performance, and enhance avalanche energy. This excellent transistor product has a wide range of applications in various power switch circuits, providing crucial support for system miniaturization and higher efficiency.

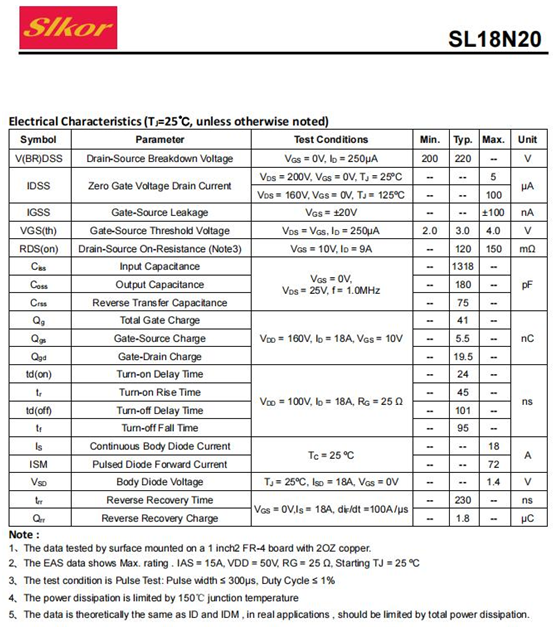

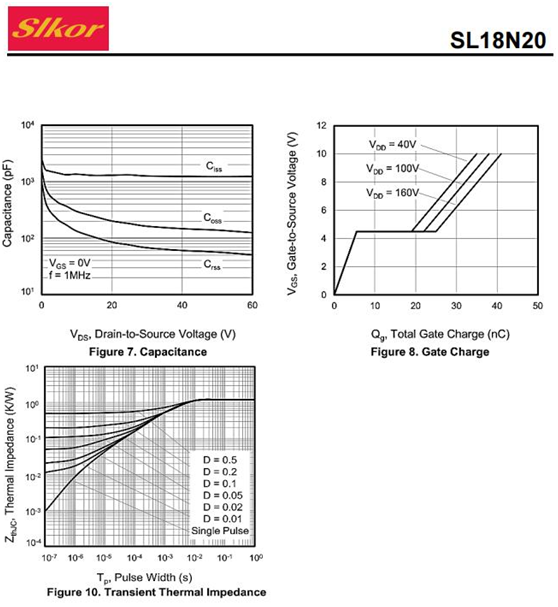

The parameters of the SL18N20 demonstrate its outstanding performance in the field of power switches. As an N-channel MOSFET, it features a drain-source voltage (Vdss) of 200V and a continuous drain current (Id) of 18A, with a power dissipation (Pd) reaching up to 104W. In the on-state, its on-state resistance (RDS(on)@Vgs,Id) is 120mΩ@10V, 9A, and the threshold voltage (Vgs(th)@Id) is 3.0V@250μA, with a TO-220-3L package. These parameters indicate that the SL18N20 can work stably in high-voltage, high-current environments, providing strong support for power switch systems. In addition to its excellent parameters, the SL18N20 also features low losses. This means that it can reduce energy consumption during operation, improve the overall efficiency of the system, and bring greater energy-saving potential to various application scenarios.


In terms of applications, the SL18N20 can be widely used in power switch circuits, Uninterruptible Power Supplies (UPS), Power Factor Correction (PFC), and other scenarios. In power switch circuits, it can perform high-frequency switching operations stably, meeting the system's demand for dynamic response and high-efficiency conversion. In the fields of UPS and PFC, its stable and reliable performance can provide continuous power support for systems, ensuring the safe operation of equipment and maximizing the utilization of electrical energy.


In conclusion, Slkor's SL18N20, with its efficient power switch solution, will bring higher energy conversion efficiency and more reliable power support to various application scenarios. Slkor Semiconductor will continue to introduce new products, playing a greater role in fields such as smart electronics, industrial control, and new energy, helping industries move towards a more intelligent and efficient future.
