In electronic circuits, the voltage regulator diode is a crucial electronic component capable of providing stable output voltage during voltage fluctuations in the circuit. Among numerous voltage regulator diodes, the MMSZ5257B has become the preferred choice for engineers due to its unique performance parameters and wide range of applications.

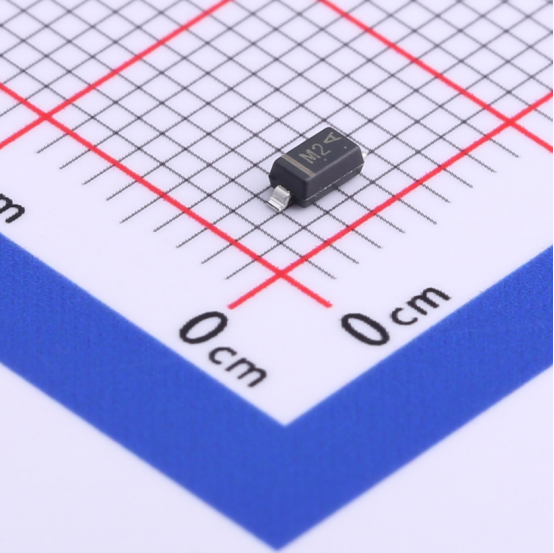

Slkor Voltage Regulator Diode MMSZ5257B product photo

I. Basic Parameters of the voltage regulator diode MMSZ5257B

The voltage regulation value (nominal value) of the MMSZ5257B voltage regulator diode is 33V, meaning that under normal operating conditions, it can maintain a stable voltage of around 33V across its terminals. Additionally, the voltage regulator diode also features a ±5% accuracy, indicating that the actual voltage regulation value in the circuit will fluctuate between 31.35V and 34.65V, providing circuit designers with significant flexibility and reliability.

In terms of power, the MMSZ5257B has a power rating of 500mW, which is sufficient to meet the requirements of most electronic devices. Moreover, its reverse current (Ir) is only 0.1nA@25V, indicating very low reverse current at 25V reverse voltage, further ensuring circuit stability and efficiency.

Slkor Zener diode MMSZ5257B specification

II. Characteristics of the voltage regulator diode MMSZ5257B

High Stability: The MMSZ5257B voltage regulator diode can provide stable output voltage in various environments, with a ±5% accuracy ensuring stable circuit operation.

Low Reverse Current: The reverse current of the MMSZ5257B is extremely low under reverse voltage, helping to reduce circuit power consumption and improve energy utilization efficiency.

High Power: With a power rating of 500mW, the MMSZ5257B can handle the demands of large currents and voltages, making it suitable for various electronic devices.

Parameters of Slkor Zener diode MMSZ5257B

IV. Application of the voltage regulator diode MMSZ5257B

Industrial Control Systems

Scenario Description:

In industrial control systems, where diversity of equipment and complexity of working environments prevail, voltage stability is crucial for normal system operation. With its nominal voltage regulation value of 33V and ±5% accuracy, the MMSZ5257B voltage regulator diode can provide stable voltage support for these systems, ensuring the proper functioning of key components such as sensors and actuators.

Specific Advantages:

High stability ensures system reliability in various environments.

Low reverse current reduces system energy consumption and heat generation, improving overall performance.

Precision Measurement Instruments

Scenario Description:

In precision measurement instruments like voltmeters, ammeters, etc., voltage stability directly affects the accuracy of measurement results. The MMSZ5257B voltage regulator diode can serve as an internal power source or reference voltage source for these instruments, providing stable voltage output and enhancing measurement accuracy.

Specific Advantages:

Precise voltage regulation ensures accurate measurement results.

With a power handling capacity of 500mW, the instrument can meet various measurement requirements.

Automotive Electronic Systems

Scenario Description:

In automotive electronic systems such as Electronic Control Units (ECUs), sensors, etc., stable voltage is essential to ensure system operation and safety. The MMSZ5257B voltage regulator diode can be applied in these systems to provide stable voltage support, preventing system failures caused by voltage fluctuations.

Specific Advantages:

Stable voltage output ensures the reliability of automotive electronic systems.

Low reverse current helps reduce system energy consumption and heat generation, enhancing vehicle performance and safety.

Communication Base Stations

Scenario Description:

In communication base stations, power stability and reliability are paramount to ensure communication quality. The MMSZ5257B voltage regulator diode can be integrated into the power systems of communication base stations to provide stable voltage output, ensuring the normal operation of base station equipment and communication stability.

Specific Advantages:

High stability and low reverse current ensure the reliability of communication base station power systems.

With a power handling capacity of 500mW, the voltage regulator diode can adapt to different power requirements of base station equipment.
