Introduction:
The BZT52C9V1 is a reliable zener diode designed for precise voltage regulation. Featuring a VZTyp rating of 9.1V, ±5% precision, a maximum power dissipation (PD) of 500mW, and a reverse current (Ir) of 500nA at 6V, this diode ensures stable and accurate voltage output in various electronic circuits.

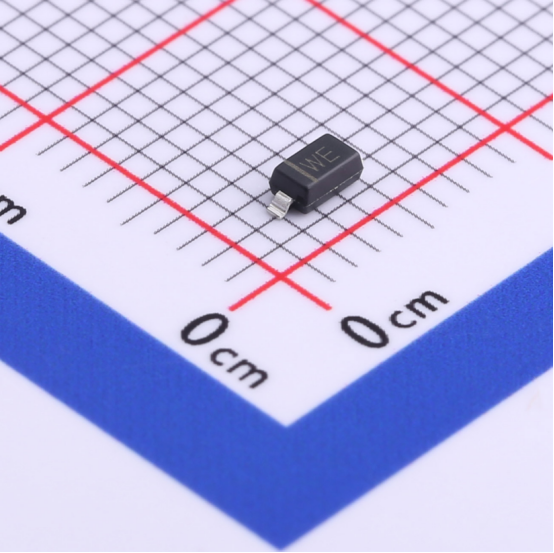

Slkor Voltage Regulator Diode BZT52C9V1 product photo
Slkor Voltage Regulator Diode BZT52C9V1 specification
Key Points:
Precise Voltage Regulation:
VZTyp rating of 9.1V with ±5% precision ensures accurate voltage output.
Efficient Power Handling:
PD rating of 500mW allows for the dissipation of moderate power levels without compromising performance.
Moderate Reverse Current:
Ir of 500nA at 6V ensures minimal power loss and improved efficiency.
Parameters of Slkor Voltage Regulator Diode BZT52C9V1
Conclusion:
The BZT52C9V1 Zener diode is a reliable component for voltage regulation applications, offering a VZTyp rating of 9.1V with ±5% precision. With a maximum power dissipation (PD) of 500mW and a reverse current (Ir) of 500nA at 6V, this diode ensures stable and accurate voltage output, efficient power handling, and enhanced reliability in electronic systems.
How to replace a voltage regulator diode?
The basic steps for replacing a voltage regulator diode are as follows:
Identify the voltage regulator diode to be replaced: First, identify the diode that needs replacement and determine the appropriate replacement. Refer to the original circuit diagram and parameters (such as model, voltage, current, power, etc.) to determine the type and specifications of the voltage regulator diode to be replaced.
Power off: Before replacing the diode, ensure that the circuit's power source is completely turned off to avoid the risk of electric shock.
Remove the old voltage regulator diode: Use suitable tools such as a soldering iron, tweezers, or flat-nose pliers to remove the old diode. Be careful during the process to avoid burns or damage to the circuit board and other electrical components.
Prepare the new voltage regulator diode: Based on the model and specifications of the original voltage regulator diode, prepare the new diode. Ensure that the new diode has similar or identical parameters to the original diode to ensure proper operation of the circuit.
Solder the new voltage regulator diode: Solder the new diode onto the circuit board. First, remove the plating layer from the original diode, then ensure the correct orientation of the diode, and use a soldering iron to solder the new diode onto the circuit board. Different diode models may require different soldering techniques, so refer to the datasheet of the new diode for guidance.
Inspection and testing: After replacing the diode, inspect the soldering joints to ensure there are no shorts or poor soldering connections. Then, power on the circuit and test the new diode for proper operation. Use a multimeter or testing instrument to measure parameters such as regulated voltage, forward voltage, and reverse current to ensure they meet the required specifications.
