In the world of electronics, voltage regulator diodes play a crucial role, especially in voltage regulation and circuit protection. Today, we delve into a highly anticipated voltage regulator diode — MM5Z3V9, analyzing its characteristics, operating principles, and applications to help better understand and select this component.

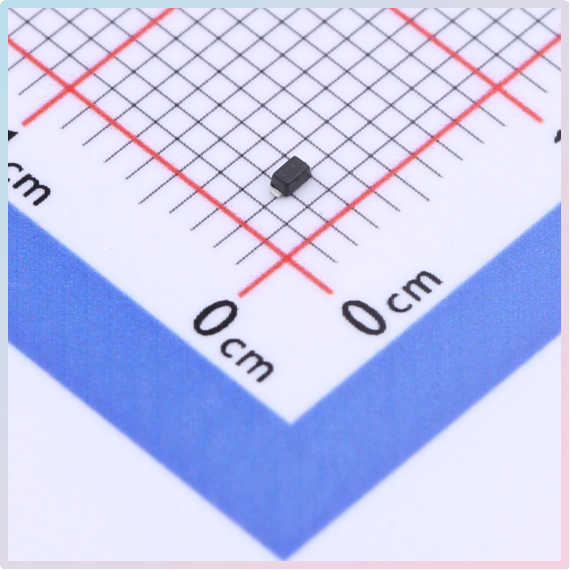

Slkor Voltage Regulator Diode MM5Z3V9 product photo

Key Features of Voltage Regulator Diode MM5Z3V9

MM5Z3V9 is highly regarded for its excellent voltage regulation performance. It has a nominal voltage of 3.9V, with a regulation range between 3.7V and 4.1V, demonstrating excellent voltage precision and stability. Additionally, it can handle up to 200mW of power, sufficient for most low-voltage circuit requirements. In terms of reverse current, MM5Z3V9 performs remarkably with only 5μA, meaning it consumes minimal power in reverse operation, thereby enhancing overall circuit efficiency. Finally, it features an impedance of 60Ω, a moderate value that ensures effective voltage regulation without excessive voltage drop.

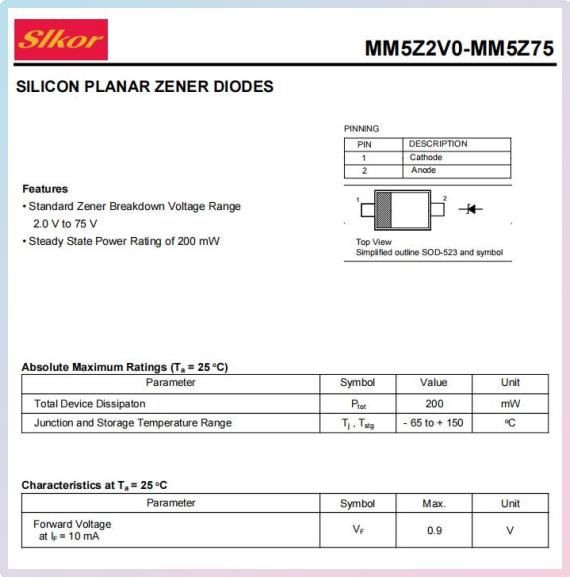

Slkor Voltage Regulator Diode MM5Z3V9 specification

Operating Principle Overview

The operating principle of a voltage regulator diode relies on its unique PN junction structure and doping concentration. When the diode operates in reverse bias, once the reverse voltage reaches a certain threshold, the diode enters breakdown, causing a sharp increase in current while maintaining a stable voltage. MM5Z3V9 leverages this characteristic to provide voltage regulation within circuits. When there are fluctuations in circuit voltage, MM5Z3V9 automatically adjusts its resistance to maintain stable output voltage.

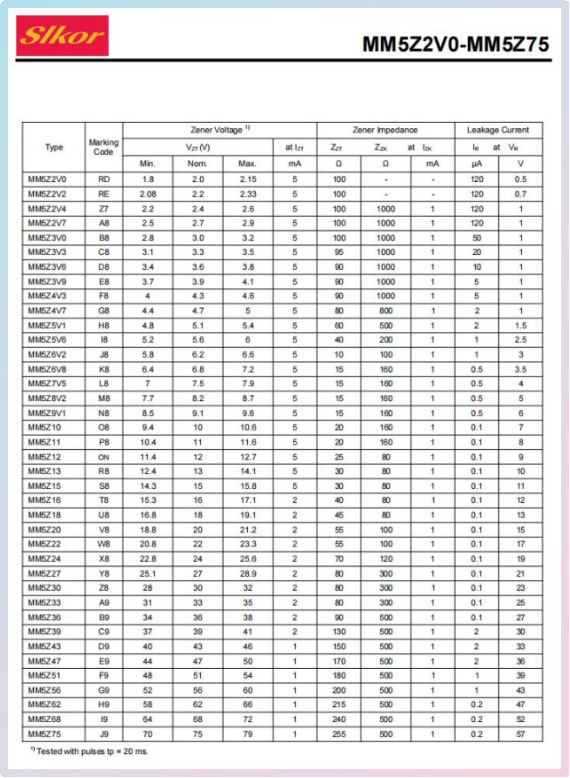

Parameters of Slkor Voltage Regulator Diode MM5Z3V3

Applications and Selection Criteria

MM5Z3V9 voltage regulator diodes find wide application in various electronic devices requiring stable voltage supply, such as communication equipment, consumer electronics, and industrial automation control systems. When selecting MM5Z3V9, one should consider parameters such as voltage regulation value, power rating, reverse current, and impedance to ensure compatibility with circuit design requirements. Additionally, factors like operating temperature, packaging type, and compatibility with other components should be taken into account.

Furthermore, when choosing a voltage regulator diode, it's essential to balance performance and cost based on specific application scenarios. For instance, in environments with high temperatures or humidity, selecting products with higher stability and durability is advisable. Conversely, in projects with cost constraints, choosing models that offer higher cost-effectiveness while meeting performance requirements is prudent.

Voltage regulator diodes play a crucial role in wearable devices

With rapid technological advancements, wearable devices have become an indispensable part of our daily lives. Behind these devices, voltage regulator diodes ensure crucial performance and stability.

Role of Voltage Regulator Diodes

As diodes that stabilize voltage in electronic circuits, voltage regulator diodes are critical components. In wearable devices, their primary role is to ensure stable and reliable power supply under various environmental conditions. Due to the compact size of wearable devices and their high demands for power stability, voltage regulator diodes are particularly essential.

Use Case

For instance, in smartwatches, which require continuous and stable power supply to maintain all functions, voltage regulator diodes play a key role. They automatically adjust voltage during fluctuations in battery levels or external conditions, ensuring stable power supply to internal electronic components. This not only extends device longevity but also enhances user experience.

Technological Trends

With ongoing advancements in semiconductor technology, voltage regulator diodes are evolving towards smaller sizes and higher efficiency. New types offer improved voltage regulation accuracy and maintain stable performance over broader temperature and humidity ranges. These technological advancements provide more possibilities for the design and production of wearable devices.

Market Demand

Currently, the wearable device market is experiencing rapid growth, with consumers increasingly demanding higher performance and stability from devices. Consequently, the market demand for voltage regulator diodes continues to grow, particularly in fields such as sports and fitness, and healthcare where the need for reliable voltage regulation is critical.
