With the continuous advancement of semiconductor technology, the Zener diode has become a key component in electronic circuits, playing an increasingly important role. In this article, we will provide a rational analysis of the MM1Z7V5 Zener diode’s parameter characteristics and explore its potential applications in the electronics field.

1. Detailed Overview of the MM1Z7V5's Parameters

Zener Voltage (Nominal Value):7.5V

The nominal Zener voltage of the MM1Z7V5 is 7.5V, a value determined through rigorous testing to ensure stable voltage output under normal operating conditions. This feature is critical for electronic devices that require precise voltage regulation.

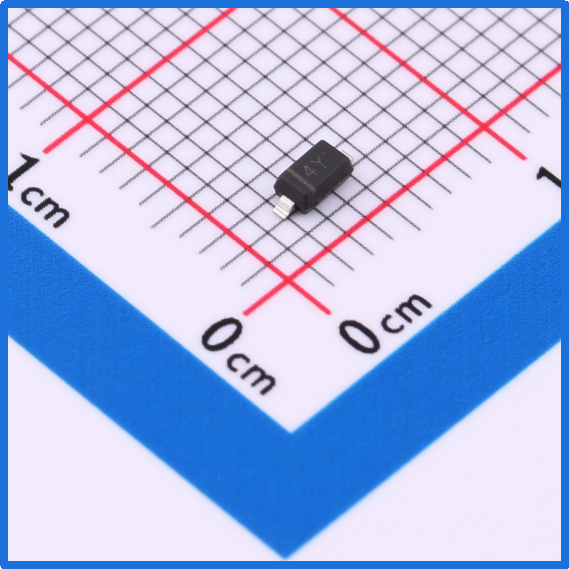

Slkor Voltage Regulator Diode MM1Z7V5 product photo

Zener Voltage (Range):7V-7.9V

In addition to the nominal value, the MM1Z7V5 also offers a voltage range of 7V to 7.9V. This range ensures voltage stability while providing some flexibility, allowing the MM1Z7V5 to adapt to circuits with varying voltage requirements.

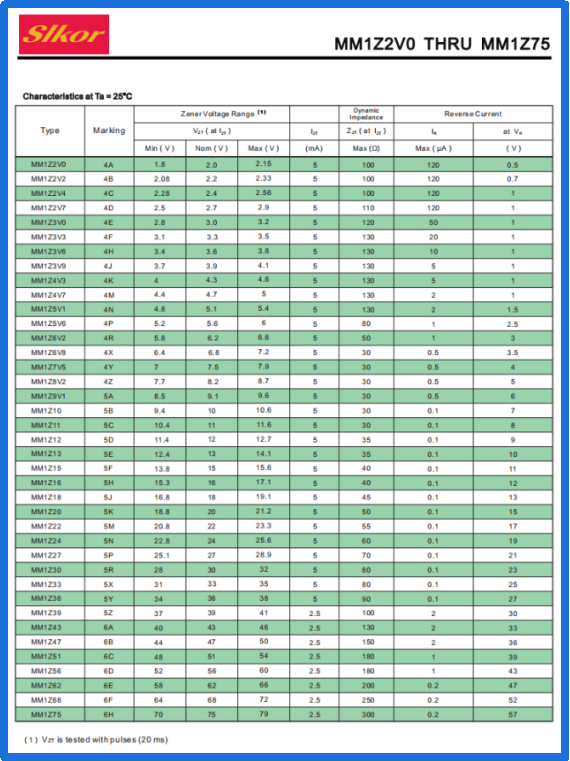

Slkor Voltage Regulator Diode MM1Z7V5 specification

Power Rating:500mW

Power rating is a key indicator of an electronic component’s capacity to handle energy conversion. The MM1Z7V5 has a power rating of 500mW, meaning it can withstand significant power loads, ensuring stable performance even in complex circuits. This feature supports its widespread use in various applications.

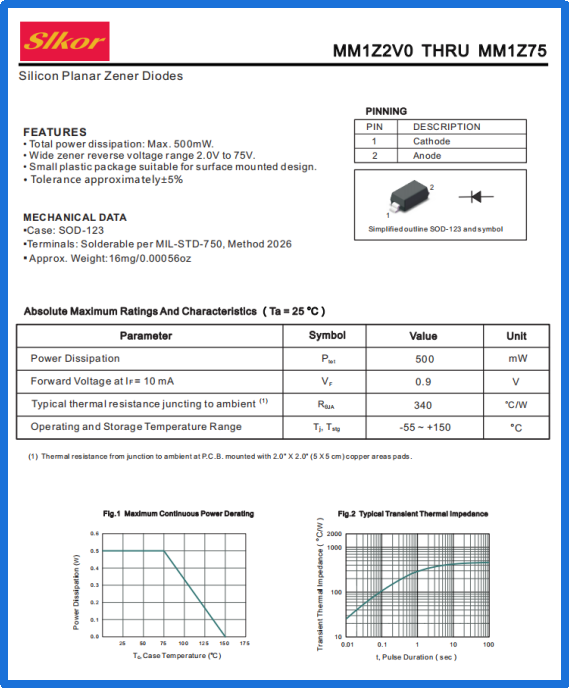

Parameters of Slkor Voltage Regulator Diode MM1Z7V5

Reverse Current (Ir):0.5µA

The reverse current is the current that flows through the Zener diode when it is in reverse breakdown mode. The MM1Z7V5 has a very low reverse current of just 0.5µA, which helps minimize unnecessary power loss, increasing the overall efficiency of the circuit. Additionally, the low reverse current means that the MM1Z7V5 maintains a relatively low temperature during extended operation, thus extending its lifespan.

2. The Role of the MM1Z7V5 in Overvoltage Protection Circuits

Voltage Monitoring and Regulation

As a core component of overvoltage protection circuits, the MM1Z7V5 continuously monitors the voltage within the circuit. When the voltage exceeds a predefined threshold, the MM1Z7V5 quickly conducts and diverts the excess voltage to ground, thereby protecting other components from potential damage due to excessive voltage.

Fast Response and Protection

Thanks to its low breakdown voltage and high switching speed, the MM1Z7V5 can respond instantaneously when the voltage rises abnormally, keeping the voltage within a safe range. This rapid protection mechanism is crucial in preventing circuit damage and ensuring device safety.

Improving Circuit Reliability

By incorporating the MM1Z7V5 as an overvoltage protection element, the overall reliability of the circuit is significantly enhanced. The stability and durability of the MM1Z7V5 ensure that the circuit continues to operate normally under various voltage fluctuations, thereby prolonging the service life of the equipment.

3. Practical Application of the MM1Z7V5 in Overvoltage Protection Circuits

Power Equipment Protection

The MM1Z7V5 is widely used in overvoltage protection circuits for power equipment such as transformers and switch-mode power supplies. Its efficient protective capabilities and stable performance ensure the safe operation of power equipment in harsh voltage environments.

Telecommunication System Protection

Telecommunication systems demand a high level of voltage stability. The MM1Z7V5 plays a vital role in the power and signal circuits of telecommunications equipment, effectively preventing communication disruptions or equipment damage due to voltage anomalies.

Industrial Control Systems

In industrial control systems, the MM1Z7V5 is used to protect various controllers and actuators from damage caused by high voltage. Its reliable overvoltage protection capability provides robust support for the stability and safety of industrial production processes.

4. Other Application Areas of the MM1Z7V5 Zener Diode Beyond Overvoltage Protection Circuits

Power Supply Voltage Regulation

The MM1Z7V5 plays a key role in power supply voltage regulation circuits. Its precise Zener voltage and high power handling capability ensure that the circuit can maintain stable output voltage even with input voltage fluctuations. This is especially critical in applications that demand high voltage stability, such as medical equipment and communication systems.

Precision Measurement Instruments

In precision measurement instruments, voltage stability directly impacts the accuracy of measurement results. With its high-precision Zener voltage and low reverse current characteristics, the MM1Z7V5 provides a stable voltage output to measurement circuits, significantly improving measurement accuracy. As a result, the MM1Z7V5 is widely used in research laboratories, industrial production lines, and quality inspection fields.

Portable Electronic Devices

With the growing popularity of portable electronic devices, the demand for voltage stability has increased. The MM1Z7V5, with its compact size and excellent performance, is an ideal voltage regulation component in portable devices. In smartphones, tablets, wearables, and other portable electronics, the MM1Z7V5 ensures stable operation even during voltage fluctuations or low battery conditions, enhancing user experience and extending device lifespan.
