In the world of electronics, voltage regulator diodes play a crucial role in maintaining circuit stability. Today, we focus on the BZT52B24, a diode that stands out in the semiconductor market due to its outstanding performance and stability.

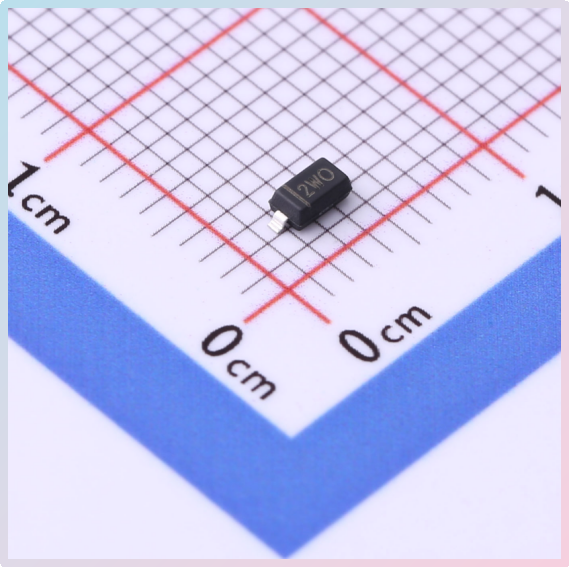

Slkor Voltage Regulator Diode BZT52B24 product photo

Performance Specifications of BZT52B24 Voltage Regulator Diode

The BZT52B24 is designed with a nominal voltage regulation of 24V, ensuring stable voltage output under normal operating conditions. This characteristic makes the BZT52B24 indispensable in circuit designs that require reliable voltage supply.

Beyond its nominal value, the BZT52B24 offers a wide regulation range from 23.52V to 24.48V, providing greater flexibility in circuit design. Within this range, the diode maintains stable voltage regardless of fluctuating currents, ensuring consistent circuit operation.

Precision is a critical performance indicator for voltage regulator diodes, and the BZT52B24 boasts an accuracy of ±5%. This minimal voltage fluctuation further enhances circuit stability and reliability.

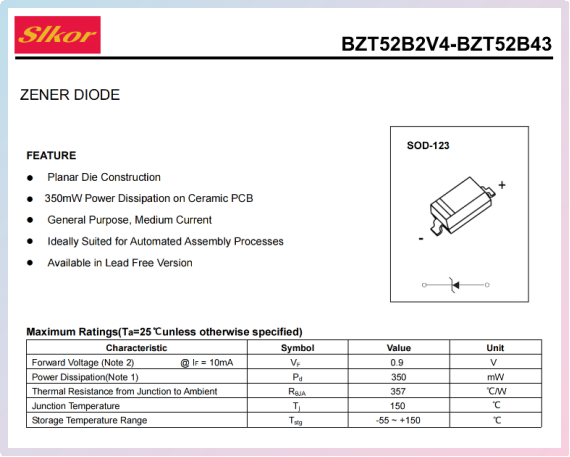

Slkor Voltage Regulator Diode BZT52B24 specification

With a rated power of 350mW, the BZT52B24 can handle substantial currents without overheating or damage, making it ideal for high-load circuits and providing robust support for various electronic devices.

Additionally, the diode exhibits a reverse current of only 0.1μA, indicating minimal power consumption during idle periods. This feature contributes to extended device lifespan and reduced energy consumption.

The BZT52B24 excels in the semiconductor industry thanks to its high precision, wide regulation range, and impressive power handling capabilities. It plays a crucial role in consumer electronics, industrial automation equipment, and automotive electronic systems, offering substantial support for the rapid advancement of modern electronic technology.

For electronics engineers, choosing the BZT52B24 voltage regulator diode signifies opting for a solution that is stable, reliable, and high-performing. Looking ahead, we anticipate further demonstrations of the BZT52B24's exceptional performance, driving advancements in semiconductor technology.

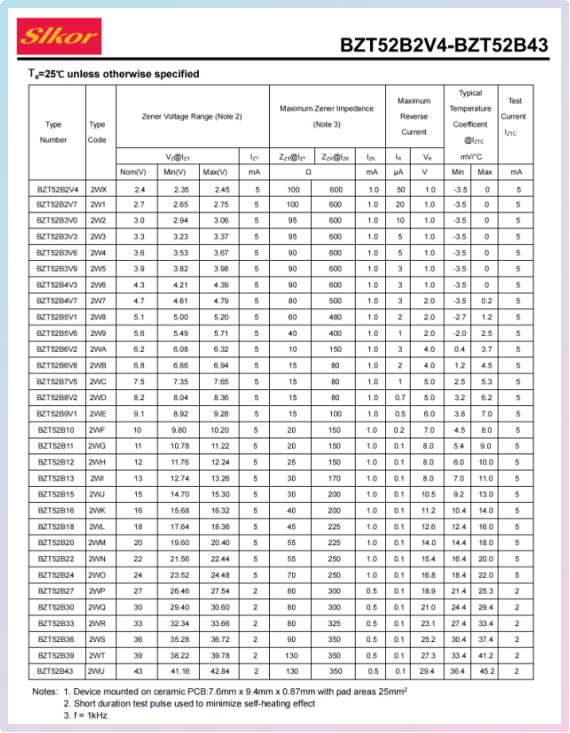

Parameters of Slkor Voltage Regulator Diode BZT52B24

Key Applications of BZT52B24 Voltage Regulator Diode in LED Driver Circuits

In today's increasingly popular LED lighting and display technologies, the design of LED driver circuits holds significant importance. High-performance devices like the BZT52B24 voltage regulator diode play a crucial role in these circuits.

Firstly, the primary function of the BZT52B24 is to stabilize voltage within the circuit. In LED driver circuits, voltage stability directly impacts LED luminosity and lifespan. With its 24V nominal regulation and ±5% high accuracy, the BZT52B24 ensures that the voltage remains constant, thereby guaranteeing stable and consistent LED illumination.

Secondly, the voltage regulator diode contributes to brightness control in LEDs. By adjusting its operational state, engineers can indirectly control the current passing through the LEDs, achieving precise brightness adjustments. This method not only simplifies brightness control but also extends the LED lifespan effectively.

Moreover, the BZT52B24's excellent power handling capabilities and extremely low reverse current enable it to support significant operational loads in LED driver circuits while consuming minimal power during idle periods, thereby enhancing overall circuit efficiency.

Most importantly, in LED driver circuits, the voltage regulator diode acts as a safeguard against voltage fluctuations. It responds swiftly to abnormal voltage fluctuations by adjusting its impedance to stabilize circuit voltage, thus protecting LEDs and other circuit components from potential damage.
