Introduction:

The MM5Z10V is a versatile and reliable voltage regulator that offers excellent performance and stability. With a VZTyp rating of 10V, a wide VZ range of 9.4V to 10.6V, a maximum power dissipation (PD) of 200mW, an ultra-low reverse current (Ir) of 100nA at 7V, and a low dynamic impedance (Zzt) of 20Ω, this component is an ideal choice for various electronic applications requiring voltage regulation.

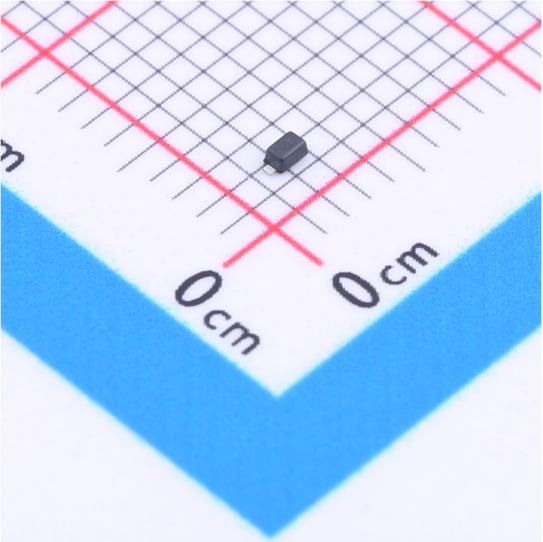

Slkor Voltage Regulator Diode MM5Z10V product photo

Key points:

Highly Stable VZ Range:

● VZTyp rating of 10V

● Wide VZ range of 9.4V to 10.6V

● Ensures stable and consistent voltage output

Efficient Power Dissipation:

● PD rating of 200mW

● Handles moderate to high power levels without compromising performance

● Prevents overheating issues

Ultra-Low Reverse Current:

● Ir of only 100nA at 7V

● Minimal power loss and improved efficiency

● Enhances component's reliability and lifespan

Low Dynamic Impedance:

● Zzt of 20Ω

● Maintains stable voltage output under varying load conditions

● Prevents adverse effects on performance and reliability

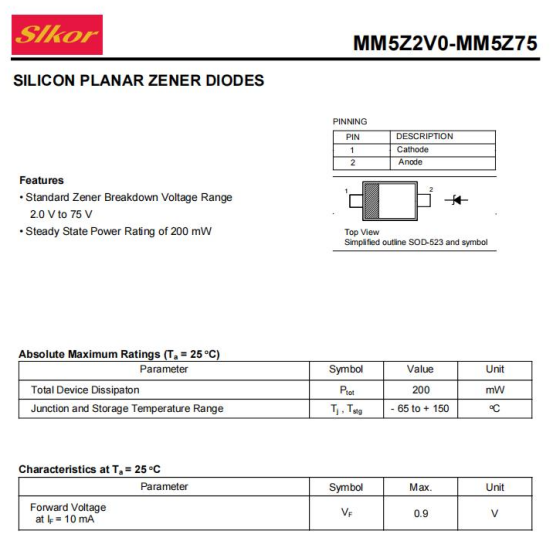

Slkor Zener diode MM5Z10V specification

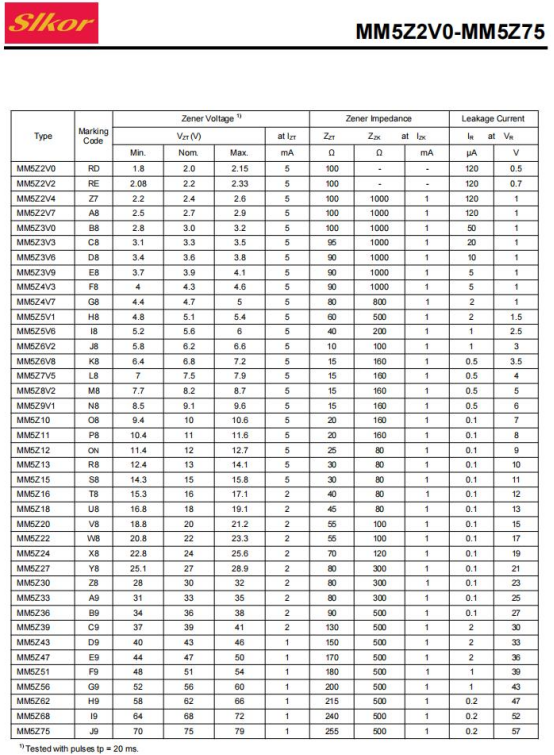

Parameters of Slkor Zener diode MM5Z10V

Conclusion: The MM5Z10V is a high-quality voltage regulator that offers impressive features and performance. Its wide VZ range, efficient power dissipation, ultra-low reverse current, and low dynamic impedance make it an excellent choice for a variety of electronic applications. Whether utilized in consumer electronics, industrial equipment, or any other electronic system requiring reliable voltage regulation, the MM5Z10V delivers stable and consistent power supply, ensuring optimal performance and longevity.

How to select a voltage regulator diode within a shorter period of time?

you can consider the following key steps:

Determine the voltage regulation range: Firstly, it is necessary to clarify the voltage range in the circuit and the stable voltage value that the voltage regulator diode needs to maintain.

Determine the voltage regulation current: Consider the rated current range in the circuit to ensure that the selected voltage regulator diode can provide stable voltage within this range.

Calculate power dissipation: Calculate the required power dissipation based on the product of voltage and current. Note that excessive power dissipation can cause the diode to overheat, so it is important to choose a model that can withstand the corresponding power dissipation.

Consider the operating frequency: Ensure that the selected voltage regulator diode can adapt to the operating frequency of your circuit. If the operating frequency is high, you may need to choose a model with a higher frequency response.

Select the packaging method: Choose an appropriate packaging method based on your application scenario and installation requirements.

Consult product manuals and specifications: Refer to the product manuals and specifications of different models of voltage regulator diodes to understand their detailed parameters, characteristics, advantages, and disadvantages.

Refer to actual cases and application experience: Cases and experience can help you better understand the applicable range and performance of different models of voltage regulator diodes.

Here are some additional considerations:

Reverse leakage current: Some voltage regulator diodes may generate leakage current under reverse voltage. If your application has strict requirements for reverse leakage current, you need to choose a model with low reverse leakage current.

Temperature characteristics: The voltage regulation performance of the diode may be affected by temperature. If your application needs to work within a wide temperature range, you should choose a model with good temperature characteristics.

Noise and ripple: Some voltage regulator diodes may generate noise or ripple during the regulation process. If your application has strict requirements for noise and ripple, you need to choose a model with low noise and low ripple.

If possible, it is recommended to communicate with suppliers or technical support teams such as SLKOR before making a selection to ensure that the chosen model can meet your application requirements.
